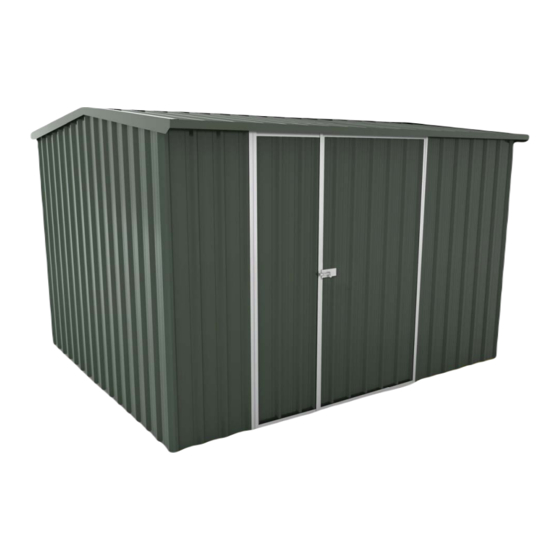

- Page 1 ASSEMBLY INSTRUCTIONS SG2525 BASE SIZE: 2.520m x 2.520m...
-
Page 3: Before You Start
CONGRATULATIONS ON PURCHASING A DURATUF SENTRY SHED. BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS BEFORE YOU START: Read all instructions carefully Identify all parts and check quantities against parts list Select a level site ... - Page 4 SG2525 PARTS LIST DESCRIPTION DIAGRAM DESCRIPTION DIAGRAM CLADDING FLASHINGS CHECKED CHECKED Front/Back Wall Door Side 1.850 m 1.810 m Gable Wall Angled Door Jamb 1.880 m (Measurement along 1.850 m centre of sheet) Gable Wall Angled Door Brace 1.940 m (Measurement along 1.160 m...
-
Page 5: Parts Location
PARTS LOCATION Ridge Flashings - x 2 Roof Sheets Barge Flashing Spouting Ridge Beam Back Wall Sheets Jack Stud Top Plate Side Top Plate Back Top Plate Front Front Wall Sheets Door Brace Door Sheets Side Wall Sheets Door Jambs Padbolt Support Bottom Plate Side Door Side Flashing... - Page 6 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
- Page 7 ASSEMBLE DOOR SELECT: 2 x 1.810 m Door Sheets (Narrow) 2 x 0.945 m Door Top/Bottom Flashings 2 x 1.810 m Door Side Flashings 3 x Hinges 1 x Padbolt Support Flashing 2 x 1.160 m Door Brace Flashings 54 x Rivets fig.1 STEP 1: ...
- Page 8 ASSEMBLE SIDE PANELS SELECT: IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER BASE PLATE –READ THE FOLLOWING; 4 x 1.880 m Gable Wall Sheets (Angled) 4 x 1.940 m Gable Wall Sheets (Angled) For sheds with Raised Base Plate option only (see page 5), deduct 2 x 2.000 m Gable Wall Sheets (Angled) 30mm from measurement shown between Top and Bottom Plates on 2 x 2.520 m Top Plates (Red)
- Page 9 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 5 x 1.850m Wall Sheets For sheds with Raised Base Plate option only (see page 5), deduct 1 x 2.520 m Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 2.520 m Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...
- Page 10 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 3 x 1.850 Wall Sheets For sheds with Raised Base Plate option only (see page 5), deduct 1 x 2.520 Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 2.520 Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate 2 x 1.850 Door Jamb Flashings...
-
Page 11: Wall Panel Assembly
WALL PANEL ASSEMBLY SELECT: SIDE 4 x Pre-made Wall Panels OVERLAPS 16 x 40mm Screws BACK 16 x Rivets TOP PLATE BACK WALL STEP 1: Stand the Back Panel and the Side Panel BOTTOM PLATE up using someone to support the panels SIDE WALL while they are screwed together. -
Page 12: Roof Assembly
ROOF ASSEMBLY SELECT: IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR ROOF PANEL Assemble as below, making sure that the Clear Roof Sheets over- 10 x 1.350 m Roof Sheets lap the standard roof sheets on both sides. 2 x 2.555 m Spouting The Clear Roof Panel must be secured to the Top Plate and the 4 x 1.350 m Barges Ridge Beam. - Page 13 ROOF ASSEMBLY CONT... STEP 3: TOP PLATE Position 1 x roof sheet so that the top of the sheet is at the BACK WALL centre of the Ridge Beam and the side of the sheet over BOTTOM PLATE hangs the end of the Ridge Beam and the Top Plate by SIDE SIDE 15mm.
- Page 14 Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.
-
Page 16: Year Warranty
20 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Sentry shed will not rust within 20 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
