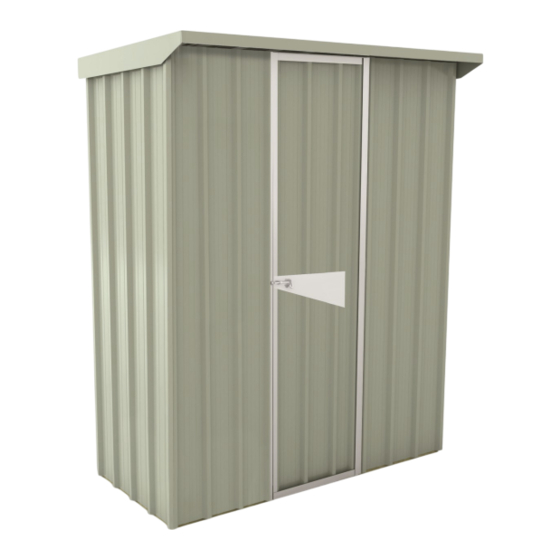

Duratuf Sentry Shed SL1507 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Duratuf Manuals
  4. Outdoor Storage
  5. Sentry Shed SL1507
  6. Assembly instructions manual

Duratuf Sentry Shed SL1507 Assembly Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

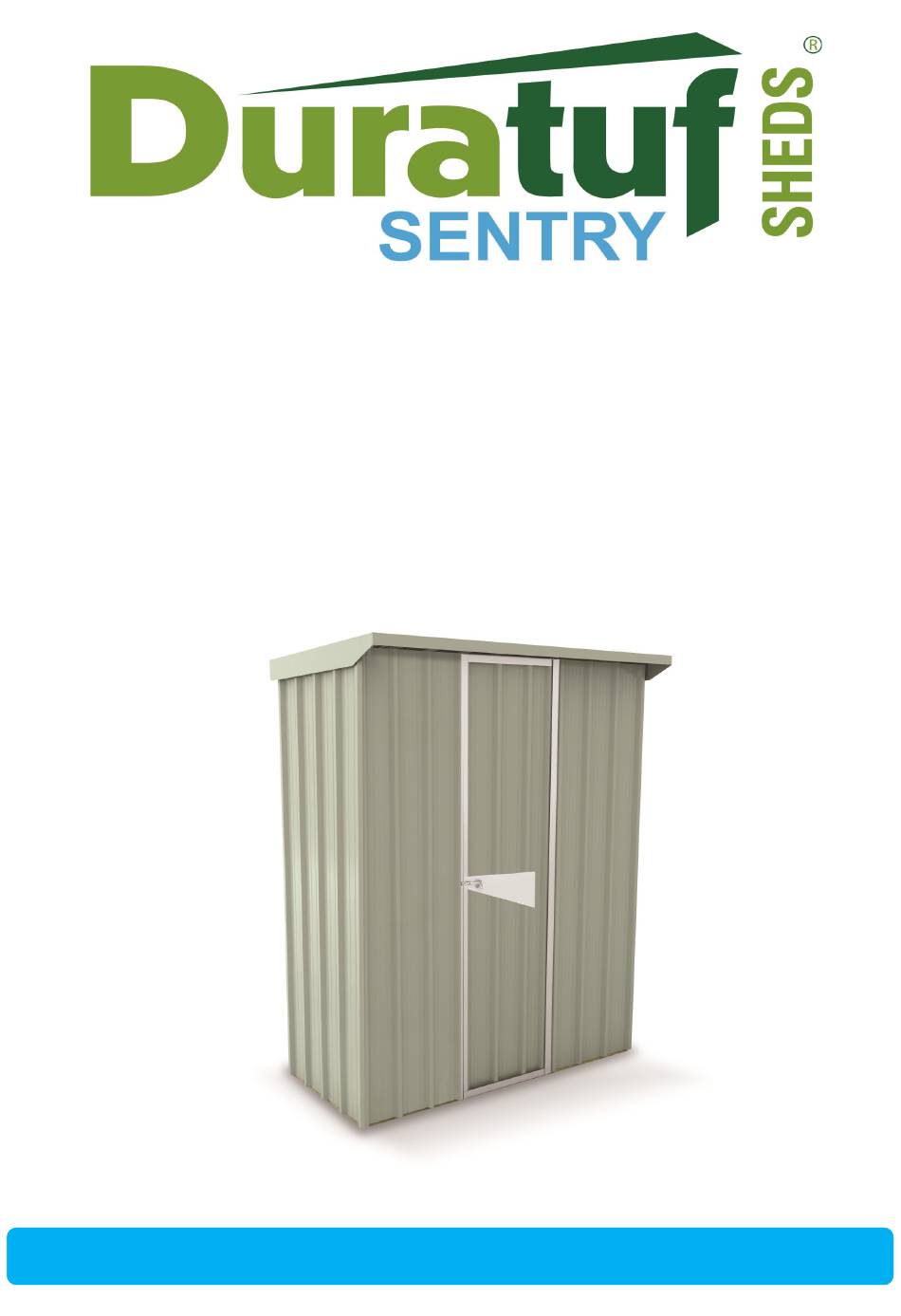

ASSEMBLY INSTRUCTIONS
SL1507
BASE SIZE: 1.520m x 0.685m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sentry Shed SL1507 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duratuf Sentry Shed SL1507

Summary of Contents for Duratuf Sentry Shed SL1507

  • Page 1 ASSEMBLY INSTRUCTIONS SL1507 BASE SIZE: 1.520m x 0.685m...

  • Page 2: Before You Start

    CONGRATULATIONS ON PURCHASING A DURATUF SENTRY SHED. BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS: BEFORE YOU START: • Read all instructions carefully • Identify all parts and check quantities against parts list • Select a level site •...
  • Page 3 SL1507 PARTS LIST CLADDING + FLASHING + HARDWARE PACK 1 DESCRIPTION DIAGRAM CHECKED Back Wall - 1.810m Side Wall 1 Pan Sheets- 1.810m Front Wall Narrow Sheets—1.850 Roof - 0.885m Door Sheet (Full Width) - 1.810m Door Sides - 1.810m Door Jamb - 1.850m Door Brace - 0.915m Barge - 0.885m...
  • Page 4 SL1507 PARTS LIST PACK 2 TIMBER PACK DESCRIPTION DIAGRAM Front/Back Bottom Plates - H4 (Green) 1.520 m Back Top Plate - H1 (Red) 1.520 m Front Top Plate - H1 (Red) 1.520 m Side Wall Bottom Plates - H4 (Green) 0.685 m Side Wall Top Plates - H1 (Red) 0.687m...

  • Page 5: Parts Location

    PARTS LOCATION Roof Sheets Barge Flashing Spouting Back Wall Sheets Top Plate Side Top Plate Back Top Plate Front Front Wall Sheet Door Side Flashing Door Brace Door Sheet Hinge Side Wall Sheets Bottom Plate Side Door Jambs Front Wall Narrow Sheet Padbolt Support Bottom Plate Front Door Top/Bottom...
  • Page 6 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
  • Page 7 ASSEMBLE DOOR SELECT: 1 x 1.810 m Door Sheet 2 x 0.545 m Door Top/Bottom Flashings 2 x 1.810 m Door Side Flashings 2 x 0.915 m Door Braces 1 x Padbolt Support Flashing 2 x Hinges 45 x Rivets fig.3 STEP 1: •...
  • Page 8 ASSEMBLE SIDE PANELS SELECT: IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER BASE PLATE –READ THE FOLLOWING; 2 x 1.810 Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 2 x 1.810 1 Pan Wall Sheets 30mm from measurement shown between Top and Bottom Plates on 2 x 0.685 Top Plates (Red) all wall panels, so cladding protrudes 20mm below bottom plate...
  • Page 9 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 3 x 1.810m Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 1.520 m Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 1.520 m Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...
  • Page 10 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 2 x 1.850 Narrow Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 1.520 Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 1.520 Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...

  • Page 11: Wall Panel Assembly

    WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels 12 x 40mm Screws 40mm X 2 SIDE 4 x 75mm Screws OVERLAPS BACK 16 x Rivets TOP PLATE BACK WALL STEP 1: • Stand the Back Panel and the Side Panel BOTTOM PLATE up using someone to support the panels SIDE...
  • Page 12 ROOF ASSEMBLY IMPORTANT Use 50mm Clouts only on outside ribs covered by Barge flashings. Predrill SELECT: holes using a 3.5mm drill bit. Use Roofing Screws on all other ribs. Ensure screws are not overtightened as this can damage the seals and 3 x 0.885 Roof Sheets cause the shed to leak.
  • Page 13 Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR • The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.

  • Page 15: Year Warranty

    20 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Sentry shed will not rust within 20 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
