ASSEMBLY INSTRUCTIONS
SG3020
BASE SIZE: 3.020m x 2.020m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG3020 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duratuf SG3020

Summary of Contents for Duratuf SG3020

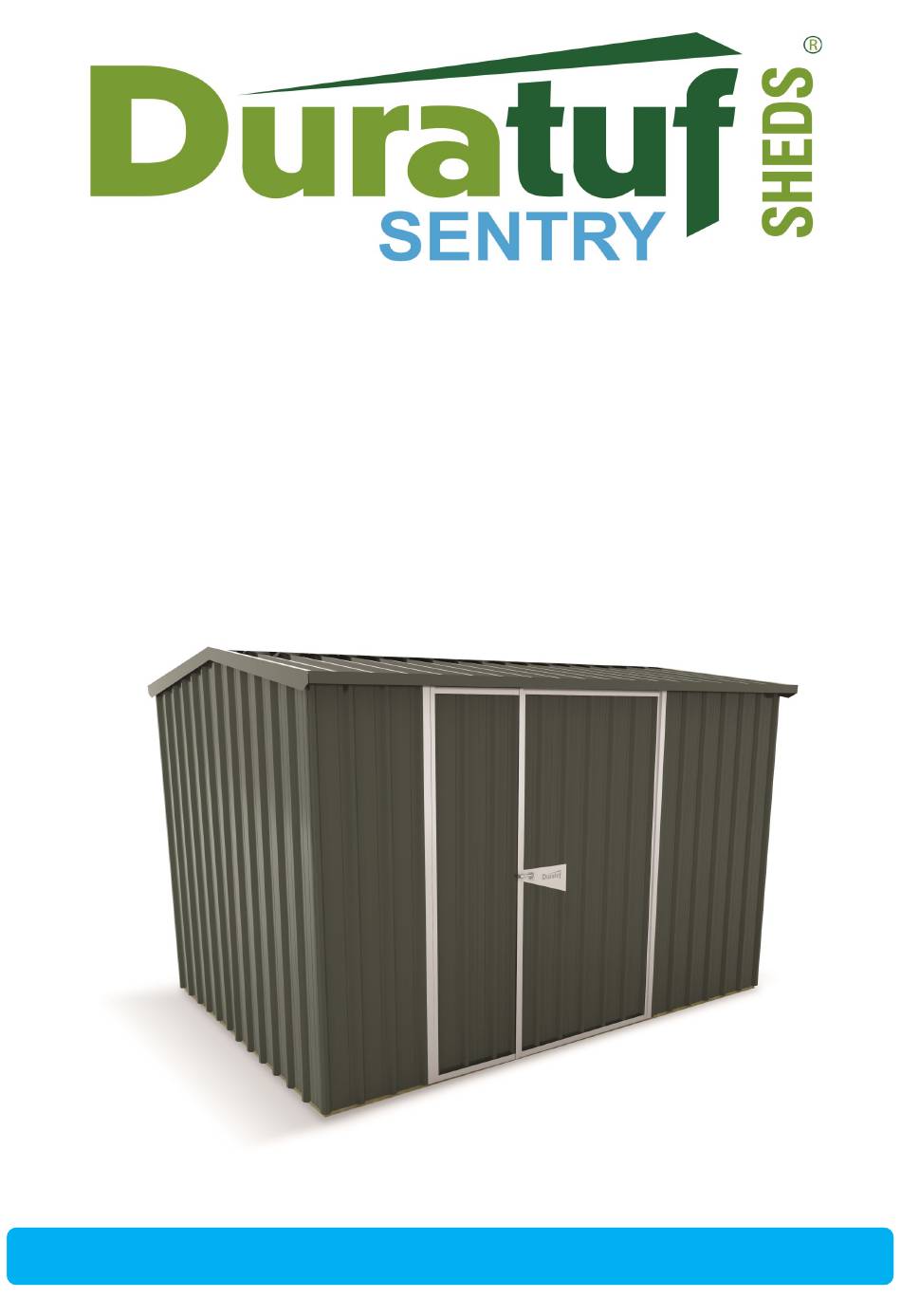

  • Page 1 ASSEMBLY INSTRUCTIONS SG3020 BASE SIZE: 3.020m x 2.020m...
  • Page 2 CHECK OUT OUR ASSEMBLY VIDEO...

  • Page 3: Before You Start

    CONGRATULATIONS ON PURCHASING A DURATUF SENTRY SHED. BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS: BEFORE YOU START: • Read all instructions carefully • Identify all parts and check quantities against parts list • Select a level site •...
  • Page 4 SG3020 PARTS LIST CLADDING + FLASHINGS + HARDWARE PACK 1 DESCRIPTION DIAGRAM CHECKED Front & Back Wall - 1.850m Side Wall Angle- 1.880m (Measurement along centre of sheet) Side Wall Angle- 1.940m (Measurement along centre of sheet) Roof - 2.200m Door Sheet Narrow - 1.810m...
  • Page 5 SG3020 FRAMING PACK PARTS LIST PACK 2 TIMBER PACK DESCRIPTION DIAGRAM Front/Back Bottom Plates - H4 (Green) 3.020 m Front & Back Top Plate - H1 (Red) 3.020 m Side Wall Bottom Plates - H4 (Green) 2.020 m Side Wall Top Plates - H1 (Red) 2.020 m...

  • Page 6: Parts Location

    PARTS LOCATION Ridge Cap— x 2 Roof Sheets Barge Flashing Spouting Ridge Beam Back Wall Sheets Jack Stud Top Plate Back Top Plate Side Top Plate Front Front Wall Sheets Door Brace Door Sheets Door Jambs Side Wall Sheets Padbolt Support Bottom Plate Side Bottom Plate Front Door Side Flashing...
  • Page 7 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
  • Page 8 ASSEMBLE DOOR SELECT: 3 x 1.810 m Door Sheets (Narrow) 2 x 0.945 m Door Top/Bottom Flashings 2 x 0.495 m Door Top/Bottom Flashings 4 x 1.810 m Door Side Flashings 2 x 1.160 m Door Brace Flashings 2 x 0.915 m Door Brace Flashings 1 x 1.810 m Weatherstrip fig.3 6 x Hinges...
  • Page 9 ASSEMBLE SIDE PANELS SELECT: IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER BASE PLATE –READ THE FOLLOWING; 4 x 1.880 m Gable Wall Sheets (Angled) 4 x 1.940 m Gable Wall Sheets (Angled) For sheds with Raised Base Plate option only (see page 6), deduct 2 x 2.020 m Top Plates (Red) 30mm from measurement shown between Top and Bottom Plates on 2 x 2.020 m Bottom Plates (Green)
  • Page 10 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 6 x 1.850m Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 3.020 m Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 3.020 m Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...
  • Page 11 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 3 x 1.850 Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 3.020 Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 3.020 Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate 2 x 1.850 Door Jamb Flashings...

  • Page 12: Wall Panel Assembly

    WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels SIDE OVERLAPS 16 x 40mm Screws BACK 16 x Rivets TOP PLATE BACK WALL STEP 1: • Stand the Back Panel and the Side Panel BOTTOM PLATE up using someone to support the panels SIDE while they are screwed together.

  • Page 13: Roof Assembly

    ROOF ASSEMBLY SELECT: IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR ROOF PANEL 6 x 2.200 m Roof Sheets Assemble as below, making sure that the Clear Roof Sheets 2 x 3.055 m Spouting overlap the standard roof sheets on both sides. 4 x 1.102 m Barges 2 x 1.800 m Ridge Caps The Clear Roof Panel must be secured to the Top Plate and the 1 x 3.020 m Ridge Beam...
  • Page 14 ROOF ASSEMBLY CONT... IMPORTANT Use 50mm Clouts only on ribs covered by flashings, shown in fig.2. Predrill holes using a 3.5mm drill bit. Use Roofing Screws on all other ribs and pans. STEP 3: Ensure screws are not overtightened as this can damage the seals and cause the shed to leak.
  • Page 15 Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR • The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.

  • Page 16: Year Warranty

    20 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Sentry shed will not rust within 20 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
