Summary of Contents for Duratuf Sentry Sheds SL1515

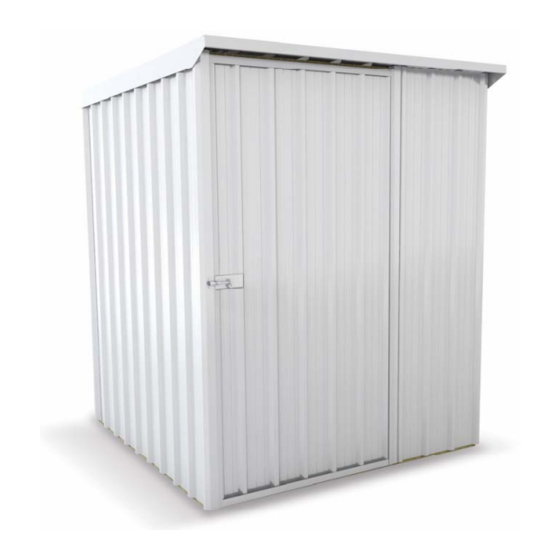

- Page 1 ASSEMBLY INSTRUCTIONS SL1515 BASE SIZE: 1.520m x 1.520m...
- Page 3 CONGRATULATIONS ON PURCHASING A DURATUF SENTRY SHED. BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS BEFORE YOU START: Read all instructions carefully Identify all parts and check quantities against parts list Select a level site ...
- Page 4 SL1515 PARTS LIST DESCRIPTION DIAGRAM DESCRIPTION DIAGRAM CLADDING FLASHINGS CHECKED CHECKED Front Wall Door Top/Bottom 1.890 m 0.945 m Back Wall Door Side 1.850 m 1.850 m Side Wall Door Jamb 1.850 m 1.890 m Roof Corner Door Jamb 1.720 m 1.890 m Door 3/4 Sheet Door Brace...
- Page 5 PARTS LOCATION Roof Sheets Barge Flashing Spouting Back Wall Sheets Top Plate Side Top Plate Back Top Plate Front Front Wall Sheet Door Brace Door Sheets Hinge Door Jambs Side Wall Sheets Bottom Plate Side Padbolt Support Flashing Door Top/Bottom Bottom Plate Front Door Side Flashings QUICK OVERVIEW...
- Page 6 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
- Page 7 ASSEMBLE DOOR SELECT: 2 x 1.850 m Door Sheets (Narrow) 2 x 0.945 m Door Top/Bottom Flashings 2 x 1.850 m Door Side Flashings 3 x Hinges 1 x Padbolt Support Flashing 2 x 1.160 m Door Brace Flashings 54 x Rivets fig.1 STEP 1: ...
- Page 8 ASSEMBLE SIDE PANELS IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 6 x 1850 Wall Sheets For sheds with Raised Base Plate option only (see page 5), deduct 2 x 1.520 Top Plates (Red) 30mm from measurement shown between Top and Bottom Plates on 2 x 1.520 Bottom Plates (Green) all wall panels, so cladding protrudes 20mm below bottom plate 72 x 30mm Galv Clouts...
- Page 9 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 3 x 1.850m Wall Sheets For sheds with Raised Base Plate option only (see page 5), deduct 1 x 1.520 m Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 1.520 m Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...
- Page 10 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 1 x 1.890 Wall Sheet For sheds with Raised Base Plate option only (see page 5), deduct 1 x 1.520 Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 1.520 Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate 1 x 1.890 Door Jamb Flashing...
- Page 11 WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels 40mm X 2 12 x 40mm Screws SIDE OVERLAPS 4 x 75mm Screws BACK 16 x Rivets TOP PLATE BACK WALL STEP 1: BOTTOM PLATE Stand the Back Panel and the Side Panel up using someone to support the panels SIDE 40mm X 2...
- Page 12 ROOF ASSEMBLY SELECT: IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR ROOF PANEL 3 x 1.720 Roof Sheets Assemble as below, making sure that the Clear Roof Sheets 1 x 1.555 Spouting overlap the standard roof sheets on both sides. 2 x 1.720 Barges 20 x 40mm Weatherseal Nails The Clear Roof Panel must be secured to the front and back 22 x Rivets...
- Page 13 Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.
- Page 15 20 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Sentry shed will not rust within 20 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
