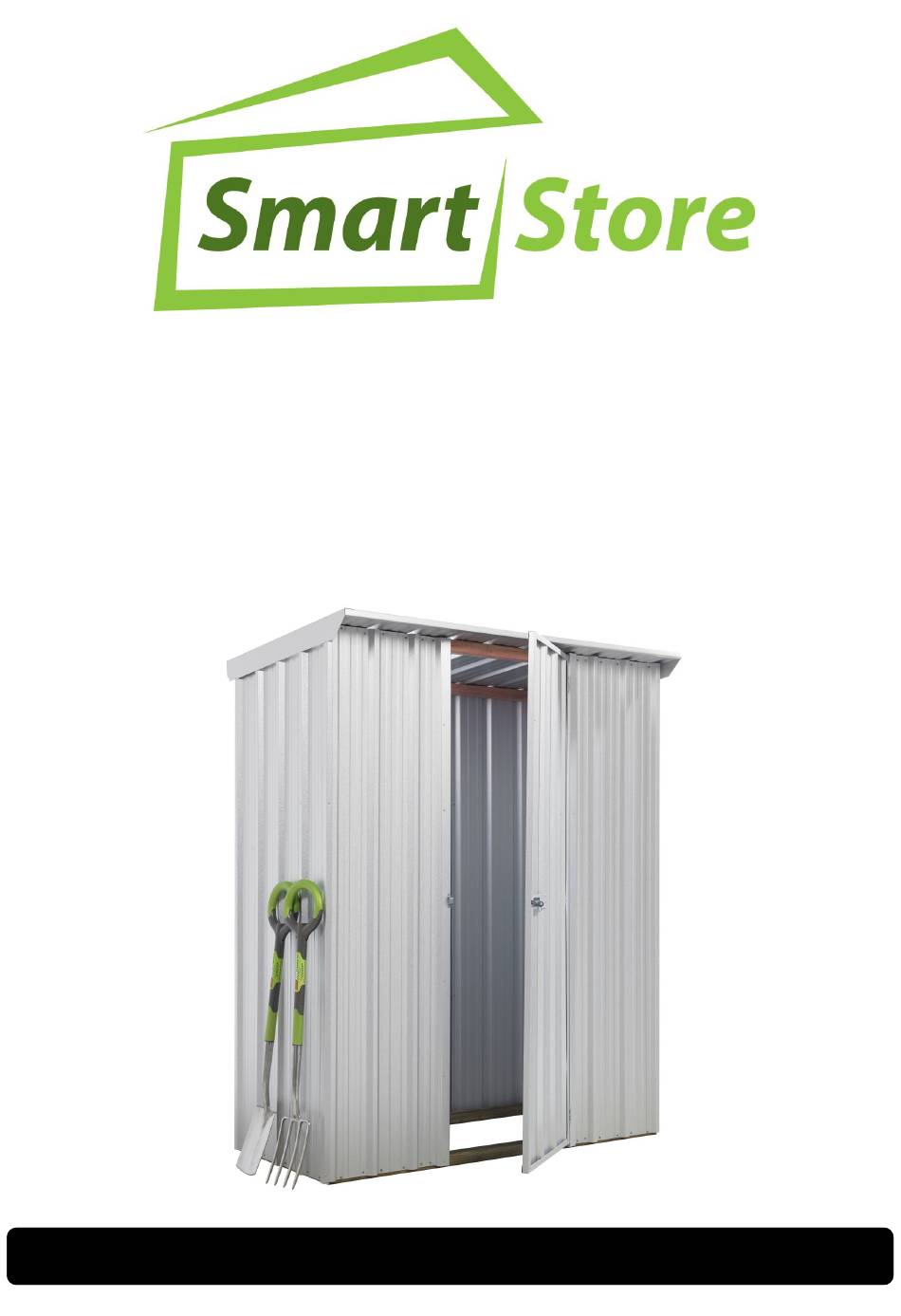

- Page 1 ASSEMBLY INSTRUCTIONS SS1507 BASE SIZE: 1.520m x 0.685m...
- Page 3 CONGRATULATIONS ON PURCHASING A DURATUF SMARTSTORE SHED. BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS BEFORE YOU START: Read all instructions carefully Identify all parts and check quantities against parts list Select a level site ...
- Page 4 SS1507 PARTS LIST DESCRIPTION DIAGRAM DESCRIPTION DIAGRAM CLADDING FLASHINGS CHECKED CHECKED Wall Sheets Door Side 1.810 m 1.810 m Front Wall Unpunched Door Jamb 3/4 Sheets 1.850 m 1.850 m Side Wall 1/2 Sheets Door Brace 1.810 m 0.980 m Roof Barge 0.885 m...
- Page 5 PARTS LOCATION Roof Sheets Barge Flashing Spouting Back Wall Sheets Top Plate Side Top Plate Back Top Plate Front Front Wall Sheet Door Side Flashing Door Brace Door Sheet Hinge Side Wall Sheets Bottom Plate Side Door Jambs Front 3/4 Wall Sheet Padbolt Support Bottom Plate Front Door Top/Bottom Channel...
- Page 6 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
- Page 7 ASSEMBLE DOOR SELECT: 1 x 1.810 m Door Sheet 2 x 0.545 m Door Top/Bottom Channels 2 x 1.810 m Door Side Flashings 2 x 0.980 m Door Braces 1 x Padbolt Support Flashing 2 x Hinges 32 x Rivets fig.1 fig.2 80mm...
- Page 8 ASSEMBLE SIDE PANELS SELECT: IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER BASE PLATE –READ THE FOLLOWING; 2 x 1.810 Wall Sheets For sheds with Raised Base Plate option only (see page 5), deduct 2 x 1.810 1/2 Wall Sheets 30mm from measurement shown between Top and Bottom Plates on 2 x 0.685 Top Plates (Red) all wall panels, so cladding protrudes 20mm below bottom plate 2 x 0.685 Bottom Plates (Green)
- Page 9 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 3 x 1.810m Wall Sheets For sheds with Raised Base Plate option only (see page 5), deduct 1 x 1.520 m Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 1.520 m Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...
- Page 10 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 2 x 1.850 3/4 Wall Sheets For sheds with Raised Base Plate option only (see page 5), deduct 1 x 1.520 Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 1.520 Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...
- Page 11 WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels 12 x 40mm Screws 40mm X 2 SIDE 4 x 75mm Screws OVERLAPS BACK 16 x Rivets TOP PLATE BACK WALL STEP 1: BOTTOM PLATE Stand the Back Panel and the Side Panel up using someone to support the panels SIDE 40mm X 2...
- Page 12 ROOF ASSEMBLY IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR SELECT: ROOF PANEL Assemble as below, making sure that the Clear Roof Sheets 3 x 0.885 Roof Sheets overlap the standard roof sheets on both sides. 1 x 1.550 Spouting The Clear Roof Panel must be secured to the front and back 2 x 0.885 Barges Top Plates.
- Page 13 Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.
- Page 15 15 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Smartstore shed will not rust within 15 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
