Canature WaterGroup Tannins 89 TLC Owner's Manual

Reduction system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

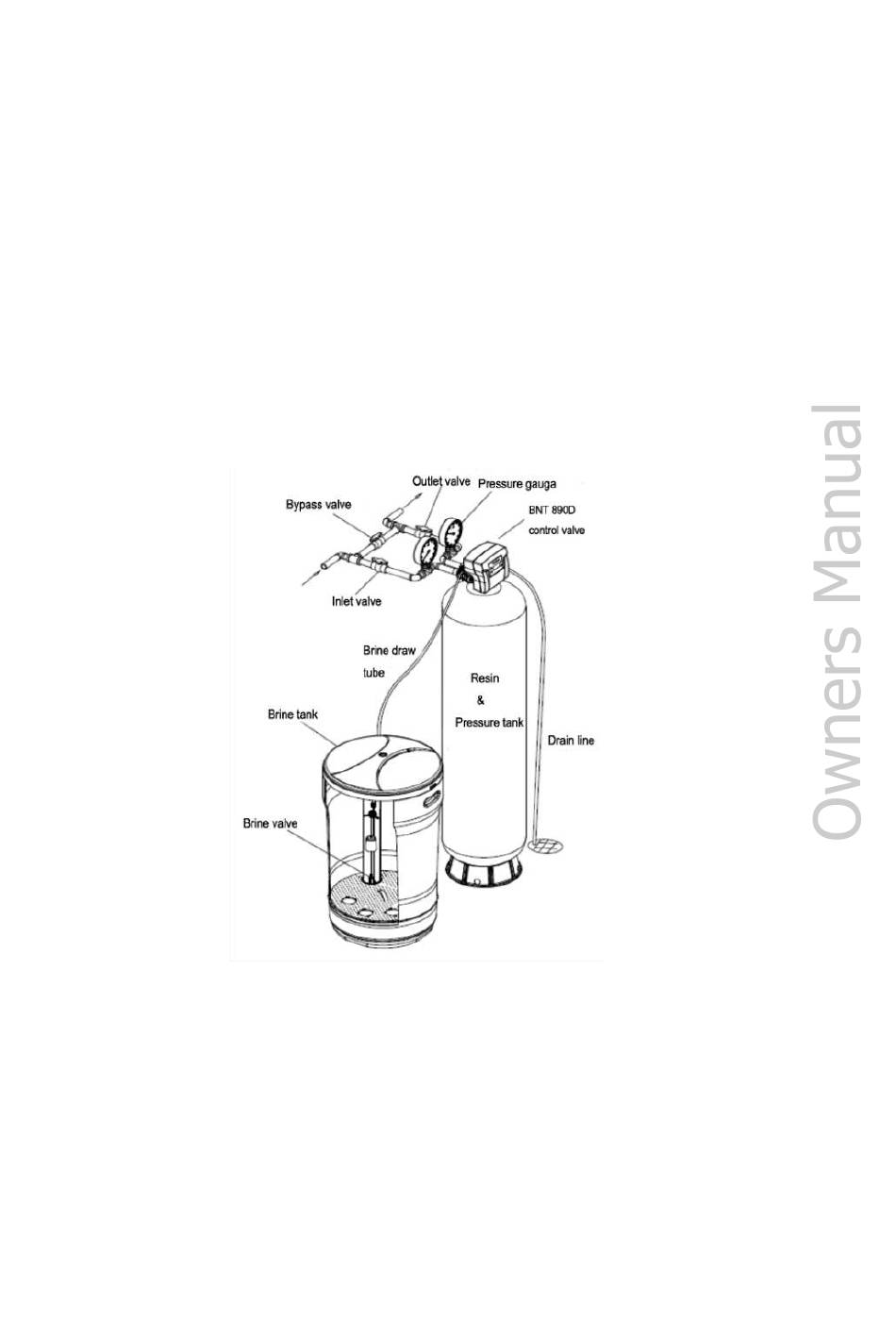

IMPORTANT—PLEASE REFER TO THE PICTURE BELOW ON INLET/OUTLET SIDE OF THE
VALVE
1. Read all instructions carefully before operation.
2. Avoid pinched o-rings during installation by applying (provided with install kit) NSF certified
lubricant to all seals.
3. This system is not intended for treating water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
REVISION #
0
REVISION DATE May 4,2015
54616
89 TLC
Tannins
Reduction System
Canadian Head Office
655 Park St.
Regina, SK S4N 5N1
U.S. Head Office
8437 10th Avenue North
Golden Valley, MN 55427

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tannins 89 TLC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Canature WaterGroup Tannins 89 TLC

Summary of Contents for Canature WaterGroup Tannins 89 TLC

  • Page 1 89 TLC Tannins Reduction System IMPORTANT—PLEASE REFER TO THE PICTURE BELOW ON INLET/OUTLET SIDE OF THE VALVE 1. Read all instructions carefully before operation. 2. Avoid pinched o-rings during installation by applying (provided with install kit) NSF certified lubricant to all seals. 3.

  • Page 2: Unpacking Inspection

    Table of Contents PAGE Unpacking / Inspection Safety Guide Proper Installation Specification Before Starting Installation Installation Instructions System Start Up Programming Instructions About The System Maintenance Sanitizing Procedure Main Repair Parts Trouble Shooting Warranty Unpacking / Inspection Be sure to check the entire softener for any shipping damage or parts loss. Also note dam- age to the shipping cartons.

  • Page 3: Proper Installation

    Proper Installation This water softening system must be properly installed and located in accordance with the Installation Instructions before it is used. • Do not install or store where it will not be psi, night time pressure may exceed the exposed to temperatures below freezing or maximum.

  • Page 4: Specifications

    Specifications Specifications 585TLC-150 585TLC-200 585TLC-300 89TLC-150 89TLC-200 89TLC-300 Factory Settings - High Capacity Salt Used - Per Regeneration 18.0 lbs 24.0 lbs 36.0 lbs Water Used - Regeneration 74.4 gal 101.4 gal 166 gal Resin Quantity - Cubic Feet 1.5 ft 2.0 ft 3.0 ft Tank Size...
  • Page 5 Where To Install The Softener • Place the softener as close as possible to is least likely to occur if a leak develops. the pressure tank (well system) or water The manufacturer will not repair or pay for meter (city water). water damage.

  • Page 6: Installation Instructions

    Installation Instructions 1. If your hot water tank is electric, turn off the power to it to avoid damage to the element in the tank. 2. If you have a private well, turn the power off to the pump and then shut off the main wa- ter shut off valve.
  • Page 7 Installation...
  • Page 8 Note: As the picture shows, connect the inlet and outlet according to the arrow direction which seeing from the top view, where you can see the mark of “Up flow” or “Down flow” on the standard inlet and outlet connector assembly. The installation of 1“...
  • Page 9 Softener commissioning 1. This water softening system must be properly installed（check the inlet and outlet, brine line, drain line , power supply）and located in accordance with the installation instruc- tions before commissioning and putting into operation. 2. The control panel using four touching keys, don’t operate the keys with thick gloves. 3.

  • Page 10: Button Configuration

    Button Configuration MENU Flow Rate: 24.5 GPM 18-Apr-2015 10:35AM Remain: 1,280 GAL Capacity: 1,500 GAL Key Pad Configuration MENU This function is to enter the basic set up information required at the time of installation. This function is to accept the values if changed and advance to the next page in the menu. These buttons are used to increase or decrease the value of the settings while in the pro- + / - gramming mode.
  • Page 11 User Settings (Level I) Press MENU key. Press + or - to change menu option. Press SET to enter. Press + or - to change value. Press SET to accept. CAUTION: The values in this page are for illus- tration purpose and can be changed by the factory without notice.
  • Page 12 Manual Regeneration Press “■” key to initiate a manual regeneration, the regeneration steps will be different according to different valve type： • The regeneration steps of DOWN FLOW valve：backwash、brine +slow rinse、fast rinse、service +refill; • The regeneration steps of UP FLOW valve：brine +slow rinse、backwash、fast rinse、 service +refill;...
  • Page 13 Press any key will stop brine +slow rinse, and the valve will advance to the next regeneration process, Fast Rinse, the screen will display: Press any key will stop fast rinse, and the valve will advance to the next regeneration process, Refill, the screen will display: Press any key will stop service + refill, and the valve will advance to the next regeneration process: service...
  • Page 14 Controller assembly parts list: Part description Controller front cover assembly 89 PCB PCB absorb shock foam PCB fix screws 85HE mounting plate Screws 85 drive gear 11 12 Connect screw 85HE main gear Brine gear screw Locating wheel assembly： three options Down flow wheel Up flow wheel Filter wheel...
  • Page 15 ： Parts list of Standard connection assembly Part description Part description Big O-ring of Adaptor 89 secure clip coupling Adaptor coupling of 89 89 valve connector control valve Small O-ring of adaptor Connector O-ring coupling...
  • Page 16 ： Parts list of control valve body Part description 89 valve body 95 secure clip DLFC assembly：optional 1S、2S、3S、4S、 1#、3#、4#、5#、6# Drain elbow O-ring Drain elbow： 1/2”、 3/4” Brine valve injector stem assembly Spacer and seal assembly Three options of piston Down flow piston Up flow piston Filter piston 16 17 18...
  • Page 17 Three options of piston Down flow piston Up flow piston Filter piston Piston retainer End plug Piston pin Piston rod End plug retainer End plug retainer screws Brine line adaptor assem- bly：optional BLFC： 0.7gpm BLFC：0.95gpm Injector assembly： optional grey、purple、red、 white、blue、yellow Injector cover O-ring Injector cover Injector cover screws...

  • Page 18: Sanitizing Procedure

    Care of Your System To retain the attractive appearance of your new water softener, clean occasionally with mild soap solution. Do not use abrasive cleaners, ammonia or solvents. Never subject your softener to freezing or to temperatures above 100°F. Resin Cleaner An approved resin cleaner must be used on a regular basis if your water supply contains iron.

  • Page 19: Warranty

    Five Year Limited Warranty Canature WaterGroup will replace the salt tank or cabinet tank, the fibreglass mineral tank, the ion exchange resin, and valve parts provided the failure is due to a defect in material or workmanship and not the result of damage from any of the conditions described in the gen- eral conditions of this warranty.
