FOLLOWTHE INSTALLATION INSTRUCTIONS CAREFULLY. FAILURE TO
INSTALL THE UNIT PROPERLY VOIDS THE WARRANTY. BEFORE YOU
BEGIN INSTALLATION, READ THIS ENTIRE MANUAL. THEN, OBTAIN ALL
THE MATERIALS AND TOOLS
1. Avoid pinched O-rings during installation by applying (provided with install kit) NSF
certified lubricant to all seals.
2. This system is not intended for treating water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the system.
REVISION #
1
REVISION DATE DEC 2017
54815

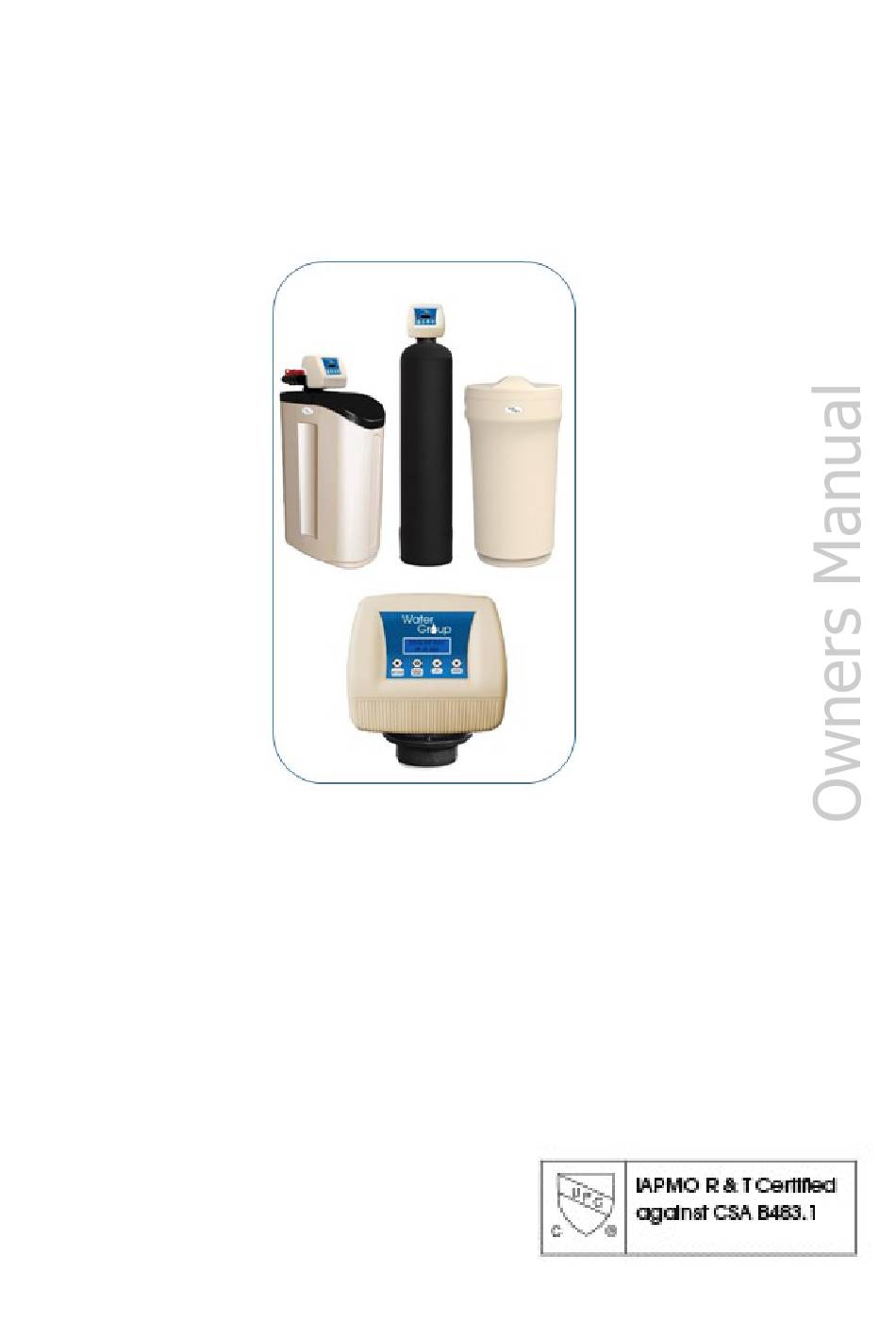

WG185DF High Efficiency
Water Softener
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Canature WaterGroup 185DF Series
Summary of Contents for Canature WaterGroup 185DF Series
- Page 1 WG185DF High Efficiency Water Softener FOLLOWTHE INSTALLATION INSTRUCTIONS CAREFULLY. FAILURE TO INSTALL THE UNIT PROPERLY VOIDS THE WARRANTY. BEFORE YOU BEGIN INSTALLATION, READ THIS ENTIRE MANUAL. THEN, OBTAIN ALL THE MATERIALS AND TOOLS 1. Avoid pinched O-rings during installation by applying (provided with install kit) NSF certified lubricant to all seals.
-
Page 2: Unpacking Inspection
Table of Contents PAGE Unpacking / Inspection Safety Guide Proper Installation Specification Before Starting Installation Installation Instructions System Start Up Programming Instructions About The System Maintenance Sanitizing Procedure Main Repair Parts Trouble Shooting Warranty Unpacking / Inspection Be sure to check the entire softener for any shipping damage or parts loss. Also note dam- age to the shipping cartons. -
Page 3: Proper Installation
Proper Installation This water softening system must be properly installed and located in accordance with the Installation Instructions before it is used or the warranty will be void. Do not install or store where it will be maximum. Use a pressure reducing valve ... -
Page 4: Specifications And Performance Data Sheet
Specifications and Performance Data Sheet WG185DF-24C WG185DF-32C WG185DF-24 WG185DF-32 WG185DF-40 WG185DF-64 WG185DF-96 Specifications 2110 2111 2112 2113 2114 2115 2116 Optional Settings - High Efficiency Salt Used - Per Regeneration 2.3 lbs 3.0 lbs 2.3 lbs 3.0 lbs 3.75 lbs 6.0 lbs 9.0 lbs Water Used - Regeneration... -
Page 5: How Your Water Conditioner Works
How Your Water Conditioner Works The principle behind water softening is simple chemistry. A water softener contains resin beads which hold electrically charged ions. When hard water passes through the softener, calcium and magnesium ions are attracted to the charged resin beads. It's the resulting re- moval of calcium and magnesium ions that produces soft water. -
Page 6: Installation Instructions
Installation Instructions 1. If your hot water tank is electric, turn off the power to it to avoid damage to the element in the tank. 2. If you have a private well, turn the power off to the pump and then shut off the main wa- ter shut off valve. - Page 7 Installation Twin Tank...
-
Page 8: System Start-Up
System Start-Up Key Pad Configuration SETTINGS This function is to enter the basic set up infor- mation required at the time of installation. MANUAL This function is to initiate an immediate or REGEN delayed manual regeneration. DOWN / Increase or decrease the value of the settings while in the programming mode. -
Page 9: Programming Instructions
Programming Instructions The factory setting for WATER TYPE is WELL / OTHER. Do not adjust this setting until after start-up is complete. If the setting is changed to MUNICIPAL before start-up, the back wash cycle will be skipped. CHANGE SETTINGS duced by 20% compared to the Settings To change settings press the... -
Page 10: Operation During A Power Failure
About The System Operation During A Power Failure In the event of a power failure, the valve will keep track of the time and day for 48 hours. The programmed settings are stored in a non-volatile memory and will not be lost during a power failure. -
Page 11: New Sounds
New Sounds You may notice new sounds as your water softener operates. The regeneration cycle lasts up to 180 minutes. During this time, you may hear water running intermittently to the drain. Regeneration Process and Precision Brining When the system capacity is near exhausted, a regeneration is necessary to restore the sys- tem to full capacity. -
Page 12: Manual Bypass
Manual Bypass In the case of emergency, such as an overflowing brine tank, you can isolate your water softener from the water supply using the bypass valve located at the back of the control. In normal operation the bypass is open with the on/off knobs in line with the inlet and outlet pipes. - Page 13 Cleaning or Replacing Injectors Sediment, salt and silt will restrict or clog the injector. A clean water supply and pure salt will prevent this from happening. The injector assembly is located on the right side of the control valve. This assembly is easy to clean.
- Page 14 Replacing Brine Line Flow Control (BLFC) TIP: Markings on the BLFC washer should face the direction as shown here. 1. Remove the red clip that secures the brine elbow. 2. Remove the BLFC holder from the elbow fitting. 3. Split the BLFC holder apart and remove the flow washer. 4.
-
Page 15: Care Of Your System
Care of Your System To retain the attractive appearance of your new water softener, clean occasionally with mild soap solution. Do not use abrasive cleaners, ammonia or solvents. Never subject your sof- tener to freezing or to temperatures above 100°F. Resin Cleaner An approved resin cleaner must be used on a regular basis if your water supply contains iron. - Page 16 Main Repair Parts - Connectors REPLACEMENT PARTS - CONNECTORS Replacement Part Number Part Description DWG # Quantity 60010020 3/4" NPT ELBOW 60010019 1" NPT STRAIGHT 60010023 3/4" NPT STRAIGHT 60010079 VALVE COUPLING INLET 60010101 VALVE COUPLING OUTLET (METER SIDE) 60010025 PLASTIC SECURE CLIP 60010046 BYPASS SS CLIP...
-
Page 17: Control Valve Exploded View
Control Valve Exploded View VALVE REPAIR PARTS LIST Replacement Replacement Part Description Part Description Part Number Part Number 60010127 INJECTOR SET #0000 BLACK 60010129 85HE UPFLOW PISTON ASSEMBLY 60010126 INJECTTOR SET #000 GREY 60010171 85HE DOWNFLOW PISTON ASSEMBLY 60010035 INJECTOR SET #00 VIOLET 60010130 85HE SEAL &... -
Page 18: Control Valve Parts List
Control Valve Parts List 185HE CONTROL VALVE (DOWNFLOW) Replacement MFG Part Number Part Description DWG # Quantity Part Number 5056087 Screw-M5x12(Hexagon) 5056088 Screw-M5x16(Hexagon With Washer) 5056047 End Plug Retainer 5031016 BNT85HE Piston Rod 5056097 Piston Pin 5031015 BNT85HE Quad Ring Plug Cover 5056070 Quad Ring 5031011... - Page 19 Power Head Exploded View...
-
Page 20: Power Head Parts List
Power Head Parts List 185HE POWER HEAD (DOWNFLOW) Replacement MFG Part Number Part Description DWG # Quantity Part Number 5056084 Screw-ST3.5X13 5010037 Screw-ST2.9X10 13000416 Screw-ST3.5X25 5031007 BNT85HE Piston Rod Guide Plate 5056510 Motor-12v/2rpm 5030014 Motor Power Cable 11700005 Wire Connector 5056098 Motor Pin 5031006... -
Page 21: Troubleshooting
Trouble Shooting Issue Possible Cause Possible Solution A. Unit fails to initiate a 1. No power supply. Check electrical service, fuse, etc. regeneration cycle. 2. Defective circuit board. Replace faulty parts. 3. Power failure. Reset time of day. 4. Defective meter. Replace turbine meter. -
Page 22: Warranty
For Parts and Availability, please contact the Dealer or Wholesaler you purchased this product from. Purchased from Canature WaterGroup Canada West: 855 Park Street Unit 1 Regina, SK S4N 6M1 Canada East: 490 Pinebush Rd Unit 1, Cambridge ON N1T 0A5...
