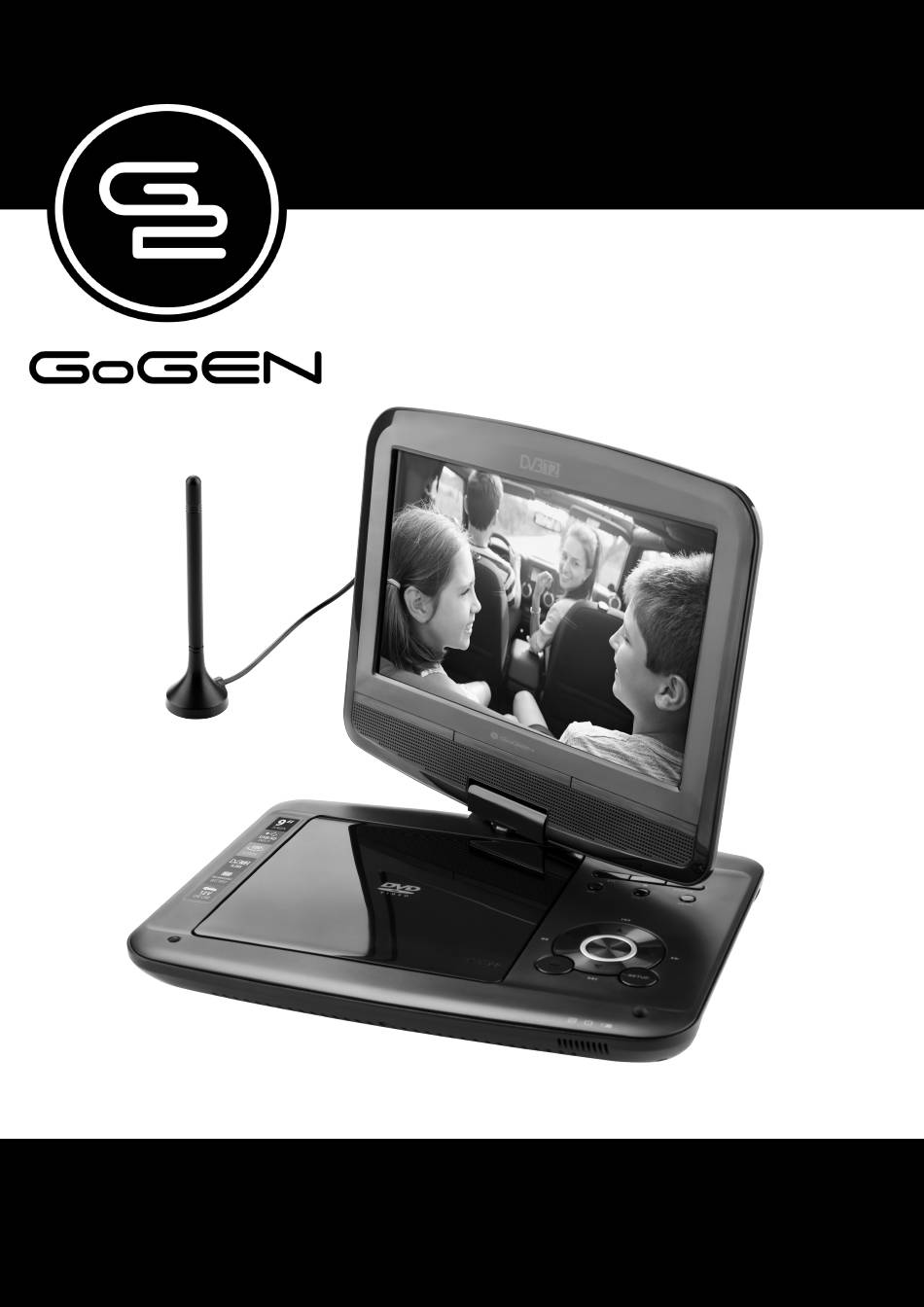

PDX 923 SUDVBT2
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDX 923 SUDVBT2 and is the answer not in the manual?

Questions and answers

Related Manuals for Gogen PDX 923 SUDVBT2

Summary of Contents for Gogen PDX 923 SUDVBT2

  • Page 1 PDX 923 SUDVBT2 USER MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Contents Table of Contents ........................ 2 Important Safety Instructions ..................... 3 Safety Precautions ......................4 Identification of Controls ....................5 Main Unit ..........................5 Remote control unit ....................... 6 SETUP Menu Setting ......................8 General Setup Page ......................8 Audio Setup Page ........................

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel. Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Warning: This digital video disc player employs a laser system. Use of controls,adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure. Warning: To prevent direct exposure to laser beam, do not open the enclosure. Visible laser radiation when open.

  • Page 5: Identification Of Controls

    IDENTIFICATION OF CONTROLS Main Unit  PLAY/ PAUSE 2. STOP 3. SOURCE 4. VOL- 5. VOL+ 6. MENU 7. ▲/▼/◄/►(up/down/right/left) Select an item in the menu.OK key con- firms menu selection. When playing,VCD,DVD,if available: ►: fast forward ◄: fast reverse ▲: previous track ▼: next track 8.

  • Page 6: Remote Control Unit

    IDENTIFICATION OF CONTROLS Remote control unit 1. SOURCE DVD/CARD/USB. 2. MUTE Disable Audio output. 3. 0-9 NUMBER BUTTON Selects numbered items in a menu. 4. DISPLAY To display the playtime and status information. 5. 10+ BUTTON In order to select a track 10 or greater, first press 10+, For example; select track 12, first press 10+, and then press number 2 button.
  • Page 7 11. VOL+ 23. VOL- Adjust volume 12. Forward Skip Go to next chapter/ track. 13. Reverse Skip Go to previous chapter/ track to the beginning. 14.  BUTTON Press  BUTTON allow skipping ahead at 5-level speed (X2->X4->X8->X16->X32->PLAY), press PLAY button return to normal playback. 15.

  • Page 8: Setup Menu Setting

    27. ZOOM : Use ZOOM to enlarge or shrink the video image. 1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture. 2. Each press of the ZOOM button changes the TV screen in the following sequence: 2X size ...

  • Page 9: Audio Setup Page

    • Closed Captions Closed captions are data that are hidden in the video signal of some discs.Before you select this function,please ensure that the disc contains closed captions information and your TV set also has this function. • Screen Saver This function is used to turn the screen saver On or Off.

  • Page 10: Video Setup Page

    • Dynamic Dynamic range compression. VIDEO SETUP PAGE • Video Setup Page Sharpness, Brightness, Contrast, Hue, Saturation:setting the video quality. PREFERENCE PAGE • Preference Page • TV Type Selecting the colour system that corresponds to your TV when AV outputs. This DVD Player is compatible with both NTSC and PAL.

  • Page 11: Password Setup Page

    PASSWORD SETUP PAGE • Password Setup Page • Password mode: Set password mode on/off. If set to off, change parental level will not check password. Password: select the menu password change page. OLD PASSWORD: Enter the OLD password, (Factory setting is 1369), and the cursor will jump automatically to NEW PASSWORD.

  • Page 12: Parameters And Specifications

    PARAMETERS AND SPECIFICATIONS Electronical parameters Item Standard requirement Power requirements : AC 100-240 V, 50/60 Hz Power consumption : <12 W Operating humidity : 5 % to 90 % VIDEO OUT : 1 Vp-p (75 Ω) Output AUDIO OUT : 1.4 Vrms (1 KHz, 0 dB) Audio : Speaker:1WX2,Headphones output System...

  • Page 13: First Time Installation

    FIRST TIME INSTALLATION After all connections have been made properly, switch on TV and makesure the receiver is connected to the Main Power. Press Power Button toswitch receiver on. If you are using the receiver for the firs time or restored to Factory Default, the Main Menu will appear on your TV screen.
  • Page 14 Set Favourite Program/s You can create a shortlist of favourite programs that you can easily access.Set Favourite TV or Radio program: 1) Select the preferred program then press the PAVOURITE button. A heart-shaped symbol will appear and the program is marked as a favourite. 2) Repeat the previous step to select more Favourite programs.
  • Page 15 EPG (ELECTRONIC PROGRAM GUIDE) The EPG is an on-screen TV guide that shows scheduled programs seven days in advance for every tuned channel. Press the EPG button on the Remote Control to access guide. You can use the UP/DOWN key to select the preferred program. If there is more than one page of information, use the BLUE button for page up and the YELLOW button for page down.
  • Page 16 TV format If the video does not appear correctly, you need to change the settings. This should match the most common setting for TVs in your country. [NTSC]: for NTSC system TV. [PAL]: for PAL system TV. CHANNEL SEARCH To access the menu,press MENU and select [Search Channel]. The Menu provides options o adjust the Search Channel settings.
  • Page 17 2) Press the RIGHT/LEFT key to select the channel frequency. 3) Press OK to start searching channels. If a channel is found, it is saved and added to the channels list. If channels cant be found, then exit the menu. Country Select your country of residence.
  • Page 18 OSD Language Select an OSD language. Audio Language Select the preferred audio language for watching TV channels.If the language is not available, the default program language will be used. Subtitle Language Select the preferred subtitle language. Digital Audio Set the desired audio format at the HDMI slot: PCM, Raw HDIM On, Raw HDMI Off, Off (if available).
  • Page 19 To access the Menu, press the Menu button and select USB. Multi-Media Switch to USB mode and plug in USB to view files. Photo Configure Set the parameters for viewing photographs. Movie Configure Set the parameters for displaying movie subtitles. PVR Configure Set the parameters for record device.

  • Page 20: Technical Specifications

    TECHNICAL SPECIFICATIONS Item Sub Item Parameter 170 ~ 230 MHz Input Frequency 470 ~ 860 MHz RF Input level -79 dBm(T),-75 dBm(T2) Tuner IF Bandwidth 7 MHz and 8 MHz Modulation QPSK, 16QAM, 64QAM 128QAM(T2), 256QAM(T2) MPEG4 AVC/H.264 HP@L4 Decoder Format HEVC/H.265 HT@L4 MPEG2 MP@ML.HL Video...
  • Page 21 Hereby, ETA a.s. declares that the radio equipment type PDX923SUDVBT2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.gogen.cz/declaration_of_conformity EN - 21...
