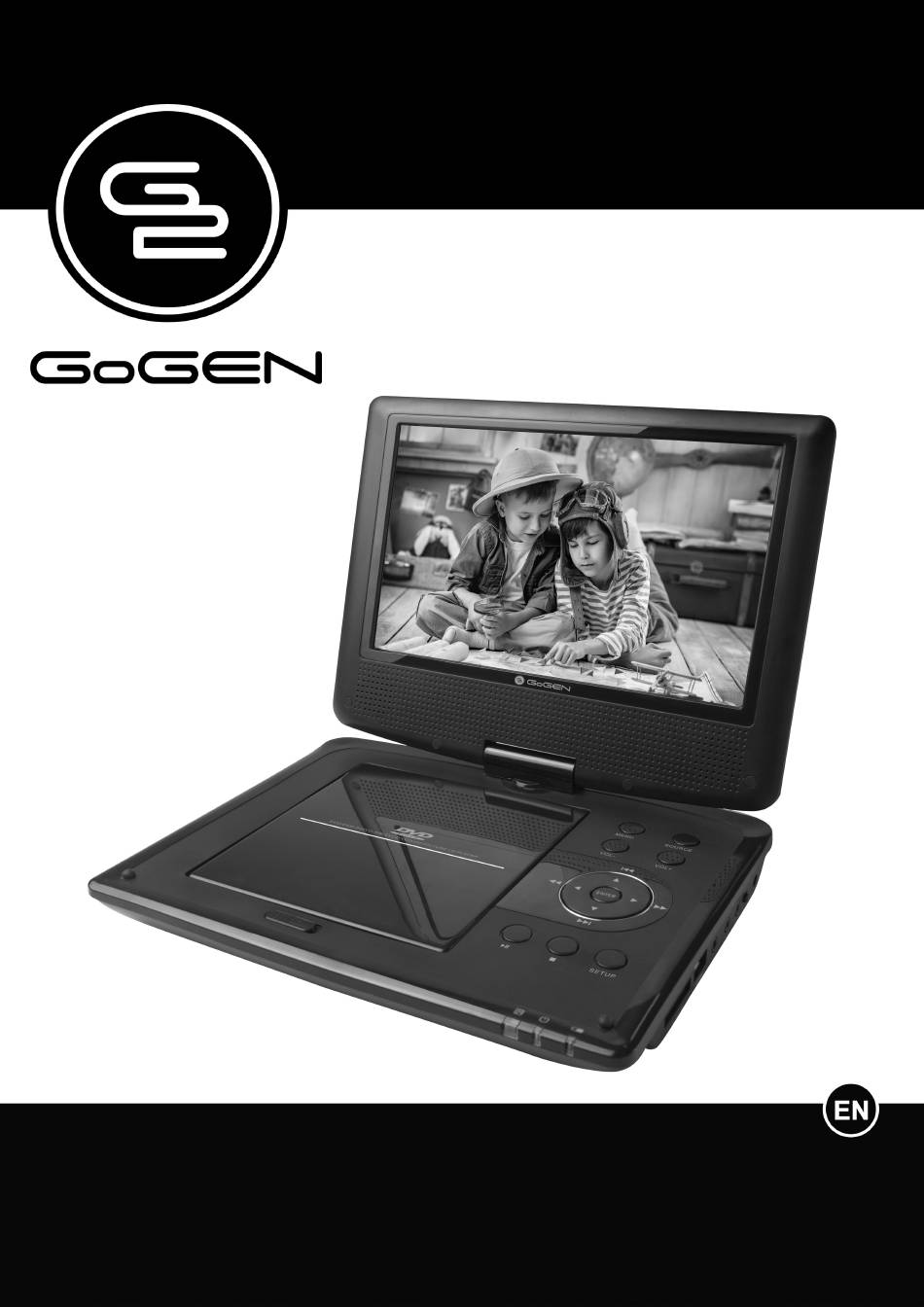

PDX 1043 SUDVBT2
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDX 1043 SUDVBT2 and is the answer not in the manual?

Questions and answers

Related Manuals for Gogen PDX 1043 SUDVBT2

Summary of Contents for Gogen PDX 1043 SUDVBT2

  • Page 1 PDX 1043 SUDVBT2 INSTRUCTION MANUAL...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel. Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.

  • Page 3: Notes On Copyrights

    Warning: This digital video disc player employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure. Warning: To prevent direct exposure to laser beam,do not open the enclosure. Visible laser radiation when open.

  • Page 4: Identification Of Controls

    IDENTIFICATION OF CONTROLS MAIN UNIT 1) MENU 2) SOURCE 3) VOL+ 4) VOL- ▲/ Up/Previous track ►/ Right/Fast Forward 7) ENTER ▼/ Down/Next track 9) ◄ / Left/Fast Reverse ► Play/pause  ■ STOP 12) SETUP 13) OPEN 14) SD/MMC 15) USB 16) AV OUT 17) Earphone Socket...
  • Page 5 IDENTIFICATION OF CONTROLS REMOTE CONTROL UNIT 1) SOURCE DVD/CARD/USB/DVB-T. 2) MUTE Disable Audio output. 3) 0-9 NUMBER BUTTON Selects numbered items in a menu. 4) INFO To display the playtime and status information. 5) 10+ BUTTON In order to select a track 10 or greater, first press 10+, For example;...
  • Page 6 Turn on/off the power. 16) SEARCH Goto time point, title or chapter you want in DVD Mode. 17) SUBTITLE Press SUBTITLE repeatedly during playback to hear a different subtitle languages. 18) ANGLE DVD: Press ANGLE will change the view angle, on DVDs that support this feature. /TITLE DVB Enter Record Return to DVD title menu...

  • Page 7: Setup Menu Setting

    SETUP MENU SETTING GENERAL SETUP PAGE Press SETUP button to get the setup menu. Use direction buttons ▲▼◄ ► to select the preferred item. After finishing settings, press SETUP again to normal display. The following menu items can be changed: GENERAL: selects the GENERAL PAGE menu.

  • Page 8: Audio Setup Page

    AUDIO SETUP PAGE Audio Setup Page Downmix This options allows you to set the stereo analog output of your DVD Player. LT/RT:Select this option if your DVD Player is connected to a Dolby Pro Logic decoder. Stereo:Select this option when output delivers sound from only the two front speakers. Digital Output The function is used to select the SPDIF Output:SPDIF Off,SPDIF /RAW,SPDIF/PCM.

  • Page 9: Preference Page

    PREFERENCE PAGE TV Type Selecting the colour system that corresponds to your TV when AV outputs.This DVD Player is compatible with both NTSC and PAL. PAL - Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format.
  • Page 10 OLD PASSWORD: Enter the OLD password, (Factory setting is 1369), and the cursor will jump automatically to NEW PASSWORD. NEW PASSWORD: Enter the NEW password. Enter 4 digits from the remote control unit numeric buttons, and the cursor will automatically jump to CONFIRM PASSWORD. CONFIRM PASSWORD: Confirm the NEW password by entering it again.

  • Page 11: First Time Installation

    BATTERY PARAMETERS Charge / Discharge Time: Standard charge time: 3 h ~ 4 h Standard discharge time in DVD / DVBT mode: 3 h / 1 h STORAGE AND WORK CIRCUMSTANCES: 1. Storage circumstances Temperature Humidity 6 months -20 °C ~ +45 °C 65 ±...

  • Page 12: Program Edit

    PROGRAM EDIT To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This Menu requires a password to access. Enter the default password '000000'. Set Favourite Program/s You can create a shortlist of favourite programs that you can easily access. Set Favourite TV or Radio program: 1) Select the preferred program then press the PAVOURITE button.

  • Page 13: Video Setting

    Lock Program/s You can lock selected programs for restricted view. Lock a TV or Radio Program: 1) Select the preferred program then press the YELLOW button. A lock-shaped symbol is displayed. The program is now marked as locked. 2) Repeat the previous step to select more programs . 3) To confirm and exit the menu, press the EXIT button.

  • Page 14: Channel Search

    Aspect Ratio You must set the display format to either 4:3 PanScan, 4:3 Letter Box,16:9 Full Screen or Auto to get the maximum display when watching TV. Resolution If the video does not appear correctly, change the setting. This setting is to match the most common setting for HDMI.

  • Page 15: Time Setting

    Manual Search Install new channels manually. This option adds new channels without changing the current channels list. 1) Select [Manual Search] then press OK or RIGHT. The channel search screen will appear. 2) Press the RIGHT/LEFT key to select the channel frequency. 3) Press OK to start searching channels.

  • Page 16: System Setting

    OPTION To access the Menu,press SETUP and select [Option]. The menu provides options to adjust the OSD Language, Subtitle Language and Audio Language. Select an option and press RIGHT/ LEFT to adjust the setting.Press EXIT to exit The Menu. OSD Language Select an OSD language.
  • Page 17 Restore Factory Default Reset your Set Top Box to the Default Factory Settings.In Main Menu select [Restore Factory Default] and press OK or RIGHT to select. Enter your password or the default password '000000' and press OK to confirm. This option will delete all preset channels and settings. Information View model, hardware and software information.

  • Page 18: Technical Specifications

    TECHNICAL SPECIFICATIONS Item Sub Item Parameter Input Frequency 170~230 MHz 470~860 MHz Tuner RF Input level -79dBm(T),-75dBm(T2) IF Bandwidth 7 MHz and 8 MHz Modulation QPSK,16 QAM,64 QAM,128 QAM(T2),256 QAM(T2) Decoder Format MPEG4 AVC/H.264 HP@L4 HEVC/H.265 HT@L4 MPEG2 MP@ML.HL Video Output Format 480i, 480P, 576i, 576P, 720P, 1080i,1080P 4:3 and 16:9 Output Port...

  • Page 19: Warranty

    Hereby, ETA a.s. declares that the radio equipment type PDX1043SUDVBT2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.gogen.cz/declaration_of_conformity EN - 19...
