1 Check Contents

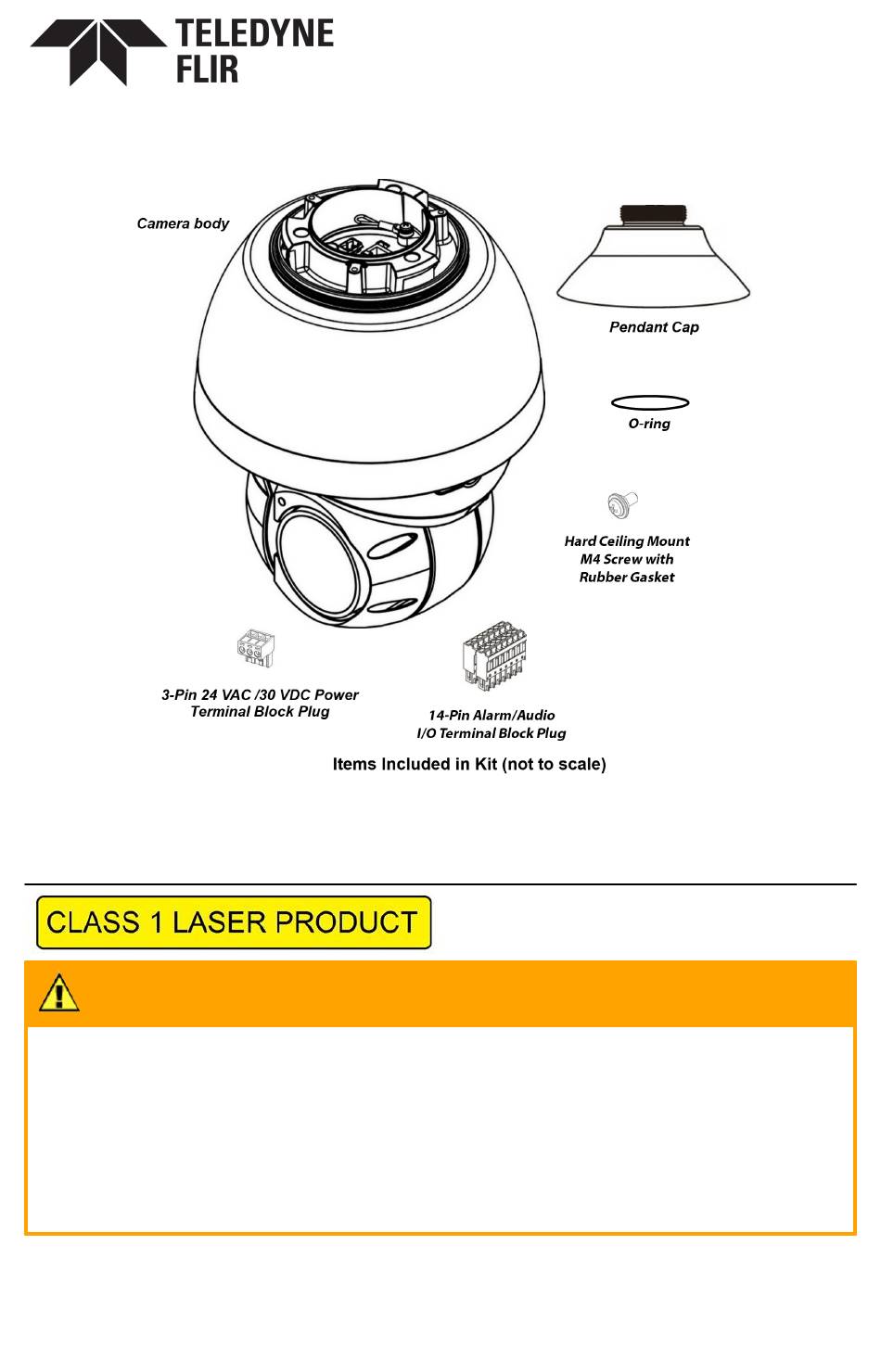

Make sure all of the items above are included in the camera kit.
Caution
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Attention
L'utilisation des commandes ou reglages ou l'execution des procedures autres
que celles specifiees dans les presents exigences peuvent etre la cause d'une
exposition a un rayonnement dangereux.
CP-6408-21-I QIG Rev 140
This document does not contain any export-controlled information.

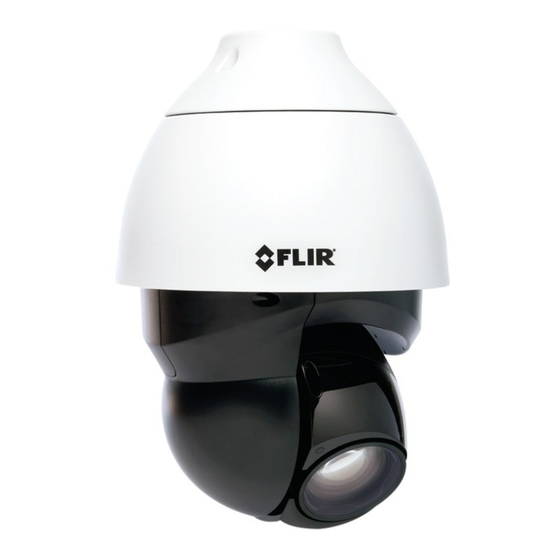

Quasar™ 4K 22x IR PTZ
Quick Install Guide
This camera is a Class 1 Laser Product
that complies with IEC 60825-1:2014.
CP-6408-21-I
June 2021
Advertisement
Table of Contents
Related Manuals for Teledyne Quasar CP-6408-21-I
Summary of Contents for Teledyne Quasar CP-6408-21-I
- Page 1 Quasar™ 4K 22x IR PTZ CP-6408-21-I Quick Install Guide 1 Check Contents Make sure all of the items above are included in the camera kit. This camera is a Class 1 Laser Product that complies with IEC 60825-1:2014. Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
- Page 2 2 Prepare to Install the Camera 2.1 Install FLIR Discovery Network Assistant Download the FLIR Discovery Network Assistant (DNA) tool to a computer on the same VLAN to which you will connect the camera, and then unzip the file. The DNA tool does not require a license to use and is a free download from www.teledyneflir.com >...
- Page 3 PoE 60W 4 pair forced mode. For more information about compatible injectors and recommended switches, contact Teledyne FLIR support. Verify that the LAN connector LEDs are steady green and flashing yellow. If using a 24 VAC or 30 VDC power supply, connect it to...
- Page 4 14-Pin Alarm/Audio I/O Definition Definition Terminal Block Audio-Out RS-485 D- Ground (Audio I/O) Alarm-In 4 Alarm-Out A1 Alarm-In 3 Alarm-Out A2 Alarm-In 2 Alarm-Out B1 Alarm-In 1 Alarm-Out B2 Ground (Alarm I/O) RS-485 D+ Audio-In This product contains a battery that is soldered to the PCB. There is a risk of explosion if the battery is replaced by an incorrect type.
- Page 5 The Discover List appears, showing compatible devices on the VLAN and their current IP addresses. In the DNA Discover List, verify that the camera's status is Online. If this is the first time you are configuring the camera or if it is the first time after resetting the camera to its factory defaults, DNA automatically authenticates the camera with the default password for the camera's admin user (admin).
- Page 6 After you have mounted the camera and discovered or defined its IP address, use VMS Discovery/Attach procedures to attach the camera to a supported VMS. 5 Camera Dimensions Following are the Quasar CP-6408-21-I camera’s dimensions. 6 Register the Product Register your Product with Teledyne FLIR at https://customer.flir.com.
