1 Check Contents

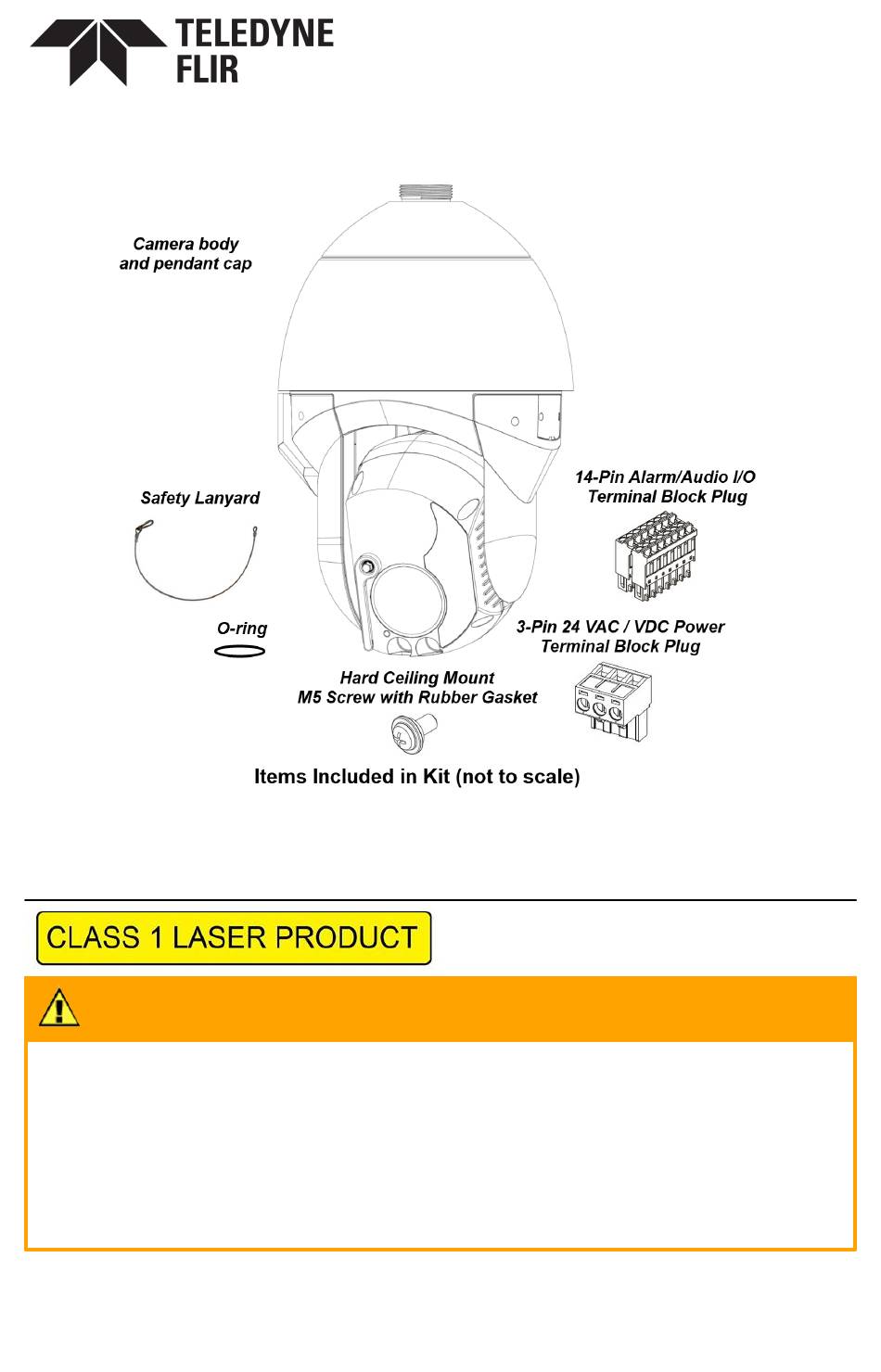

Make sure all of the items above are included in the camera kit.
Caution
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Attention
L'utilisation des commandes ou reglages ou l'execution des procedures autres
que celles specifiees dans les presents exigences peuvent etre la cause d'une
exposition a un rayonnement dangereux.
CP-6408-31-I QIG Rev 120
This document does not contain any export-controlled information.

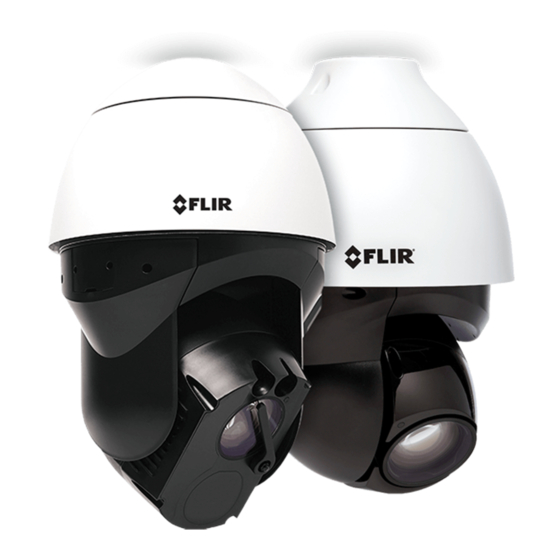

Quasar™ 4K 31x IR PTZ
Quick Install Guide
This camera is a Class 1 Laser Product
that complies with IEC 60825-1:2014.
CP-6408-31-I
June 2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teledyne Quasar CP-6408-31-I
Summary of Contents for Teledyne Quasar CP-6408-31-I
- Page 1 Quasar™ 4K 31x IR PTZ CP-6408-31-I Quick Install Guide 1 Check Contents Make sure all of the items above are included in the camera kit. This camera is a Class 1 Laser Product that complies with IEC 60825-1:2014. Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
- Page 2 2 Prepare to Install the Camera 2.1 Install FLIR Discovery Network Assistant Download the FLIR Discovery Network Assistant (DNA) tool to a computer on the same VLAN to which you will connect the camera, and then unzip the file. The DNA tool does not require a license to use and is a free download from www.teledyneflir.com >...
- Page 3 PoE 60W 4 pair forced mode. For more information about compatible injectors and recommended switches, contact Teledyne FLIR support. Verify that the LAN connector LEDs are steady green and flashing yellow. If using a 24 VAC or 24 VDC power supply, connect it to...
- Page 4 14-Pin Alarm/Audio I/O Definition Definition Terminal Block Audio-Out Not used Ground (Audio I/O) Alarm-In 4 Alarm-Out A1 Alarm-In 3 Alarm-Out A2 Alarm-In 2 Alarm-Out B1 Alarm-In 1 Alarm-Out B2 Ground (Alarm I/O) Not used Audio-In This product contains a battery that is soldered to the PCB. There is a risk of explosion if the battery is replaced by an incorrect type.
- Page 5 To configure the camera for networking using the DNA tool: a. Make sure the camera and the PC are on the same LAN segment. b. Run the DNA tool (DNA.exe) by double-clicking The Discover List appears, showing compatible devices on the VLAN and their current IP addresses.
- Page 6 4.2 Change Video Format (Optional) By default, NTSC is the camera's video format. To change the camera's video format to PAL using the DNA tool: a. In the DNA Discover List, right-click the camera and select Change Video Format. b. In the Change Video Format window, select PAL.
- Page 7 5 Camera Dimensions Following are the Quasar CP-6408-31-I camera’s dimensions. Front View Side View 6 Register the Product Register your Product with Teledyne FLIR at https://customer.flir.com. For warranty information, see https://www.teledyneflir.com/support- center/warranty/security/flir-security-product-warranties/. 7 Contact Information Teledyne FLIR LLC Corporate Headquarters 6769 Hollister Avenue 27700 SW Parkway Ave.
