T I V E R T O N

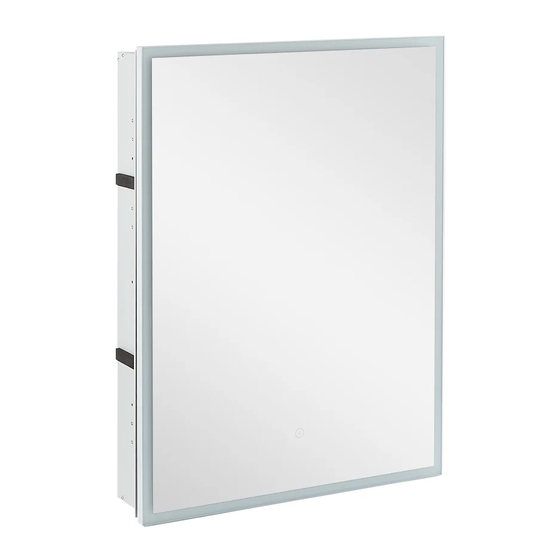

LIGHTED MEDICINE CABINET
BOTIQUÍN CON LUZ
ARMOIRE À PHARMACIE ÉCLAIRÉE
SKU: 484931, 484932
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing electrical �xtures. Signature
Hardware accepts no liability for any damage to the
faucet, plumbing, sink, counter top, or for personal
injury during installation.
Observe all local electrical and building codes.
Unpack and inspect the product for shipping damage.
If any damage is found, contact our Customer
Relations team via live chat at www.signaturehard-
ware.com or by emailing support@signaturehard-
ware.com.
ANTES DE COMENZAR
Le recomendamos que consulte con un profesional si no
está familiarizado con la instalación de accesorios
eléctricos. Signature Hardware no asume ninguna
responsabilidad con respecto a los daños causados al
inodoro, sistema de plomería, suelo o daños personales
durante la instalación.
Respete todos los códigos de electricidad y de
construcción locales.
Desempaque e inspeccione el producto para determinar
si tiene daños por el envío. Si tiene daños, comuníquese
con nuestro equipo de Relaciones con el Cliente por chat
en directo en www.signaturehardware.com o por correo
electrónico a support@signaturehardware.com.
AVANT DE COMMENCER
Nous vous recommandons de consulter un professionnel
si vous n'avez pas d'expérience dans l'installation
d'appareils électriques. Signature Hardware décline toute
responsabilité en cas de dommage au robinet, à la
plomberie, à l'évier, au comptoir ou de blessure corporelle
lors de l'installation.
Respectez toutes les réglementations locales en matière
d'électricité et de construction.
Déballez et inspectez le produit pour vérifier qu'il n'a pas
été endommagé pendant le transport. Si un dommage
est constaté, communiquez avec notre équipe des
relations avec la clientèle au www.signaturehardware.com
ou par mailsupport@signaturehardware.com.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
Please do not use if the product has any lost or
broken pieces.
During installation, never put sharp or pointy
materials against mirror surface. This may result in
leakage or personal injury.
Turn o� mirror during severe storms.
During operation, DO NOT pull out the power plug
to turn o� the product. This may damage electric
components.
Please pull out the power plug if the product when
not in use for long periods of time.
Do not disassemble or attempt to repair without
consulting a professional.
CÓMO COMENZAR
Asegúrese de haber reunido todos los materiales
necesarios para la instalación.
No use si el producto tiene alguna pieza faltante o rota.
Durante la instalación, nunca coloque material afilado
o puntiagudo contra la superficie del espejo. Esto
puede provocar fugas o lesiones personales.
Apague el espejo durante tormentas fuertes.
Durante el funcionamiento, NO desenchufe el cable
de alimentación para apagar el producto. Esto podría
dañar los componentes eléctricos.
Desconecte el enchufe de alimentación cuando el
producto no esté en uso durante largos períodos de
tiempo.
1
REVISED 03/28/2023
CODES: SH66224038, SH66239038
1.855.715.1800
