Summary of Contents for Monitor Audio Anthra Series

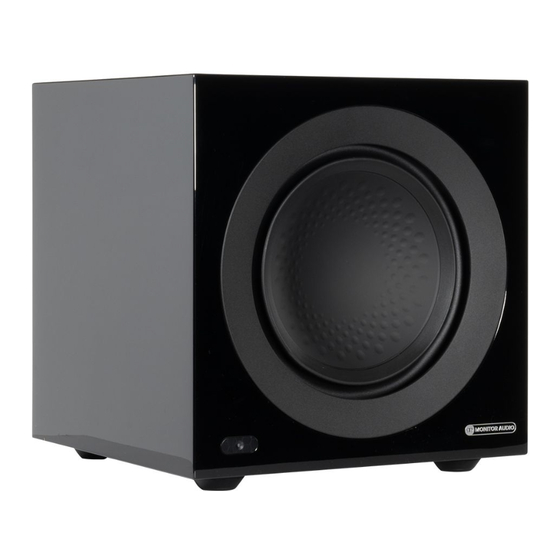

- Page 1 Anthra Subwoofer Series Product Manual...
-
Page 2: Table Of Contents
Welcome to Anthra Register your Anthra Subwoofer to ensure the best possible product and customer support Thank you for purchasing one of our Anthra Subwoofers, you’re now ready to start your journey to breathtaking sound. Register your speakers using the QR code It takes confidence to dare to be simple. -
Page 3: Spikes & Feet
Spikes & feet Use on wooden or hard floors The foot comes fully assembled for use on hard floors. All that is required is fixing into the bottom of the cabinet. This is achieved by simply screwing the feet fully into the 4-threaded inserts in the underside of the cabinet. -
Page 4: Controls & Connections
6 - 12 Volt Trigger Input ~ Centre Pin Tip = +12Vdc For external power control from an AV amplifier/ receiver to the Anthra Subwoofer. Monitor Audio recommend using this function and a lead is supplied. This 12 volt signal is generated by the AV amp/receiver and tells the Subwoofer to turn On from standby mode. -
Page 5: Front Led Colour Matrix
Front LED colour matrix The front LED has multiple colours/ indicators. Please refer to the below table for their meaning. Function Indication Unit Standy Continuous Red Power Up Sequence 3 x Red Pulses Power On Unit On Continuous Orange BLE Pairing Pairing Complete Quick Flashes Orange for 3 seconds Check connction option selected in... -
Page 6: Setting Up
Small stand-mount/ bookshelf speaker 40-100 Hz amp panel. The Monitor Audio Logo will briefly appear on the screen followed by the menu system. The Anthra subwoofer can also be set to wake from standby using Music Sense or the 12v Trigger... -
Page 7: On-Screen Menu
A stepped volume control ranging from -40 - 20 dB. EQ Presets Here you can select from a list of three predefined Monitor Audio presets (Music, Movie, Impact) designed by our audio experts, or three custom presets. These can be created and saved to the subwoofer using the MaestroUnite app. -
Page 8: Maestrounite App
MaestroUnite app Creating a Custom EQ Preset Download the MaestroUnite app from the Google Play Store (Android) or Apple Store (iOS). In the MaestroUnite app you can control / select all functions available in the on-screen menu described One of the many customisable features of Anthra is that you can create your own Custom EQ previously and additional settings such as Auto-On, Phase, Custom EQ, LED Brightness and more. -
Page 9: Factory Reset
Factory reset Care & maintenance Upkeep of cabinets Should the need arise to carry out a factory reset on your Anthra Subwoofer simply hold down the Factory Reset button on the back of the amplifier panel for approximately 5 seconds whilst the The finish of the cabinet can be maintained by regular dusting using a soft or micro fibre cloth. -
Page 10: Warranty
Warranty Specifications In the unlikely event that there is a defect with this product, it is covered by the Monitor Audio Anthra 10 Anthra 12 Anthra 15 manufacturer’s warranty, provided that the product was supplied by an authorised Monitor Audio retail specialist. - Page 11 Listen Again. Monitor Audio Ltd. 24 Brook Road Rayleigh, Essex SS6 7XJ England Tel: +44 (0)1268 740580 Email: info@monitoraudio.group monitoraudio.com ©Monitor Audio Ltd. | V1-2023 - Anthra...
