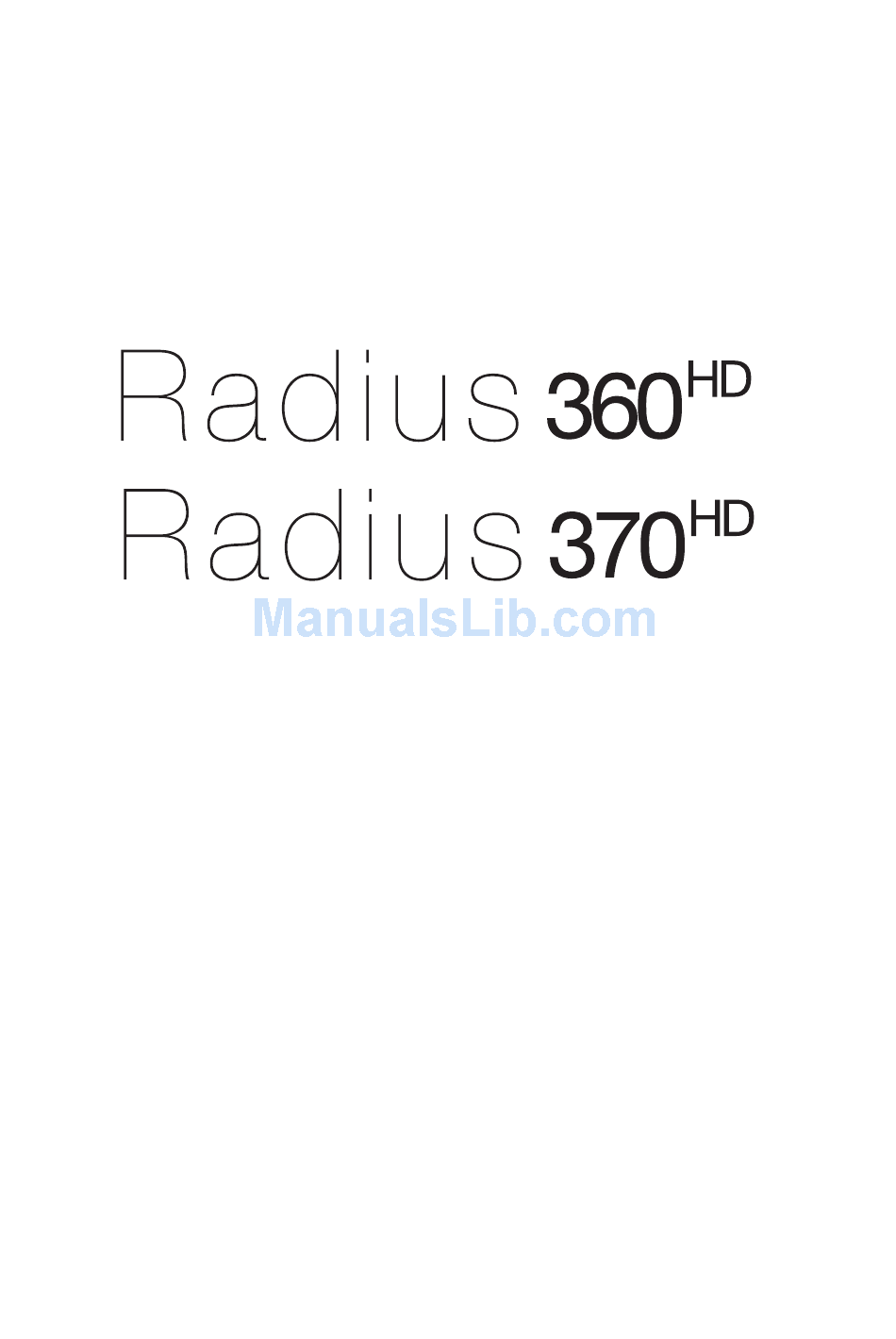

  • Page 1 O w n e r s M a n u a l...

  • Page 3: Table Of Contents

    Data Protection Owner Information Introduction Thank you for your purchase of a Monitor Audio Radius subwoofer, which has been designed and constructed using quality systems and materials to provide years of enjoyment, reliability and pride of ownership. Building on the overwhelming success of the original Radius Series, Radius brings redesigned cabinet profiles, enhanced cabinet structure, improved aesthetics and improved sonic balance and response.

  • Page 4: Important Safety Instructions

    Only use attachments/ accessories specified by Monitor Audio. Use only with the cart , stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus.

  • Page 5: Re-Cycling

    WARNING • TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE • TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE •...

  • Page 6: Unpacking

    Unpacking A feature of both the Radius subwoofers is the exposed drive unit. Great care must be exercised at all times to ensure it is not damaged during unpacking and when finally sited in the room. Any physical damaged caused to the drive unit by not complying with this requirement will not be covered by warranty.
  • Page 7 . The table below will help you to select the correct frequency at which to crossover depending on your main speakers. Crossover Control Type of Main Speaker Monitor Audio Product Setting Large floor-standing speaker PL300; GS20/60; RS6/8; BR6 40-60 Hz Small floor-standing speaker RS5;...
  • Page 8 Radius...
  • Page 9 12 Volt Trigger Input ~ Centre Pin = +12Vdc For external power control from AV amplifier/ receiver to the R370 . Monitor Audio recommend using this function and a lead is supplied. This 12 volt signal is supplied by the AV amp/receiver and tells the R370 to turn on from standby mode.
  • Page 10 RCA Line Level Outputs (Left & Right) RCA line level outputs are provided in order to use other sub woofers in conjunction with the R370 by ‘daisy chain’ type connection. The outputs are link out only connections and do not provide any form of filtering. IEC Mains Power Connector/ Fuse Location The R370 is supplied with a two-pin mains input socket for connection to the mains supply.

  • Page 11: Positioning/Initial Set Up

    Positioning/Initial Set Up Leave the subwoofer unplugged from the mains until the installation procedure is completed. The subwoofer should now be sited in the most suitable position, preferably not directly in the corner of the room as this may cause excessive bass ‘boom’. Once a desirable position is achieved it is important to check if the cables are long enough to reach comfortably without being under tension.

  • Page 12: Specifications

    (H x W x D) Inches:- x 12 Input Impedance: - 20K Ohms Mains input voltage:- 110 - 120 Vac / 220 - 240 Vac 50/60Hz (Factory Preset) C-CAM is a registered trade mark of Monitor Audio Ltd ® Radius...

  • Page 13: Trouble Shooting

    This guarantee covers both labour and parts. The liability of Monitor Audio is limited to the cost of repair or replacement of the defective parts (at the discretion of Monitor Audio) and under no circumstances extends to consequential losses or damage.

  • Page 14: Claims Under This Guarantee

    The equipment should be returned in its original packaging to the original supplier where possible, or to any other authorised Monitor Audio dealer. If it is not possible to return the equipment by hand, then it should be sent carriage prepaid via a reputable carrier. If the original packing is not available replacement packaging can be purchased from Monitor Audio.

  • Page 15: Ec Declaration Of Conformity

    EC Declaration of Conformity EC Declaration of Conformity We, Monitor Audio Ltd. Unit 2,24 Brook Road Rayleigh Essex SS6 7XL England Declare in own responsibility, that the R370HD product described in this manual is in compliance with Technical Standards/Council Directives: (LVD) 73/23/EEC Low Voltage Directive EN60065: 09.93+ A11:09.97 Safety requirements for mains operated electronic and related...

  • Page 16: Data Protection

    We at Monitor Audio are committed to respecting the wishes and privacy of our customers. Any information you provide will be held in the strictest confidence and only used within the Monitor Audio organisation for the provision of services such as warranty claims or spare parts.
  • Page 18 Monitor Audio Ltd. Unit 2, 24 Brook Road Rayleigh, Essex SS6 7XL England Tel: 01268 740580 Fax: 01268 740589 Email: info@monitoraudio.co.uk monitoraudio.co.uk Designed in the United Kingdom Version 2. 2008...
