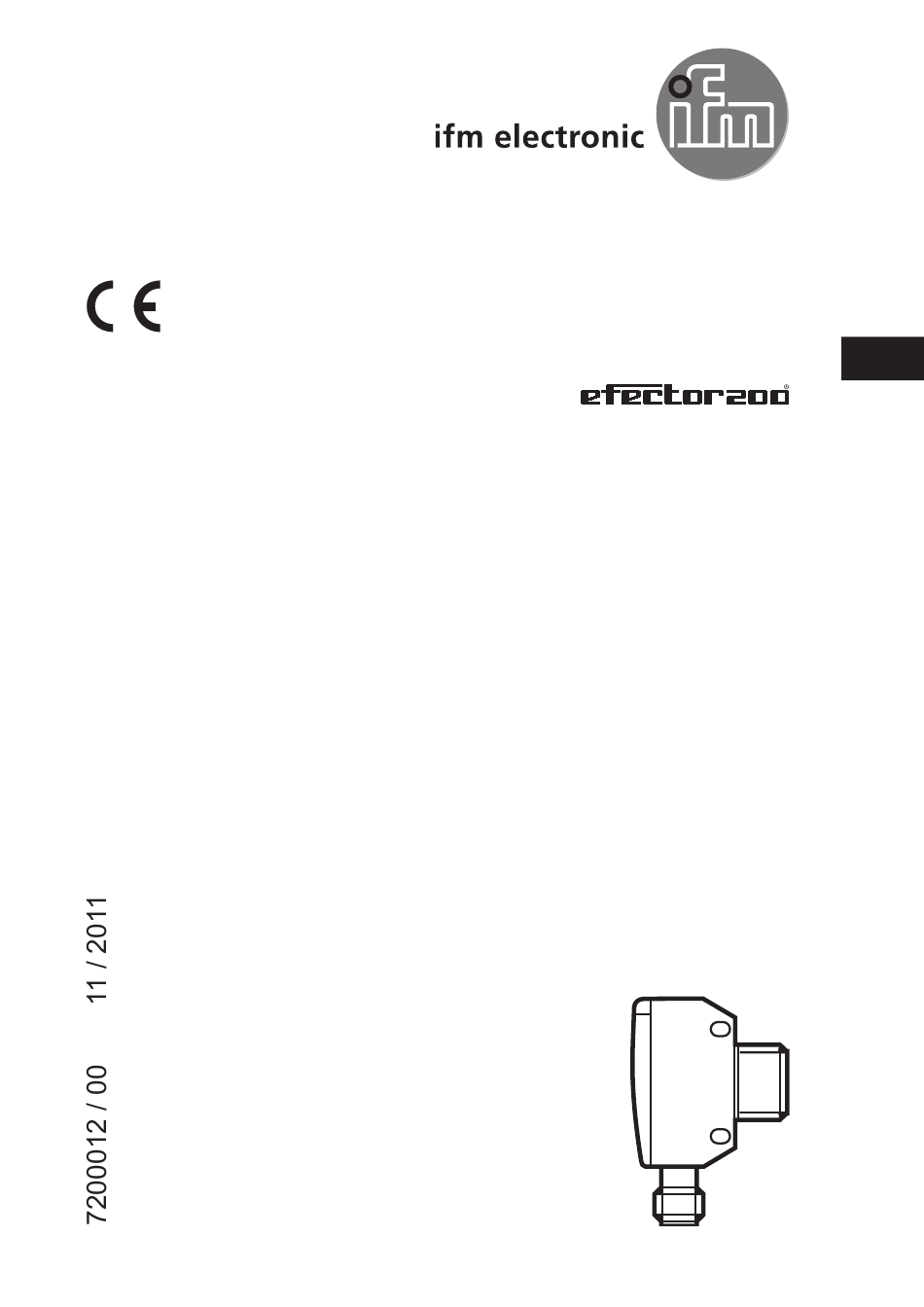

- Page 1 Operating instructions Diffuse reflection sensor with background suppression OGH38x...
- Page 2 1 Functions and features The diffuse reflection sensor detects objects and materials without contact and indicates their presence by a switching signal. For the range see the type label (referred to white paper 200 x 200 mm, 90 % remission). 2 Installation ►...
- Page 3 pin 1 = L+ (10...30 V DC) pin 3 = L- pin 4 = load (NPN, 200 mA) (pin 2 = not connected) 4 Operation Check whether the sensor operates correctly. • The yellow LED is lit when the switching output is switched. •...
