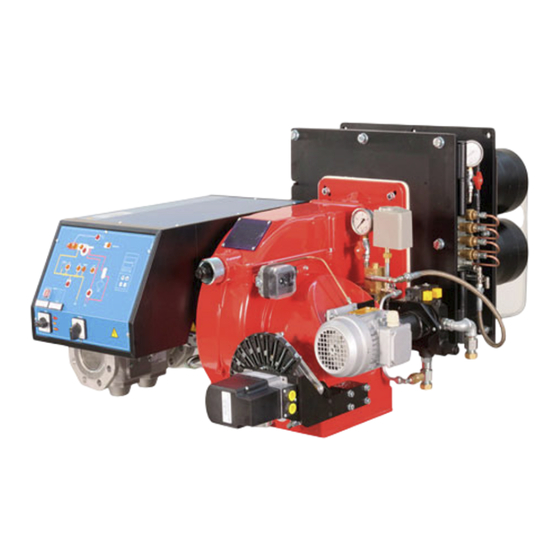

- Page 1 P60 VS P72 VS P73 VS LMV5x electronically controlled short-flame gas burners MANUAL OF INSTALLATION - USE - MAINTENANCE BURNERS - BRUCIATORI - BRULERS - BRENNER - QUEMADORES - ГОРЕЛКИ M039576CA 0.1 04/2023...
- Page 2 DANGERS, WARNINGS AND NOTES OF CAUTION - Faults in the fuel supply system; - Use of the burner even after an error and/or fault has occurred; - Repairs and/or overhauls incorrectly carried out; This manual is supplied as an integral and essential part of - Modification of the combustion chamber with inserts that prevent the the product and must be delivered to the user.
- Page 3 GENERAL INSTRUCTIONS DEPENDING ON FUEL USED those parts likely to constitute sources of danger shall be made harm- less. ELECTRICAL CONNECTION In case the equipment is to be sold or transferred to another user, or in For safety reasons the unit must be efficiently earthed and installed as ...
- Page 4 BURER DATA PLATE .Do not touch any mechanical moving parts with your hands Consump or any other part of your body. Injury hazard Do not touch any parts containing fuel (i.e. tank and pipes). Type For the following information, please refer to Scalding hazard Model the data plate:...
- Page 5 PART I: SPECIFICATIONS PART I: SPECIFICATIONS BURNERS FEATURES These burners are designed to be installed into boilers provided with very big combustion chamber but the tube nest very close to the burner stokhole. The flame produced by this burner series is very short, but has the energy necessary to take up all the combustion chamber and then exchange this energy to the water, as to get very high efficiency.
- Page 6 PART I: SPECIFICATIONS Matching the burner to the boiler To correctly match the burner to the boiler verify the necessary input and the pressure in combustion chamber are included in the bur- ner performance curve; otherwise the choice of the burner must be revised consulting the burner manufacturer. Burner model identification Burners are identified by burner type and model.
- Page 7 Overall dimensions (mm) Burner flange Boiler plate drilling P60 VS - 1.40 1185 M12 450 450 P60 VS - 1.50 1185 1013 M12 450 450 P60 VS - 1.65 1185 1058 M12 450 450 P72 VS - 1.50 1338 373 1057 381...
- Page 8 PART I: SPECIFICATIONS GAS TRAIN CONNECTION ATTENTION: Before executing the connections to the gas pipe network, be sure that the manual cutoff valves are closed. The following diagrams show some examples of possible gas trains with the components supplied with the burner and those fitted by the installer.
- Page 9 PART I: SPECIFICATIONS Performance curves P60.. VS P72..VS 200 300 400 500 600 700 800 900 1000 1100 1200 1000 1250 1500 1750 P73..VS 1000 1250 1500 1750 2000 2250 To get the input in kcal/h, multiply value in kW by 860. Data are referred to standard conditions: atmospheric pressure at 1013mbar, ambient temperature at 15°C.Estas cifras se refieren a condiciones estándar: a una presión atmosférica de 1013 mbar y una temperatura ambiente de 15°C.
- Page 10 PART I: SPECIFICATIONS Pressure in the network - gas rate curves P60 - VS P72 - VS Rp 2" Rp 2" DN65 DN65 DN80 90 100 110 120 130 P73 - VS 87,5 Rp 2" (50) 62,5 37,5 DN65 DN80 12,5 75 100 125 150 175 200 225 250 275 Caution: the gas rate value is quoted on the x-axis, the related network pressure is quoted on the y-axis (pres-...
- Page 11 Packing The burners are despatched wooden cages whose dimensions: P60 VS: 1390 х 870 х 960 mm (L x P x H) P72 VS - P73 VS: 1480 х 950 х 1110 mm (L x P x H) Packing cases of this kind are affected by humidity and are not sui- table for stacking.
- Page 12 PART I: SPECIFICATIONS Electrical wiring WARNING! Respect the basic safety rules. make sure of the connection to the earthing system. do not reverse the phase and neutral connections. fit a differential thermal magnet switch adequate for connection to the mains. WARNING! before executing the electrical connections, pay attention to turn the plant’s switch to OFF and be sure that the burner’s main switch is in 0 position (OFF) too.
- Page 13 PART I: SPECIFICATIONS GAS TRAIN CONNECTIONS WARNING: before executing the connections to the gas pipe network, be sure that the manual cutoff valves are closed. ATTENTION: it is recommended to mount filter and gas valves to avoid that extraneous material drops inside the valves, during maintenance and cleaning operation of the filters (both the filters outside the valves group and the ones built-in the gas valves).
- Page 14 PART I: SPECIFICATIONS MultiBloc MB-DLE - Assembling the gas train Mounting Mount flange onto tube lines: use appropriate sealing agent Insert MB-DLE: note position of O rings Remove MultiBloc between the threaded flanges After installation, perform leakage and functional test Disassembly in reverse order MB-DLE 405..
- Page 15 PART I: SPECIFICATIONS DUNGS MBE Components and position of pressure switches PGMIN minimum gas pressure switch VD-V VD-R PGMIN minimum gas pressure switch (alternative VD-V VD-R to 1) PGCP leakage control gas pressure switch PGMAX maximum gas pressure switch Actuator with integrated pressure stabiliser On-Off actuator Valve body (Threaded) Valve body (Flange)
- Page 16 PART I: SPECIFICATIONS Siemens VGD20.. e VGD40.. Components and position of pressure switches PGMIN minimum gas pressure switch SKP25 SKP25 PGMIN minimum gas pressure switch (alternative SKP15 SKP15 to 1) PGCP leakage control gas pressure switch PGMAX maximum gas pressure switch Actuator with integrated pressure stabiliser On-Off actuator Valve body (Threaded)
- Page 17 PART I: SPECIFICATIONS Siemens VGD Pressure taps Strainer (G 1/4") (G 1/8") (G 1/4") (G 1/8") (G 1/4") (G 3/4") (G 1/8") Legend pi Inlet pressure pm Pressure between valves po Outlet pressure Integrated proving system (burners equipped with LME7x, LMV, LDU) This paragraph describes the integrated proving system operation sequence: At the beginning both the valves (EV1 and EV2) must be closed.
- Page 18 PART I: SPECIFICATIONS ADJUSTMENTS ATTENTION: before starting the burner up, be sure that the manual cutoff valves are open and check that the pres- sure upstream the gas train complies the value quoted on paragraph “Technical specifications”. Be sure that the mains switch is closed.
- Page 19 PART I: SPECIFICATIONS PLEASE REFER TO THE GAS METER READING. Pressure - rate in combustion head curves P60 - VS P72 - VS 100 110 120 Gas rate Stm Gas rate Stm P73 - VS 100 125 150 175 200 225 250 Gas rate Stm Gas Filter The gas filters remove the dust particles that are present in the gas, and prevent the elements at risk (e.g.: burners, counters and regu-...
- Page 20 PART I: SPECIFICATIONS Adjustments - brief description The air and fuel rates adjustments must be performed at the maximum ouptput first (“high flame”): see the LMV5.. related manual.. Check that the combustion parameters are in the suggested limits. Check the flow rate measuring it on the counter or, if it was not possible, verifying the combustion head pressure by means of a dif- ...
- Page 21 PART I: SPECIFICATIONS Main page check the fan motor rotation (see related paragraph). make the safety chain enabling the system to start up the combustion cycle starts: the system will show the operating stages - Prepurging (program phase no.30) - Driving to ignition position (program phase no.36) - Ignition position (program phase no.38) - Fuel (the fuel solenoid valves open) - Flame (the flame lights up)
- Page 22 PART I: SPECIFICATIONS the Operational Status menu provides the following items: Normal operation: by selecting this item and pressing the ENTER key, the main page is showed; press ESC to go back to the main menu. Status/Reset: it shows system errors or faults occuring / it represents the lockout reset function. Fault History: by selecting this item and pressing the ENTER key, the Lockout History will be showed about the last 21 faults occured.
- Page 23 PART I: SPECIFICATIONS Access w-out PW Access Serv Access OEM Access LS by means of the arrow keys, select “Access w-out pass” (access without password - user level), confirm by pressing ENTER. The other levels require password reserved to the Technical Service, to the Manifacurer, etc. The menu shown accessing without password is the following: BurnerControl RatioControl...
- Page 24 PART I: SPECIFICATIONS SetpointW1 SetpointW2 SD_ModOn SD_ModOff the display will show: SD_ModOn Curr:: 1.0% New: 1.0% The deafult value for this parameter is1% that is, the burner will light again at a temperature 1% lower than the set-point. Change value, if needed, by means of the arrow keys;...
- Page 25 PART I: SPECIFICATIONS Sum/Winter Time Time EU/US choose the Summertime/Wintertime mode desired and cofirm by pressing ENTER; press ESC to exit. Set the time zone (Time EU/US) in the same way. Languages: it allows setting the current language Language Italiano Curr:: New: English...
- Page 26 PART I: SPECIFICATIONS to the maximum output. Manual mode To by-pass the thermal protection or not to let the buner operate in high flame stage (maximum output) after ignition, the manual mode is provided. To choose the manual mode (Manual Operation), use the SELECT arrow keys OperationalStat Operation ManualOperation...
- Page 27 PART I: SPECIFICATIONS ADJUSTING THE GAS VALVES GROUP Multibloc MB-DLE The multibloc unit is a compact unit consisting of two valves, gas pressure switch, pressure stabilizer and gas filter. C VS The valve is adjusted by means of the RP regulator after slackening the locking screw VB by a number of turns.
- Page 28 PART I: SPECIFICATIONS Adjusting the combustion head CAUTION: perform these adjustments once the burner is turned off and cooled. Only if necessary, change the combusiton head position: to let the burner operate at a lower output, loose the VB screw and move progressively back the combustion head towards the MIN position, by turning clockwise the VRT ring nut. Fasten VB screw when the adjustment is accomplished. “MAX”...
- Page 29 PART I: SPECIFICATIONS Calibration gas leakage pressure switch (PGCP) remove the pressure switch plastic cover; adjust the PGCP pressure switch to the same value set for the minimum gas pressure switch; replace the plastic cover. Adjusting the maximum gas pressure switch (when provided) To calibrate the maximum pressure switch, proceed as follows according to its mounting position: remove the pressure switch plastic cover;...
- Page 30 PART II: OPERATION PART II: OPERATION LIMITATIONS OF USE THE BURNER IS AN APPLIANCE DESIGNED AND CONSTRUCTED TO OPERATE ONLY AFTER BEING CORRECTLY CONNEC- TED TO A HEAT GENERATOR (E.G. BOILER, HOT AIR GENERATOR, FURNACE, ETC.), ANY OTHER USE IS TO BE CONSIDE- RED IMPROPER AND THEREFORE DANGEROUS.
- Page 31 PART II: OPERATION Starting the burner up by slowly increasing the output The first burner lighting (at the beginnig of the cold season) must be performed in order to gradually heat the boiler.For this reason, timers are installed inside the burner built-in or separate control panel, in oder to control the low flame time.
- Page 32 PART III: MAINTENANCE PART III: MAINTENANCE At least once a year carry out the maintenance operations listed below. In the case of seasonal servicing, it is recommended to carry out the maintenance at the end of each heating season; in the case of continuous operation the maintenance is carried out every 6 months.
- Page 33 PART III: MAINTENANCE Gas filter maintenance WARNING: Before opening the filter, close the manual cutoff valve downstream the filter and bleed the gas; check that inside the filter there is no pressurised gas. Per pulire o sostituire il filtro gas procedere nel modo seguente: MB-DLE MB-DLE 415 - 420 B01...
- Page 34 PART III: MAINTENANCE MultiBloc VD-V VD-R Mounting to push position 1. Position VD on VB, fig. 2+3. 2. Slide VD forward up to the stop, fig. 4. 3. Screw VD on with 2 M5 screws for each, max. 5 Nm/44 in.-lb., fig. 5/6. 4.
- Page 35 PART III: MAINTENANCE Combustion head extraction To disassemble the combustion head assembly, proceed as follows: unscrew the four VF fixing screws that secure cap C from the rest of the burner: remove the cap unscrew the grub screws GR securing the head adjustment ring G Unscrew the threaded rod A for head adjustment;...
- Page 36 PART III: MAINTENANCE figure below; Replace EC electrode cables, if damaged, following the sequence of combustion heads indicated by the letters on the electrode cables (see pag. 1); 10 To remove the electrodes, loosen the VE fastening screws; 11 Remove electrodes E by pulling them out of the holders; replace electrodes if damaged; 12 To remove the combustion head T, remove the fixing screws VT;...
- Page 37 PART III: MAINTENANCE CAUTION: When refitting the manifold, remember to insert the 'O' ring. When centring the heads, do not fasten the screws completely at the base of the collector. Secure them after centring. Do not touch the hinge and burner flange screws. TTENZIONE 15 For reassembly, follow the steps in reverse order, paying attention to the dimensions of the electrodes.
- Page 38 PART III: MAINTENANCE To check the detection current follow the diagram on the following pictures. If the signal is less than the quoted value, check the posi- tion of the detector, the electrical contacts and, if necessary, 27 (B/C/D) replace the detector. Control box Minimum detection signal µA DC...
- Page 39 PART III: MAINTENANCE TROUBLESHOOTING GUIDE Gas operation * No electric power supply * Restore power supply * Main switch open * Close switch * Thermostats open * Check set points and thermostat connections * Bad thermostat set point or broken thermostat * Reset or replace the thermostat * No gas pressure * Restore gas pressure...
- Page 40 APPENDIX metal conduits wherever possible. Use high-voltage cables, non-scree- ned. KROM-SCHROEDER IFW15 FLAME DETECTOR Fig. 1 For flame detection For multi-flame control for intermittent operation in conjunction with the flame control units IFS Ionisation or UV control ...
- Page 41 SIEMENS LGB 21/22.. CONTROL BOX Conditions for starting up the burner: The burner control must not be locked out. Function The contacts of the gas pressure switch ”GP", the temperature or The programme run is shown in the diagrams. The required and permissi- pressure switch “W"...
- Page 42 Specifications Command program in the event of a defect Supply voltage 220 V AC -15%...240 VAC +10% In the event of a defect the inflow of fuel is interrupted. When the block Frequency 50 Hz -6%...60 Hz +6% occurs in the preventilation time (not indicated by the symbol) the causes Consumption 3 VA may be the air pressostat LP or a premature signal of flame presence.
- Page 43 Key - internal diagram Key - programmer's diagram Block signal start-up (command from regulator “R”) Main relay with "ar" contacts burner operation Block relay with "br" contacts program start position (start up) Fuel valve waiting time Dbr1 U bolt preventilation time Unblocking button TSA safety time Detection electrode...
- Page 44 C.I.B. UNIGAS S.p.A. Via L.Galvani, 9 - 35011 Campodarsego (PD) - ITALY Tel. +39 049 9200944 - Fax +39 049 9200945/9201269 web site: www.cibunigas.it - e-mail: cibunigas@cibunigas.it Note: specifications and data subject to change. Errors and omissions excepted.
- Page 45 Siemens LMV 5x Service manual M12920CB Rev. 1 08/2009...
- Page 47 BURNERS PROVIDED WITH SIEMENS LMV5 Keys Burner Combustion head actuator Gas butterfly valve actuator Oil pressure governor actuator Air damper actuator Siemens LMV burner control Personal Computer Gas train Inverter 10 Siemens AZL User interface The control system is made of the Siemens LMV central unit (6) that performs all the burner control functions and of the Siemens AZL local programming unit (10) that interfaces the system with the user.
- Page 48 AZL display/programming unit Users can set only the LMV parameters that can be accessed without password: (see “Adjusting the temperature set-point”). The Sie- mens AZL User Interface allows programming the Siemens LMV control box and monitoring the system data. The user interface is made of: 1.
- Page 49 LMV5 program operating phases The AZL user interface, shows the program operating phases in the following order HOME RUN (Phase 10) STAND BY (Phase 12) STARTUP I (Phases 20, 21) Waiting for Start Realase STARTUP II (Phase 22) Start Fan on STARTUP III (Phase 24) Driving to Pre-purging STARTUP IV (Phases 30 ...
- Page 50 LMV5 PROGRAM STRUCTURE NormalOperation Status/Reset OperationalStat FaultHistory LockoutHistory Alarm act/deact SetpointW1 BoilerSetpoint SetpointW2 UserMaxload Fuel Date/TimeOfDay HoursRun StartCounter Operation Fuel Meter LockoutCounter O2 Module BurnerID OptgModeSelect OptgModeSelect SetLoad ManualOperation Autom/Manual/Off Times BurnerControl Configuration ValveProving ProductID SW Version GasSettings OilSettings Au-tom/Manual/Off Times RatioControl NumFuelActuators...
- Page 51 Configuration Process Data VSD Module ProductID SW Version Configuration Displayed Values O2 Module ProductID SW Version Flue Gas Recirc LC_OptgModeРежим с РМ Params & Display Ext Inp X62 U/I TempLimiter O2Ctrl/LimitrGas SystemConfig O2Ctrl/LimitrOil LC Analog Output Max.Perm.PotDiff HoursRun StartCounter Fuel Meter Updating Password BurnerID...
- Page 52 ACCESS TO SERVICE LEVELS BY PASSWORD From the main page Setpoint 80°C Act.value 78°C Standby enter the main menu by pressing the ESC key twice: the display will show OperationalStat Operation ManualOperation Params & Display. by means of the arrow keys, select “Params&Display”, press ENTER: the system will ask you to enter the proper password, if it has not been entered yet: Access w-out PW Access Serv...
- Page 53 “password logout” function os on the first level menu: press to choose “PW Logout” then press “Enter“ 1st level 3rd level 4th level 5th level 6th level Password Description level OperationalStat Operation ManualOperation Params & Display Updating PW Login Canceling the last Service access right obtained via PW Logout...
- Page 54 Pas- Descrip- 1st level 2nd level 3rd level 4th level 5th level 6th level sword tion Operatio- nalStat Identifica- BurnerID User tion of burner the product ID number is an OEM parameter, entered by the burner manifacturer and it can not be changed; it can be made of mini- mum 4 characters and maximum 15.
- Page 55 BURNER STARTUP/SHUTDOWN BY MEANS OF THE THERMOSTATIC SERIES The burner shuts down properly when the 1 and 4 terminals of the thermostatic series (X5-03.1 and X5-03.4 - terminals 3 and 4 of the burner terminal block) open. In this way, before shtudown, the burner drives to the minimum load, then the fuel valve will close. The post-purging phase will be performed if set.
- Page 56 This number can be changed and set to a value between 1 and 16, following the next procedure: 1st level 2nd level 3rd level 4th level 5th level Range Default Description Params & Menu level for making Display the parameter settings BurnerCon- Setting the burner con- trol parameters...
- Page 57 ADDRESSING THE ACTUATORS The addressing assigns to each actuator its proper function.The addressing is factory set by the burner manifacturer. If an actuator must be replaced, it is necessary to address it, otherwise the system will not work. The parameter that sets the acutator function is protected by the Service level password.
- Page 58 STANDARDIZATION OF THE MOTOR SPEED Motor standardization (speed acquisition) allows the LMV unit to control the motor rounds at the maximum frequency signal coming from the VSD. A temporary standardization is factory set only for test purpose. The definite standardization mest be perormed on site by the Service Center, before the plant test.
- Page 59 SETTING THE LOAD CONTROLLER 1st level 2nd level 3rd level 4th level 5th level 6th level Password Description Menu level Params & for making Display the parame- ter settings Settings for the internal LoadController load control- General con- figuration of Configuration the load con- troller...
- Page 60 Wiring diagram for external load controller by voltage/current signal on X62 terminals TEMP./PRES. INPUT functional earth for shield Functional earth for X62.5 connection shield connection power supply for setpoint Power supply for changeover X62.1 setpoint changeover Voltage input Voltage input DC 0..10V 0...10 V X62.2 DC 0...10 V (input 3)
- Page 61 SETTING THE TEMPERATURE OR PRESSURE PROBE If the LMV5x internal load controlled is used, a temperature or pressure probe can be connected pt terminal X60 or X61. In this case, it is necessary to set the kind of probe and its operating range. Pas- Descrip- 1st level...
- Page 62 Connecting 100 ohm / 1000 ohm temperature probes Connecting 0...10V / 4...20 mA / 0...20 mA pressure probes directly to LMV terminals directly to LMV terminals LMV5... Functional earth for X61.5 shield connection Temperature/pressure controller Functional earth for X60.5 Power supply for temp./ shield connection X61.1 pressure transmitter...
- Page 63 If a pressure probe is used, set its output signal type sent to X61 input, proceeding as follows: Pas- Descrip- 1st level 2nd level 3rd level 4th level 5th level 6th level sword tion Menu level for making Params the para- &...
- Page 64 SETTING FUNCTIONS “TL_ThreshOff” AND “TL_SD_On” Note: this function is available if a Ni1000 or Pt 1000 temperature sensor is connected to X60.3 and X60.4 terminals. TL_ThreshOff: it turns the burner off if temperature exceeds the set value. TL_SD_On: it automatically restart the burner up of temperature is lower than the set value. ATTENTION: basically, these parameters provide a function similar to the safety thermostat one, but can not replace it.
- Page 65 SETTING THE TEMPERATURE SET-POINT VALUE Note: the set-point parameter is user settable. To set the temperature set-point value, that is the generator operating temperature; proceed as follows. From the main page, enter the main menu by pressing the ESC key twice: OperationalStat Operation ManualOperation...
- Page 66 Once the temperature set-point W1 is stored, set the Switch-on (SDon) and the Switch-off (SDoff) point: Setpoint Actual value SDoff SDon To set these values, choose the item SD_ModOn (SDOn), by scrolling down the “Load controller” menu with the arrow keys and press ENTER: SetPointW1 SetPointW2...
- Page 67 IGNITION POINT Gas burner with “G” type direct ignition, with no ignitor SV = Safety valve V1 = Valve 1 V2 = Valve 2 & gas governor ACT = Gas actuator The ignition point is independent from the other curvepoints of the air/fuel ratio curve. As far as dual fuel burners, the ignition point set for the gas operation does not depend on the one set for the oil operation.
- Page 68 CAUTION! If no flame is detected atignition stage, proceed as follows: check the gas pipeline was properly bled increase setp by step (max 2° per step) the gas actuator opening at ignition position it is recommended not to exceed 20° opening. Other reason for ignition missing can be due to the following causes: electrodes ceramic insulator broken electrode ignition cable disconnection, while removing/mounting the blast tube...
- Page 69 If the pilot flame does not appear within the first safety time, The V1 and V2 main valves will not open and the “Flame lockout” will occur. The gas actuator (ACT) is not involved during pilot ignition, anyway it is set on average values to easily pass from pilot flame to main gas valves low flame.
- Page 70 DEAFUL SETTINGS To make the startup operation easier for the Service Centre, two curvepoints are factory set (default settings): the first point (P1) is temporarly named “10% load”: the air and gas actuators opening are set on minimum values; for safety reasons, at the second point (P2) the air and gas actuators opening impostati are set on P1 same minimum values, even if P2 is temporarly named “100% load”.
- Page 71 Setting the maximum load point for the maximum output To set the maximum load point P2 according to the maximum output, proceed as follows: from menu BurnerControl RatioControl O2Contr/Guard LoadController follow the procedure shown on the next table, using the designated keys: 1st level 2nd level 3rd level...
- Page 72 Checking continuously the excess of air by means of the combustion analyser, increase by few degrees* (see Note below) the air dam- per opening and the VSD if provided. Then increase by few degrees* (see Note below) the gas butterlfy valve as well (or the fuel actuator). Go on step by step, until the but- terfly valve complete opening is reached (actuator at 90°...
- Page 73 Press Enter to confirm the value and go back to Air actuator. (Do not exit by pressing Esc from the values column because data will not be stored) Point Load Fuel Press arrows to select another actuator to be set, for example, press to choose Fuel Point...
- Page 74 Storing the curve point Point Load Fuel 90 From the actuator column, press to store the point, the display will show: Point Press Enter to confirm the point Store Enter Do not exit by means of Esc diretcly from the values column or data will not be Cancel stored.
- Page 75 Setting a new point (P3) Curva Aria/Combustibile - Менеджер Воздух / Газ - Air/Fuel curve Aria - Air - Воздух Gas - Газ inverter - инвертер Carico - нагрузка - Load (%) To store a new point, proceed as follows: Point Load 100 From the last point saved (P2), press key...
- Page 76 Point Load To choose, for instance, the new actuator Fuel Comb to be set, use keys Point Load 90 Premere Enter Point Load Fuel Load Change values by means of Point Load Fuel Supponendo di voler ridurre il combustibile ad un certo valore, per esempio a 75°, utilizzare Press Enter to confirm and go back to the actuator column, then choose the air actuator and change the values with the same pro-...
- Page 77 Point Load 100 At the end of procedure, store the new point by exiting the actuators colums by pressing Esc Fuel To store the point, the display will show: Press Enter to confirm the point Store Enter Do not directly exit by pressing Esc fromt the numeric column otherwise data will Cancel not be sotred.
- Page 78 Curva Aria/Combustibile - Менеджер Воздух / Газ - Air/Fuel curve Aria - Air - Воздух Gas - Газ inverter - инв ертер Carico - нагрузка - Load (%) Note: in case of burners provided with VSD, it is recommended not to go below 50% the motor speed.
- Page 79 Cold start thermal shock (CSTP) If there is a steam boiler or a boiler that must start up cold in the plant and to avoid thermal shocks a slow heating is required for the boi- ler by mantaining the burner at the minimum output, the automatic function “Cold start thermal shock” can be performed insted of the manual operation at minimum load.
- Page 80 1...63 min Cold start thermal MaxTme- shock protection, Service 3 min Stage maximum time per step (multistage) Cold start thermal shock protection deac- ThresholdOff 1...100% Wcurrent Service tivation level referred to the current setpoint (Wcurrent) deactivated Select extra sensor for Additional- Pt100 deactivated...
- Page 81 BURNER MANUAL OPERATION The operator can decide if choosing burner manual operation at a settable fixed load or modulating operation through the automatic load controller, then can also set the burner shutdown by means of the “burner off” function. Choose the type of operation (Au-tom / Manual / Off). 1st level 2nd level 3rd level...
- Page 82 ELECTRICAL CONNECTIONS AT 230 V Terminal Blocks LMV51.300B2 / LMV52.200B1 / LMV52.200B2 / LMV52.240B2 X 70 X 71 X 72 X 73 GA S M OT O R S PE ED IN P UT FU E L M E TE R I NP UT V AR IAB LE S PE ED D RI VE X8-01 X9-01...
- Page 83 Terminal Description of connection termi- Connection symbol Electrical rating group nals AC 230 V +10 % / -15 %, 50...60 PIN1 Fan motor contactor Hz, 1 A, cos.0.4 X3-01 AC 230 V +10 % / -15 %, 50...60 PIN2 Alarm Hz, 1 A, cos.0.4 AC 230 V +10 % / -15 %, 50...60 PIN1...
- Page 84 Terminal Description of connection Connection symbol Electrical rating group terminals PIN1 Protective earth (PE) Pressure switch min-oil AC 230 V +10 % / -15 %, PIN2 (DWmin-oil) 50...60 Hz, Imax 1.5 mA X5-01 Power signal for pressure AC 230 V +10 % / -15 %, PIN3 switch-min-oil (DWmin-oil) 50...60 Hz, Imax 500 mA...
- Page 85 Terminal Description of connection termi- Connection symbol Electrical rating group nals PIN1 Protective earth (PE) PIN2 Neutral conductor (N) X7-01 AC 230 V +10 % / -15 %, 50...60 PIN3 Fuel valve 2 (oil) Hz, 1 A, cos.0.4 PIN1 Protective earth (PE) PIN2 Neutral conductor (N) X7-02...
- Page 86 Terminal Description of connection termi- Connection symbol Electrical rating group nals AC 230 V +10 % / -15 %, 50...60 PIN2 Firing on oil Hz, 1 A, cos.0.4 X8-01 AC 230 V +10 % / -15 %, 50...60 PIN1 Firing on gas Hz, 1 A, cos.0.4 PIN4 Protective earth (PE)
- Page 87 Termi- Description of connection termi- Connection symbol Electrical rating nals group AC 230 V +10 % / -15 %, 50...60 Hz, PIN4 Neutral conductor (N) max 1 mA PIN3 Power signal transformer X10-01 AC 12 V +10 % / -15 %, 50...60 Hz, PIN2 AC power signal GO max 1.2 mA...
- Page 88 (functional PIN4 earth) AC power supply from transformer PIN3 AC 12 V +10 % / -15 %, 50...60 Hz to LMV5... system PIN2 Reference ground (PELV) AC power supply from transformer PIN1 AC 12 V +10 % / -15 %, 50...60 Hz to LMV5...
- Page 89 PROGRAMMING THE VSD To program the VSD, use the BOP interface panel. BOP - SED2 The BOP allows setting the parameters in order to set the VSD specifically for the motor used It has keys and a 5 position LCD: it shows the parameter numbers rxxxx or Pxxxx, the parametric values, the paramter unit (i.e.
- Page 90 Description of the SED2 VSD key functions Display/keys Functions Descriptions The LCD (5-digit display for BOP, multiline clear text display for AOP) shows the settings Status display presently used by the VSD or used to parameterize the VSD). Pressing this button starts the VSD. This button is enabled for manual mode as part of the Start motor factory setting.
- Page 91 Programming To enter the programming mode, proceed as follows: press key “P” message Г000 will be displayed; press until, parameter “P0010” is displayed; press “P” to enter the page then by pressing change function from 0 to 1 to program the quick pages; press “P”...
- Page 92 17 press to choose “IN001” (Manual mode supply), choose 1 (input signal from BOP for manual mode operation); 19 the choose page “P0756” (Type of input signals) 20 press to enter “IN000” 21 set 2 (to select the 0÷20 mA input signal) then press P and again.
- Page 96 C.I.B. UNIGAS S.p.A. Via L.Galvani, 9 - 35011 Campodarsego (PD) - ITALY Tel. +39 049 9200944 - Fax +39 049 9200945/9201269 web site: www.cibunigas.it - e-mail: cibunigas@cibunigas.it Note: Specifications and and data subject to change. Errors and omissions excepted.
- Page 97 Siemens LMV 5x User manual M12914CA Rev.0 03/2008...
- Page 99 SIEMENS LMV CONTROLLED BURNERS Keys Burner Combustion head actuator Gas butterfly valve actuator Oil pressure governor actuator Air damper actuator Siemens LMV burner control Personal Computer Gas train Inverter 10 Siemens AZL User interface The control system is made of the Siemens LMV central unit (6) that performs all the burner control functions and of the Siemens AZL local programming unit (10) that interfaces the system with the user.
- Page 100 USER SETTINGS Go on adjusting the burner. Users can set only the LMV parameters that can be accessed without password: (see “Adjusting the temperature set-point”). The Siemens AZL User Interface allows programming the Siemens LMV control box and monitoring the system data. The user interface is made of: 1.
- Page 101 Start-up procedure Turn the burner on according to the following: ual fuel burners: choose the requested fuel by means of the related control panel switch one fuel burners: turn the burner on by means of the burner main switch (placed on the burner control panel) the LMV controller starts the system test cycle: the AZL display shows the System Test message;...
- Page 102 Setpoint 80°C value 78°C Load Main page Set point: temperature set-point Act value: actual temperature value Load: load percentage (burner output) Flame: percentage of flame detection current. By pressing the ENTER key the display shows the second page: Fuel VSD 0.0 Ld 0.0 Second page Fuel: it shows (in degrees) the fuel actuator position.
- Page 103 Fault History To visualise the Fault History, select it and press the ENTER key. The message will be as: 1 Class: 05Gas Code BF Phase: 10 Diag.: 00 Lod: Start No. alternating by an error message as: O2 control and limiter automat deactivated To see the other Fault History pages, press the arrow keys.
- Page 104 Access w-out PW Access Serv Access OEM Access LS by means of the arrow keys, select “Access w-out pass” (access without password - user level), confirm by pressing ENTER. The other levels require password reserved to the Technical Service, to the Manifacurer, etc. The menu accessed without password is the following: BurnerControl RatioControl...
- Page 105 SetPointW1 SetPointW2 SD_ModOn SD_ModOff the display will show: SD_ModOn Curr: 1.0% New: 1.0% The deafult value for this parameter is1% that is, the burner will light again at a temperature 1% lower than the set-point. Change value, if needed, by means of the arrow keys; press ENTER to confirm and the press ESC to exit. Press only ESC to exit without changing.
- Page 106 Times Languages DateFormat PhysicalUnits Times: it sets the “Summer (SUM) Time / Winter (WIN) Time” operation and the continent (EU - Europe; US - United States) Sum/Winter Time Time EU/US choose the Summertime/Wintertime mode desired and cofirm by pressing ENTER; press ESC to exit. Set the time zone (Time EU/US) in the same way.
- Page 107 Cold start thermal shock (CSTP) If there is a steam boiler that must start up cold in the plant, the fireman will heat the boiler keeping the burner at the lowest output to prevent thermal shocks. The LMV control box provides the CSTP (Cold Start Thermal Schock) function that is already set by the Technical service (access by reserved password).
- Page 108 SPARE PARTS Desription Code SIEMENS LMV51.100 - 110V BURNER CONTROL 2020460 SIEMENS LMV51.100 - 230V BURNER CONTROL 2020456 SIEMENS LMV51.200 - 110V BURNER CONTROL 2020463 SIEMENS LMV51.200 - 230V BURNER CONTROL 2020457 SIEMENS LMV52.200 - 110V BURNER CONTROL 2020461 SIEMENS LMV52.200 - 230V BURNER CONTROL 2020459 SIEMENS PLL52.110 O2 PCB FOR LMV52 2022111...
- Page 112 C.I.B. UNIGAS S.p.A. Via L.Galvani, 9 - 35011 Campodarsego (PD) - ITALY Tel. +39 049 9200944 - Fax +39 049 9200945/9201269 web site: www.cibunigas.it - e-mail: cibunigas@cibunigas.it...
- Page 113 COD. M07979CD rel. 3.2 01/13 RECOMMENDATIONS FOR LMV5x CONNECTIONS Connections affected by EMC noises are related to the bus cable (actuator line cable, PLL52), detection probe cable, speed sensor cable, 4-20mA signal cable that controls the VSD. Input and power cables (400V e 230V) must be laid separately from the signal cables. The bus cable between control panel and burner and between burner and PLL52 board (used when O2 trim control must be perfomed) must be laid separately and far from power cables.
- Page 114 Annex1 – Example for motor cable...
- Page 116 Annex 2 – Example for sensor cable...
- Page 119 SIEMENS Appendix: Example for wiring, earthing and shielding the LMV5-System Cabinet Siemens MM440 CAN-Bus shielded cable X52.2 X52.4 "VSD - Fan Motor" Separate conduit & shielded line voltage cable! Separate plastic conduit X51, X50 Metal plate = FE for high voltage ign. cable X9-02 X10-01 Power...
- Page 120 Addendum 4: LMV52... with O trim control and O module General The LMV52... system is an extended LMV51... system. A special feature of the LMV52… is control of the residual oxygen content to increase the boiler’s efficiency. In addition to the features of the LMV51..., the LMV52... provides O trim control, con- trol of a maximum of 6 actuators, control of a VSD, and acquisition of cumulated fuel consumption and current fuel throughput.
- Page 121 The maximum cable length between transformer and CAN bus users is dependent on Determination of the the type of cable (cross-sectional area), the number of actuators and the type of actua- maximum cable length tor used (current). The following graphs can be used to determine the maximum CAN bus cable lengths between the transformer and group of actuators or the AZL5…, depending on the rele- vant influencing factors.
- Page 123 Example 2 LMV5... basic unit in the control panel, actuator on the burner; CAN bus cable «LMV5... → SA» > 20 m Jumper Control panel Burner ACT 1 ACT 2 ACT 3 ACT 4 Fixed internal bus termination SQM4... SQM4... SQM4...
- Page 124 Example 3a Installation of all components in the burner; CAN bus cable «LMV52... ↔ SA» > 20 m with 6 actuators and O2 module PLL52... Jumper Fixed internal ACT 1 ACT 2 ACT 3 ACT 4 ACT 5 ACT 6 bus termination SQM45...
- Page 125 Notes on example 3a / 3b CAN bus cable with LMV52... and more than 4 actuators and O2 module PLL52... On LMV52... applications with more than 4 actuators (SQM45...), a second transformer is required for powering the extra actuators. In that case, transformer 1 powers the LMV52... basic unit, the AZL5..., and the first 4 actuators.
- Page 126 O2 module In comparison with the LMV51... system, the extra components to be connected with the LMV52… system are the O module and the O sensor QGO... and, optionally, the combustion air and flue gas temperature sensors. The O module is to be connected to the basic unit via the CAN bus.
- Page 128 8 8 8...
- Page 129 ß ß ß...
- Page 130 ©...
- Page 131 Technical Data PLL52... LMV52... basic unit Refer to chapter Technical Data! Mains voltage «X89-01» AC 120 V AC 230 V PLL52... –15 % / +10 % -15 % / +10 % Safety class I with parts according to II as per DIN EN 60730-1 Mains frequency 50 / 60 Hz ±6 % Power consumption...
- Page 132 PLL52... Flue gas temperature X86.3 Shield connection Temperature sensor X86.1 Pt / LG-Ni1000 PLL52... Pt / LG-Ni1000 X86.2 Signal reference X89-01.4 Protective earth (PE) Supply air temperature X89-01.5 Power supply neutral X87.3 conductor (L) Shield connection F 6.3AT Temperature sensor X87.1 X89-01.6 Power supply live Pt / LG-Ni1000...
