7. Application and Data

7.2. Production Graphs

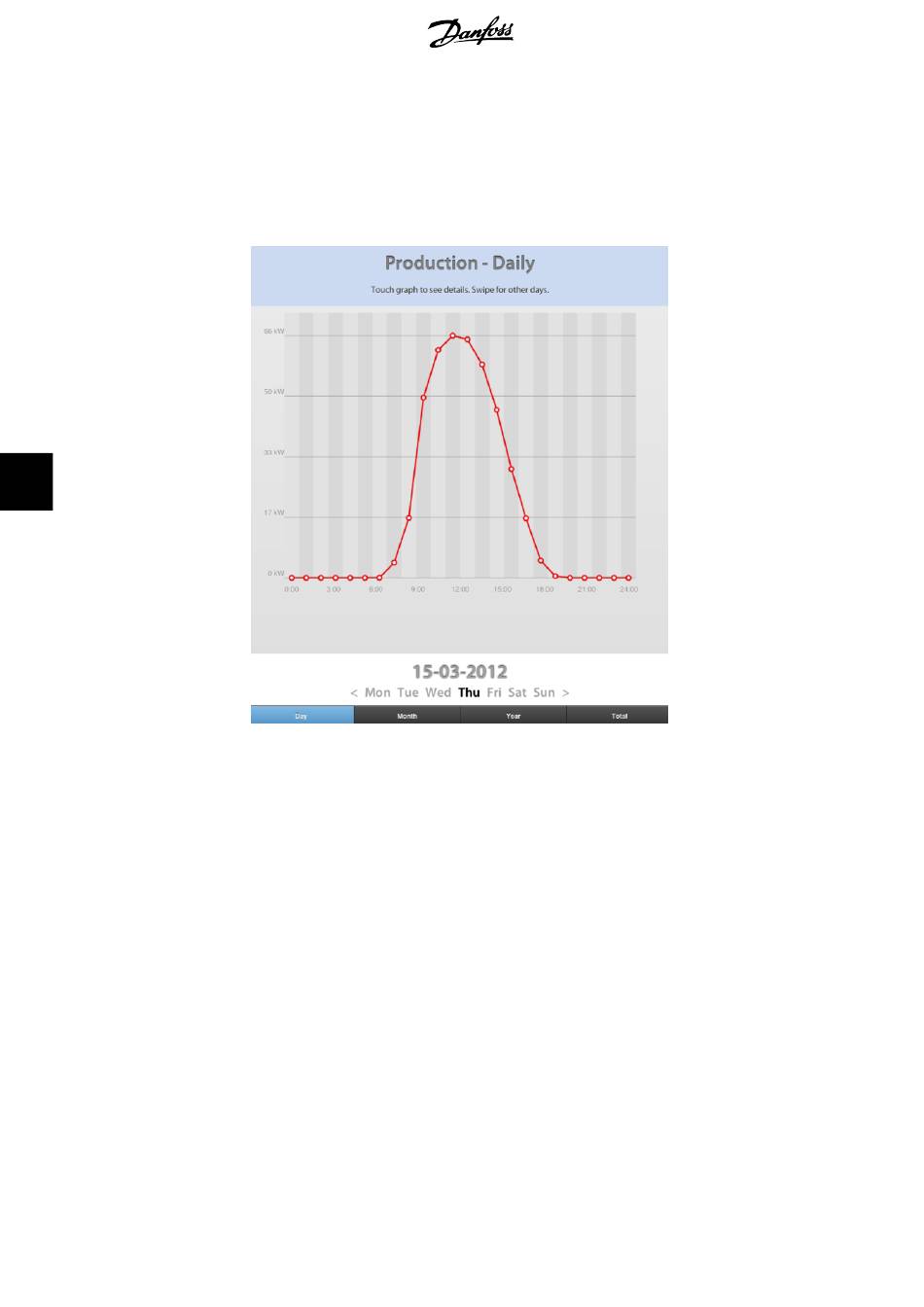

The first graph displays the inverter's daily production (power versus hour of day). Swipe graph
to see production from different days. When using the Danfoss SolarApp on a tablet or in an
Internet browser, navigation arrows will appear.
7
Illustration 7.2: Daily Production
Monthly and yearly graphs are available by clicking on the buttons in the bottom area of the
page. By touching and holding the graph, a pop-up window with details about the data point
will appear.
The total menu button will display the total production, revenue and saved CO
the entire plant.
22
L00410601-06_5b
in a list form for
