- Page 1 User Manual PCE-TC 34N Infrared Thermometer User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 22 August 2023 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Picture in-picture adjustment .................... 5 View images ........................6 Change colour palette ...................... 7 Set emissivity ........................7 More settings ..................9 Charging the battery ................9 Troubleshooting .................. 10 10 Contact ....................10 11 Disposal ....................10 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
Weight 372 g / 13 oz *Before measuring, the meter must be acclimatised in order to maintain accuracy. Delivery scope 1 x infrared thermometer PCE-TC 34N 1 x USB-C cable 1 x USB charging plug 1 x carrying case 1 x user manual... -
Page 5: Device Description

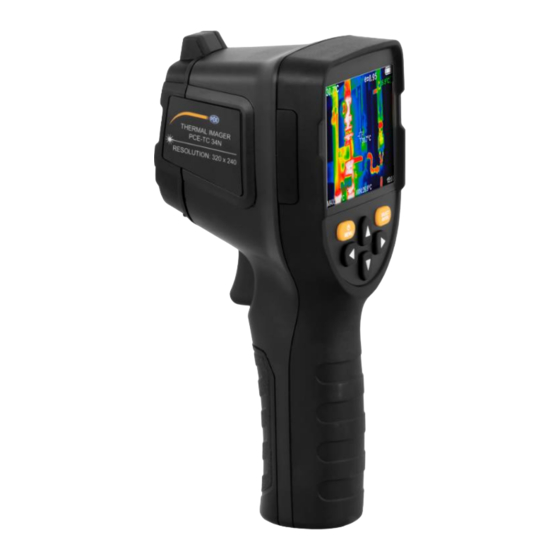

USB-C interface for charging and transferring the recorded measurement data Display On/off switch, menu key Navigation keys (arrow keys) Tripod connection "Enter" key to select or confirm the entry Battery compartment cover Trigger button to take images Infrared camera Real camera © PCE Instruments... -
Page 6: Display Description
The position for the temperature measurement in the centre of the thermal image cannot be changed. Picture-in-picture function To use the picture-in-picture function, use the keys during the measurement. 5 levels are available. © PCE Instruments... -
Page 7: Take A Picture
"Image registration" in the menu. The image can now be moved with the navigation keys. Confirm the entry with the key. When a setting is made, it is automatically closed after six seconds. Note: Set the picture-in-picture function in advance so that you can see both pictures equally well. © PCE Instruments... -
Page 8: View Images
The currently opened image can be deleted with the image. Before deleting, you will be asked whether you really want to delete the image. Select "Yes" or "No" with the navigation keys and confirm your entry with the key. © PCE Instruments... -
Page 9: Change Colour Palette
Set emissivity To set the emissivity, enter the menu and click on the icon. From there, different emissivities can be set. For faster setting, four fixed emissivities are pre-set. If necessary, a specific value can also be set. © PCE Instruments... - Page 10 0.90 Ceramics 0.90 ... 0.94 Paper 0.70 ... 0.94 Marble 0.94 Chromium oxides 0.81 Plaster 0.80 ... 0.90 Copper oxides 0.78 Mortar 0.89 ... 0.91 Iron oxides 0.78 ... 0.82 Note: This chart is for guidance only. © PCE Instruments...
-
Page 11: More Settings
If the meter will not be used for a longer period of time, the battery should be charged in between. At the latest after three months of inactivity, the battery should be charged for approx. 2 hours. © PCE Instruments... -
Page 12: Troubleshooting
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 13 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
