Summary of Contents for PCE Instruments PCE-ITF 5
- Page 1 User Manual PCE-ITF 5 Infrared Thermometer User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 31 March 2020 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
How to make a measurement .............. 4 Settings ....................5 Laser ring ....................5 10 Distance-to-spot ratio ................6 11 Emissivity ....................6 12 Replacing the batteries ................ 7 13 Warranty ....................7 14 Disposal ....................7 © PCE Instruments... -
Page 3: Safety Notes
We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments... -
Page 4: Delivery Contents
Delivery contents 1 x infrared thermometer PCE-ITF 5 2 x 1.5 V AAA battery 1 x user manual Specifications Measuring function Measurement Resolution Accuracy range 0 ... 550 °C / 32 … 1022 °F: Infrared temperature -50 ... 550 °C / 0.1 °C /... -
Page 5: Device Description

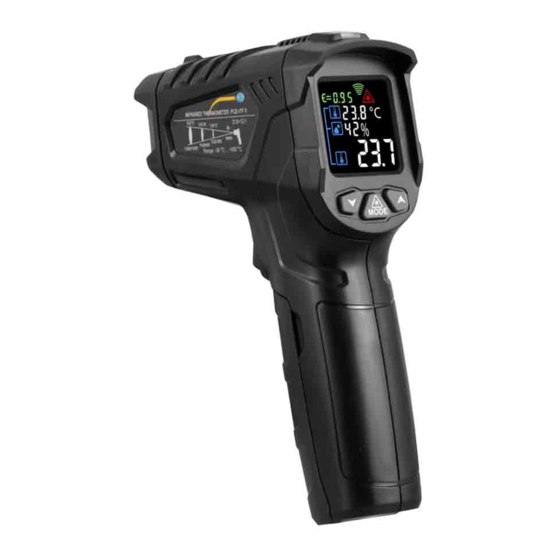

Device description Description Humidity sensor and alarm LED Display Arrow down key „MODE“ key Arrow up key Sensor system Laser Trigger Battery compartment © PCE Instruments... -
Page 6: Display Description
To make a measurement, start by targeting the surface to be measured with the meter. Then press and hold the trigger until the readings have stabilised. You can then read out the measured values from the display. © PCE Instruments... -
Page 7: Settings
"MODE" key when you are in measurement view. The warning signal for the laser appears in the display. If you now press the trigger for a measurement, the laser will be activated. As soon as the measurement is finished, the laser will also be switched off. © PCE Instruments... -
Page 8: Distance-To-Spot Ratio
0.98 Paper 0.81 … 0.83 Skin Chrome 0.81 0.75 … 0.80 Leather Copper 0.78 0.78 … 0.82 Powder 0.96 Iron Lacquer 0.97 Textiles 0.90 0.96 … 0.98 Ceramics 0.90 … 0.94 0.80 … 0.91 Snow 0.83 Plaster © PCE Instruments... -
Page 9: Replacing The Batteries
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 10 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
