- Page 1 User Manual PCE-ILD 10 Infrared Thermometer User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 10 May 2024 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Specifications ..................2 Delivery scope ..................2 Device description ................3 Display description ......................4 Making a measurement ................ 5 Settings ....................5 Additional display ................. 6 Replace batteries .................. 6 Contact ....................7 10 Disposal ....................7 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
180 x 100 x 55 mm / / 7.0 x 3.9 x 2.1" Weight 329 g / 11.6 oz with batteries Delivery scope 1 x infrared thermometer PCE-ILD 10 2 x 1.5 AA battery 1 x transport bag 1 x user manual... -

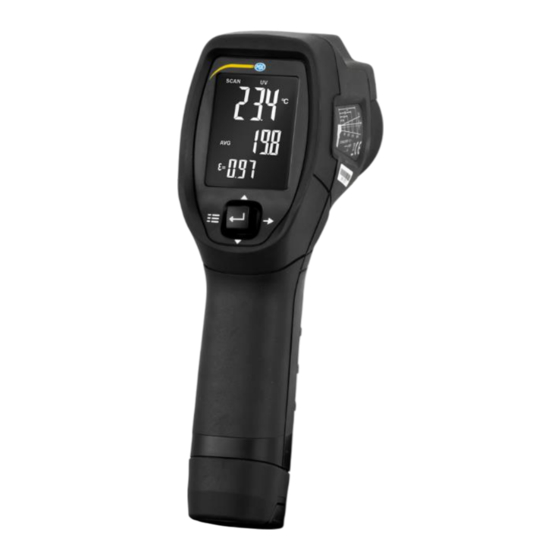

Page 5: Device Description
Device description Description Display Operating toggle Laser LED ring Infrared sensor Measurement key Battery compartment © PCE Instruments... -
Page 6: Display Description
Laser is activated Blue illuminated ring is active Limit value alarm Measured value White illuminated ring is active Temperature units Additional display for the maximum, minimum, average and differential value Set emissivity Automatic power off Battery status display © PCE Instruments... -
Page 7: Making A Measurement
As soon as the value falls below the set limit value, an audible and visual alarm is triggered. LO [NUMBER] Set the lower alarm limit value MAX/MIN/AVG/DIFF Switch the additional display on or off Set the automatic power off time in seconds © PCE Instruments... -
Page 8: Additional Display
Ensure that the polarity is correct. You can then reinsert the battery compartment and resume measurement. Only use 2 x 1.5 V AA batteries. Note: As soon as the battery compartment is removed, all settings will be reset. © PCE Instruments... -
Page 9: Contact
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 10 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
