Manual

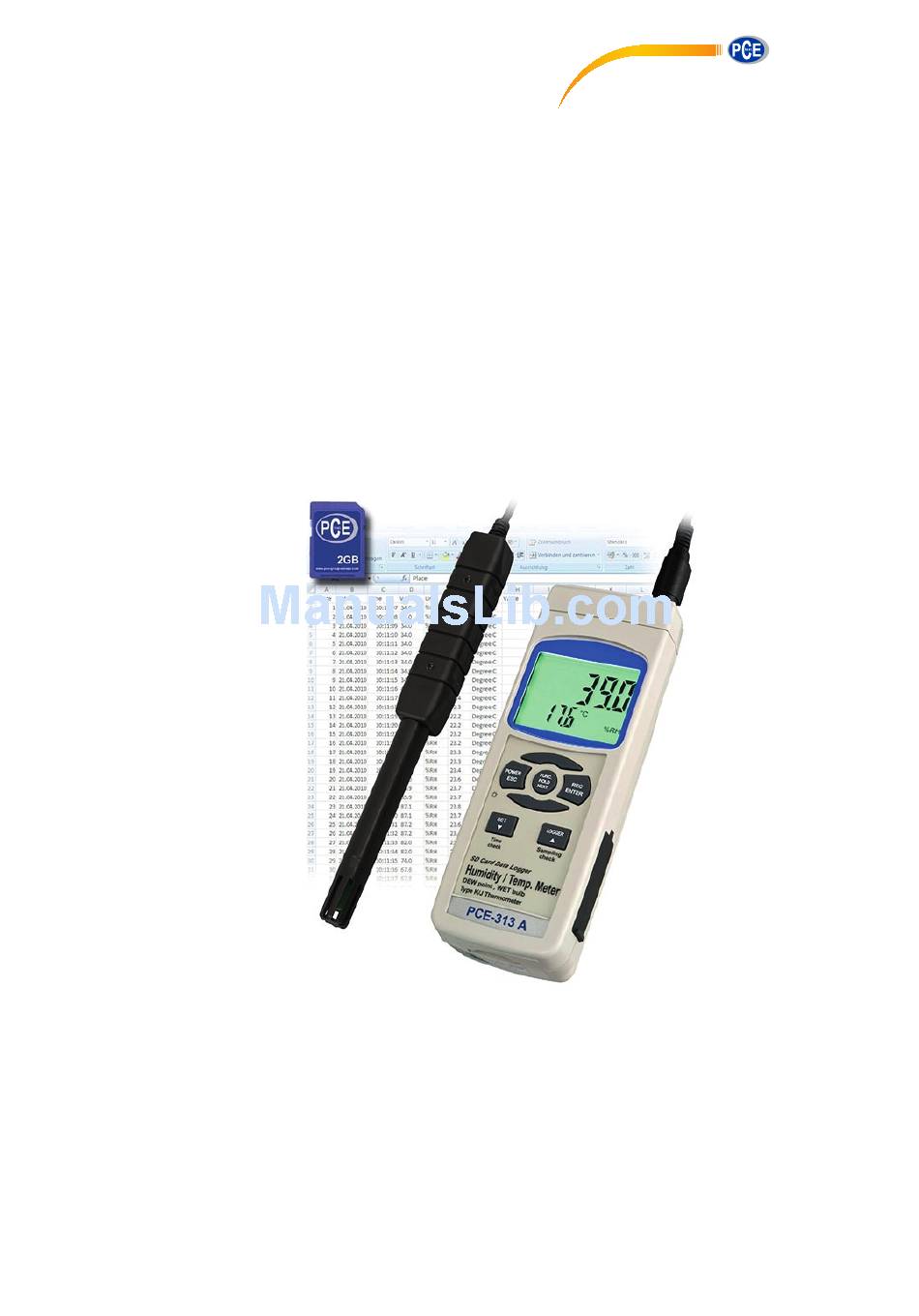

Digital Thermometer PCE-313

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-313 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCE Instruments PCE-313

Summary of Contents for PCE Instruments PCE-313

  • Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...

  • Page 2: Table Of Contents

    CONTENTS TITLE PAGE I. Safety Information ………………………………………………………………….….. 1 II. Introduction …...……………………………………………………………………….….. 1 III. Specifications ………………………………………………………………………….. 1 IV. Symbol Definition and Button Location ……………………………….. 2 V. Operation Instructions …………………………………………….…………..…… 3 4.1 Power-Up…………………………………………………………………………………..3 4.2 Humidity and Temperature Measurement…………………………………………..3 4.3 Selecting the Temperature Scale……………………………………………………….. 3 4.4 Data-Hold Operation……………………………………………………………………..

  • Page 3: Safety Information

    I. Safety Information Read the following safety information carefully before attempting to operate or service the meter. Use the meter only as specified in this manual; otherwise, the protection provided by the meter may be impaired. Environment conditions ο Altitude up to 2000 meters ο...

  • Page 4: Symbol Definition And Button Location

    recording, there will be a data set in memory, you can store as many data sets as you want until memory is full. Dimension : Meter = 186(L)×64(W)×30(H)mm ; 10.8(L)×2.5(W)×1.2(H)inch Probe = 190(L)×15(D)mm ; 7.5(L)×0.6(D)inch Accessories : Instruction Manual, 9V Battery, Carrying Case, Software, RS-232 Cable, Probe Holder.

  • Page 5: Operation Instructions

    ○ , Tripod connector ○ , Battery cabinet cover V. Operation Instructions: 4.1 Power-Up Press the power button to turn the Humidity Temperature Meter ON or OFF. When the powered it on, the LCD will show how much memory space is available to use. For example: It indicates that there are 16,000 records memory space available.

  • Page 6: Recording Interval Setup

    year→ month→ day→ hour→ minute, then press “TIME” (clock) to finish adjusting. If you want abort during a setup process, press power button to cancel. 4.7 Recording Interval Setup : 1: press and hold “MAX MIN” button and then power on the meter: 2: press “HOLD"(INTV) 3: press "REC"...

  • Page 7: Digital Output

    When the battery voltage is under proper operation requirement, the symbol will show on the LCD and the battery need to be replaced with new one. 4.12 Digital Output: The Digital Output is a 9600bps N 81 serial interface. VI. Calibration Procedure Humidity Calibration: 1.
  • Page 8 appear on the second display. 4. Insert the probe into standard chamber of 0°C(32°F) and wait the system to stabilize for 20 minutes. Press MAX/MIN button to create the calibration data. If the tester recognizes the data is within the tolerance, it will go to “CAL2” mode or it will sound 2 beeps and remain at “CAL1” mode.

  • Page 9: Rs232 Interface Software

    VII. Setup TestLink (Humidity DataLogger)—RS232 interface software: The TestLink package contains: 1.One setup CD. 2.Custom designed RS232 cable for TestLink. System Required: Windows 98/ NT 4.0/ NT2000/ XP. Minimum Hardware Required: 486-100 MHz PC compatible, 16 MB RAM ; At least 5 MB hard disk space available to install TestLink program. Recommended display resolution is 800X600.
  • Page 10 5-2. Real Time Tabular and Real Time Graph. Select Run from menu or press from the tool bar to begin real time data collection from humidity meter. You can change the data interval by editing the sampling rate box on the right hand side of tool bar (see figure 5.1).
