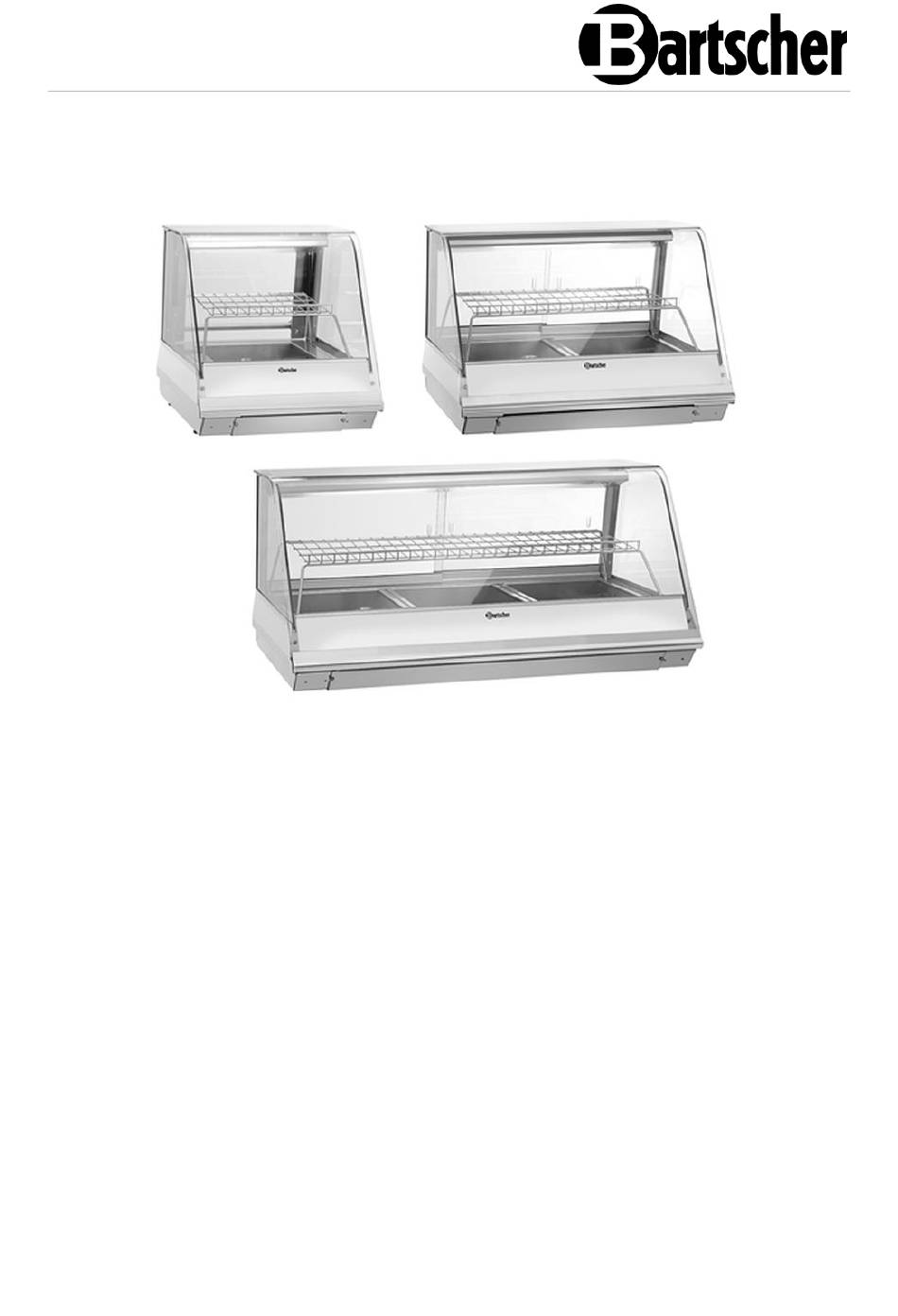

- Page 1 GN2110-R - GN1110-R - GN3110-R 305066 - 305067 - 305068...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2023-05-22...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 8 Unintended Use ..................8 General information ..................9 Liability and Warranty ................9 Copyright Protection ................9 Declaration of Conformity ................ 9 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und al lgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Hot Surfaces • Surfaces of the appliance become hot during operation. Burning hazard! High temperature remains for some time after switching the appliance off. • Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. •...
- Page 8 Safety Residual Risks Residual risks to which operating personnel may be exposed to are: Activity performed / Dangerous situation and Possible damage position of the hazards operator Use of the appliance direct or indirect contact with live electric shock parts Removing prepared contact with hot containers, dishes burns...
- Page 9 Safety Warning Signs on the Appliance DANGEROUS VOLTAGE Dangerous voltage inside. Contact leads to electric shock or burns. Disconnect the appliance from the power supply before carrying out maintenance and service work. HOT SURFACE! RISK OF BURNS! This symbol indicates areas that become very hot during operation. Do not touch hot surfaces nor components.
-
Page 10: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Keeping food warm in suitable containers. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 11: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 12: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 13: Technical Data
Technical Data Technical Data Technical Specifications Version / Characteristics 305066 / 305067 / 305068 • Temperature control: thermostat • Water tray for air moistening: no • Heating type: dry-heated • Internal lighting • Illumination: halogens • Front glass: – rounded –... - Page 14 Technical Data Name: Hot display GN2110-R 305066 Art. No.: Material: stainless steel, glass Gastronorm: 2 x 1/1 GN GN container depth, in mm: Volume, in l: Temperature range, min.–max., in °C: 30 - 110 Number of shelves: Shelf type: grid rack, stainless steel...
-
Page 15: Functions Of The Appliance
Technical Data Name: Hot display GN3110-R 305068 Art. No.: Material: stainless steel, glass Gastronorm: 1 x 1/1 GN GN container depth, in mm: Volume, in l: Temperature range, min.–max., in °C: 30 - 100 Number of shelves: Shelf type: grid rack, stainless steel Shelves dimensions (W x D), in mm: 920 x 325 Connected load:... -
Page 16: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 305067 Fig. 1 14 / 26 305066... - Page 17 Technical Data Description for Fig. 1 1. Internal lighting 2. Round front glass 3. Air ventilation openings 4. Heating element (1 pcs) 5. Maintenance area cover 6. Housing 7. Advertising and price panel with 8. Shelf lighting 9. Lifting door 10.
- Page 18 Technical Data 305066 / 305068 Fig. 2 16 / 26 305066...
-
Page 19: Installation And Operation
Installation and operation Description for Fig. 2 1. Internal lighting (2 lights) 2. Round front glass 3. Ventilation openings 4. Thermometer 5. Heating element (2 pcs) 6. GN containers bars 7. Air ventilation openings 8. Maintenance area cover 9. Housing 10. - Page 20 Installation and operation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. Remove the film slowly, so no glue residues are left.
- Page 21 Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •...
-
Page 22: Operation
Installation and operation Operation • Przed pier wsz ym uż yciem wycz yś cić urządz eni e i wypos ażenie zgodni e z e ws kazówkami z awartymi w pu nkcie 6 „Cz yszczen ie” . U waż ać, aby do ins tal acji elektr ycznej i s krz ynki roz dzi elcz ej ni e dostała si ę woda. Troc knen Si e das Ger ät and equi pment ac cor ding to! •... - Page 23 Installation and operation Appliance Start-up 1. Plug the appliance into a suitable single socket. 2. To start the hot display, introduce the following settings with the knob. 3. Rotate the knob (A) to position (B). The orange indicator light (C), the interior lighting and the advertising and price panel lighting will illuminate and the interior ventilation will start.
- Page 24 Installation and operation Keeping Food Warm 1. In the meantime, prepare the required warm food and fill appropriate GN containers or plates (serving plates, etc.) with it. 2. Place food on the shelf or on the surface for GN containers. The food will be kept warm, in the selected temperature for the required period.
-
Page 25: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. -
Page 26: Maintenance
Cleaning and Maintenance 9. If necessary, lift the front glass pane for cleaning (Fig. below). ATTENTION! To avoid possible damage to the glass pane and the handle, lift and lower the front glass pane slowly! Fig. 7 10. Wipe the outside glass pane and the appliance housing with a soft, damp cloth. 11. - Page 27 Cleaning and Maintenance Fig. 8 – clean the lamp cover (T) (Fig. 6) in order to keep the internal lighting on at all times; – clean the fan air deflector (S) and the fan blades; to do this, lift the front glass pane (M), remove the advertising panel (N) by unscrewing the screws (Q) and then unscrew the screws (R) from the air deflector (S);...
-
Page 28: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
