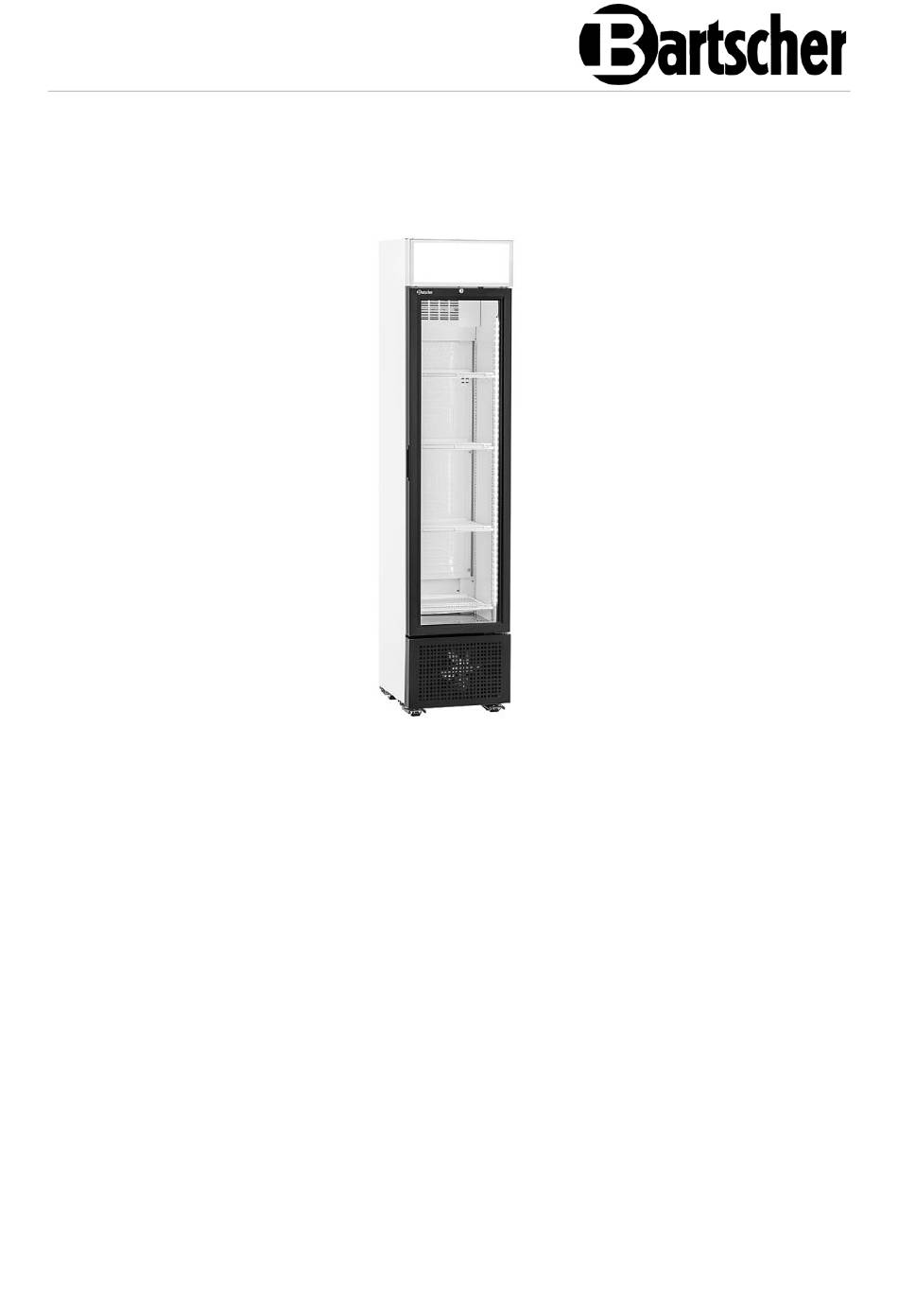

  • Page 1 GTK1-123 700836...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-05-23...

  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage ..............

  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.

  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
  • Page 7 Safety Operating personnel • This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge. • Children should be supervised to ensure that they are not playing with or switching the appliance on.

  • Page 8: Intended Use

    Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling and preparation of suitable beverages and food products. The appliance is intended for operation in maximum ambient temperature of 32°C and relative humidity of 65%.

  • Page 9: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.

  • Page 10: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.

  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Name: Glass-doored refrigerator GTK1-123 700836 Art. No.: Material: painted steel | glass | plastic PP Inner material: coated aluminium Volume, in l: Usable volume, in l: Temperature range, min.-max., in °C: 1 - 9 Ambient temperature, min.–max., in °C: 10 - 32...
  • Page 12 The set includes: – 2 keys More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2018, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. 10 / 26...

  • Page 13: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance Fig. 1 1. Digital temperature controller 2. Advertising display with LED lighting 3. Lock + key 4. Refrigerated compartment ventilation openings 5. Shelf (4 pcs) 6. Internal LED lighting 7. Guide rails (2 pairs) 8.

  • Page 14: Functions Of The Appliance

    Installation and operation Functions of the Appliance The glass-doored refrigerator can be used to cool and store necessary beverages and food products at a set temperature. Particularly in the self-service area, thanks to the illuminated advertising display, the glass-doored refrigerator catches the eye and presents products in the best light. Installation and operation Installation Unpacking / Positioning...
  • Page 15 Installation and operation • Place the appliance so that sufficient air circulation is ensured. • In order to avoid damage to the compressor, do not tilt the appliance more than 45° when positioning or transporting it. • If the appliance is to be relocated, follow the instructions below: –...

  • Page 16: Operation

    Installation and operation Operation Tips for the user • Shelves may be positioned at various heights. Arrange them adequately to the size of beverage/containers with food product, so that the inner space of the appliance is used optimally. • Beverages and food products in containers should be arranged on the shelves so that proper distances between them allow for sufficient air circulation inside the appliance.
  • Page 17 Installation and operation Before First Use 1. Before first use, clean the appliance and accessories thoroughly, following indications in section 6 'Cleaning and Maintenance'. 2. To end with, dry the appliance and accessories thoroughly. 3. Fix the enclosed shelf brackets on the guide rails, depending on the height of products to be stored.
  • Page 18 Installation and operation Digital temperature controller Messages Assigned Normal Operation Start-up Function Flashes Compressor Required Required Defrosting Required Auxiliary Appliance ON Appliance OFF output RTC clock RTC available, RTC unavailable ON if activated / deactivated RTC is (tEN=1) and at (tEN=0) or no available least 1...
  • Page 19 Installation and operation Button Functions Button Normal Operation Start-up Single press of the button – for over 3 seconds: – (ES) activates/deactivates ‘ENERGY SAVING’ mode – when pressing this button ENERGIE before ‘ENERGY SAVING’ is SAVING activated/deactivated, the display shows ’EnS’ (energy saving) or ‘nor’...
  • Page 20 Installation and operation Setpoint (required temperature) 1. Press the button for 1 second, after a while the set value starts flashing. 2. Press the button (UP) or (DOWN) to increase or decrease the value. 3. Use the button to confirm the new value. ECO mode If the button is pressed and held for at least 3 seconds, the appliance...
  • Page 21 Installation and operation 5. Finally, press the button to confirm the change and return to the parameters menu. To finally save all the modified values and exit the parameter menu, press the button and hold for 3 seconds. If you want to exit the menu without saving the modified values (exit due to the exceeded time limit), do not press any button for at least 60 seconds.

  • Page 22: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning and Maintenance Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning.

  • Page 23: Maintenance

    Cleaning and Maintenance 12. If the appliance is not to be used for a longer period of time, clean it according to the instructions above. Leave the appliance open to prevent generation of unpleasant odours inside. Maintenance We recommend you to have the appliance serviced at least once a year; if needed, we recommend entering into a service agreement.

  • Page 24: Possible Malfunctions

    Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate.
  • Page 25 Possible Malfunctions Error Possible Cause Solution Temperature inside Too little clearance between Provide for sufficient the appliance is too objects inside the appliance clearance between objects high / too low inside the appliance Appliance is overloaded Reduce the number of stored objects Incorrectly set temperature Set the temperature control...
  • Page 26 Possible Malfunctions Alarms and Prompts In the case of the alarm, the proper code flashes on the display, interchangeably with the temperature value; also, the buzzer and the alarm relay (if available) may be activated. Most alarms are reset automatically (i.e. the alarm stops when the cause of the alarm no longer exists), only some require manual reset (by disconnecting the power supply).
  • Page 27 Possible Malfunctions Alarm Buzzer and Description RESET Code Alarm Relay Inactive Defrosting in progress Automatic Inactive Initial alarm of the soiled Automatic condenser Active Alarm of the soiled Manually condenser Inactive Timer alarm Through the setting of the timer Tab. 3 700836 25 / 26...

  • Page 28: Disposal

    Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
