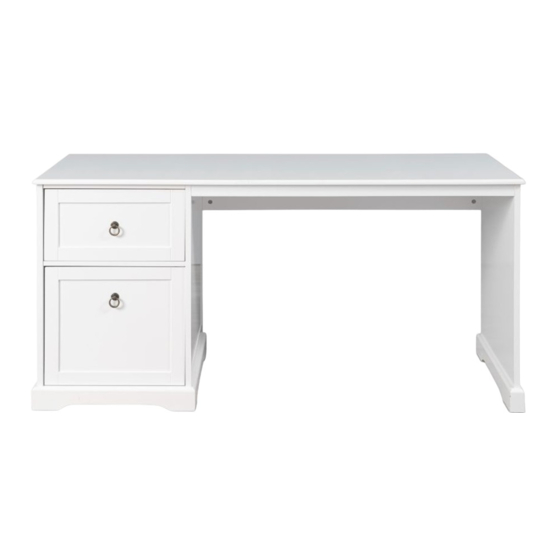

Hamptons Desk
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
39 x
39 x
22 x
bolt
locking
dowel
nut
F
CL
DL
CR
8 x
4 x
4 x
medium
L+R
L+R
screw
slide rail
slide rail
J
K
2 x
6 x
small screw
wedge

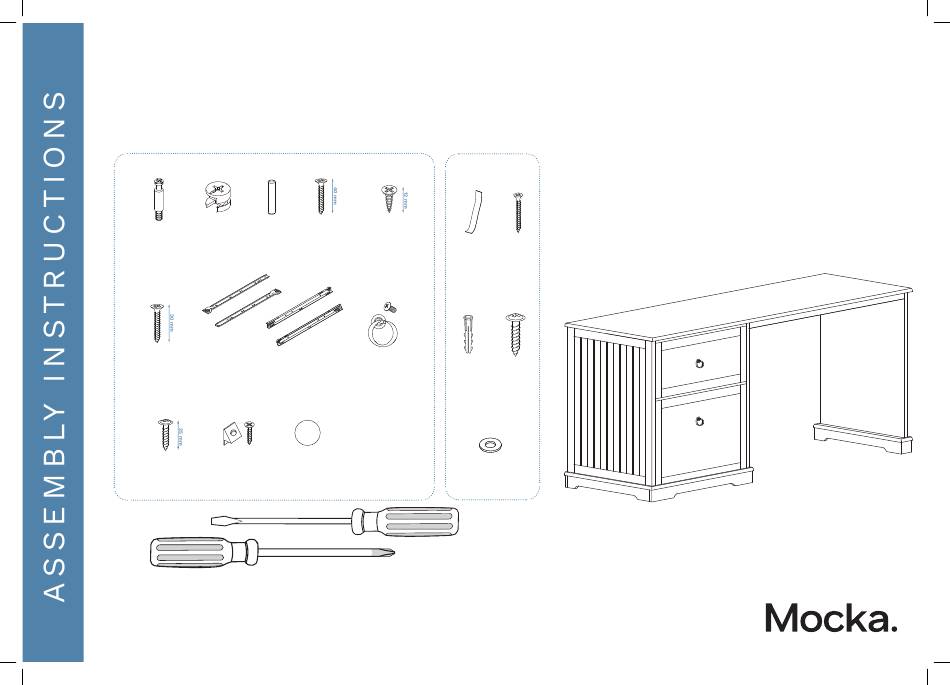

HARDWARE SUPPLIED
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz I mocka.com.au
D
E
W
13 x
20 x
long
small
1 x
screw
screw
safety
strap
I
X
DR
2 x
1 x
handle
wall
anchor
L
8 x
cover
washer
WARNING: Any furniture that is not anchored to a wall has the potential to
tip over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthpuake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with
all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those
supplied.
1 x
long
screw
Y
1 x
screw
Z
1 x
Advertisement
Related Manuals for Mocka Hamptons Desk
Summary of Contents for Mocka Hamptons Desk
- Page 1 Hamptons Desk Thank you for your purchase. WARNING: Any furniture that is not anchored to a wall has the potential to Please follow the instructions below for correct assembly. tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthpuake.
- Page 2 Hamptons Desk Attach 2 x left slide rails (CR) to panel [4] and secure with 6 x small screws (E). Insert 11 x bolts (A) into panel [1]. Attach panel [6] to panel [1] and secure Insert 4 x bolts (A) into panel [4]. Tighten with a screwdriver.
- Page 3 Hamptons Desk Attach 2 x right slide rails (CL) to panel [3] and secure with 6 x small screws (E). Insert 2 x dowels (C) to panel [5]. Attach panels [5] to panel [7] and secure Insert 4 x bolts (A) into panel [3] and [5]. Tighten with a screwdriver.
- Page 4 Hamptons Desk Insert 2 x dowels (C) into panels [8]. Attach panels [8] to panels [3] and [4] Attach 12 x bolts (A) into panels [2] and [9]. Attach 4 x dowels (C) to panels [9] and secure with 2 x locking nuts (B). Tighten with a screwdriver.
- Page 5 Hamptons Desk Insert 4 x dowels (C) to panels [3] and [4]. Attach panels [3] and [4] to panel Insert 4 x dowels (C) into panels [9] and [10]. Attach panels [2], [9] and [10] [2] and secure with 6 x long screws (D). Tighten with a screwdriver.
- Page 6 Hamptons Desk Attach panels [12] and [23] to panels [4] and [5] and secure with 6 x locking Slide panel [11] between the grooves on panels [3] and [4] to form the nuts (B). Tighten with a screwdriver. back of the unit as shown.
- Page 7 Hamptons Desk Insert 8 x bolts (A) into panels [13] and [14]. Attach panels [15], [16], Insert 6 x dowels (C) into panel [3], [4] and [5]. Attach panel [1] to panels [3], [17] and [18] to panels [13] and [14] and secure with 8 x locking nuts (B).
- Page 8 Hamptons Desk Attach 4 x slide rails (H) to panels [15], [16], [17] and [18] and secure with 8 Slide panels [20] and [22] between the grooves on panels [15], [16], [17] and x small screws (E). Attach 2 x Handles and screws (I) into panels [13] and [18] to form the base of the drawer as shown.
- Page 9 Hamptons Desk Strap Washer Wall anchor Wall screw Wall screw Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety stap (W). Fasten to wall using Attach 1 x wall strap (W) to panel [12] using 1 x screw (Y).
