- Page 1 Hello, I’ve arrived! Now that I’m here you are only one flat-pack away from transforming your home.
- Page 2 Thank you for supporting us. We believe design belongs to everyone. From materials and processes to safety testing, production and delivery, we are passionate and committed to bringing you the best possible product so you can create beautifully functional spaces to feel comfortably you. Here are a few assembly tips before you get started: Make Time Set The Mood...

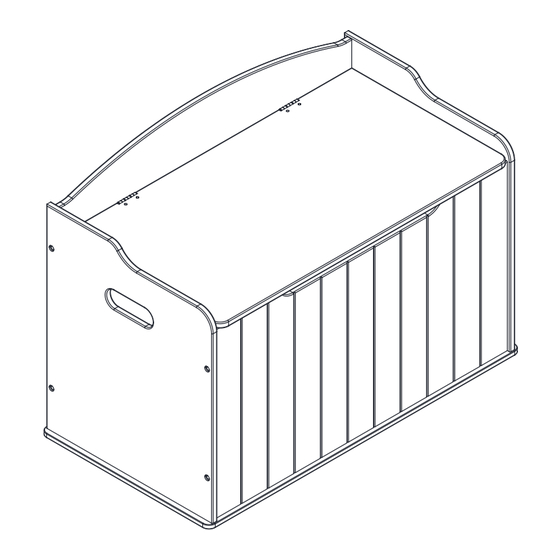

- Page 3 Hamptons Storage Box Thank you for purchasing the Hamptons Storage Box. Please follow these assembly instructions in detail. screw locking nut wrench allen key screw sticker foot pad screw spring hinge WARNING: Small parts are used to assemble the Hamptons Storage Box.
- Page 4 Hamptons Storage Box Insert 8 x locking nuts (B) to panels [5] and [6] as shown. Insert 4 x locking nuts (B) into panels [2] and [3] and [5] and [6] as shown. Attach panel [4] and secure with 4 x screws(A). Attach 6 x foot pads (J) Attach panels [2] and [3] to panels [5] and [6] and secure with 8 x screws(A).
- Page 5 Hamptons Storage Box Attach panel [1] to panel [6] and secure with 4 x screws (E) and 4 x nuts (F). Attach spring hinge (H) to panel [1] secure with 4 x screws [G]. Attach spring hinge (H) to panel [6] secrue with 4 x screws [G].
- Page 6 Hamptons Storage Box Attach 8 x stickers (I) to the screw holes. mocka.co.nz I mocka.com.au...
