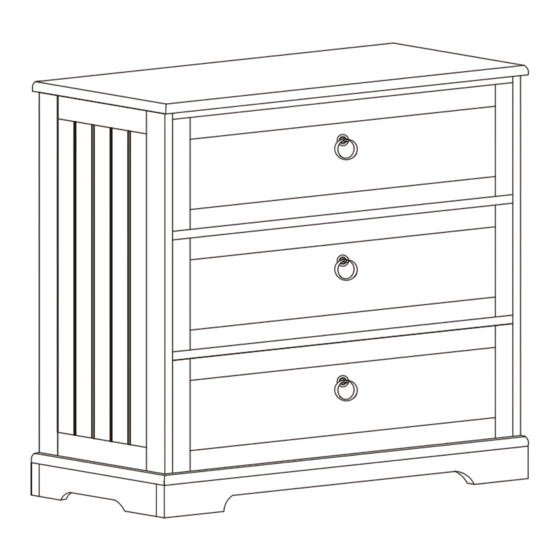

Hamptons Three Drawer
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
41 x
41 x
22 x
bolt
locking
dowel
nut
F
CL
DL
CR
15 x
6 x
6 x
medium
L+R
L+R
screw
slide rail
slide rail
J
K
3 x
12 x
small screw
wedge

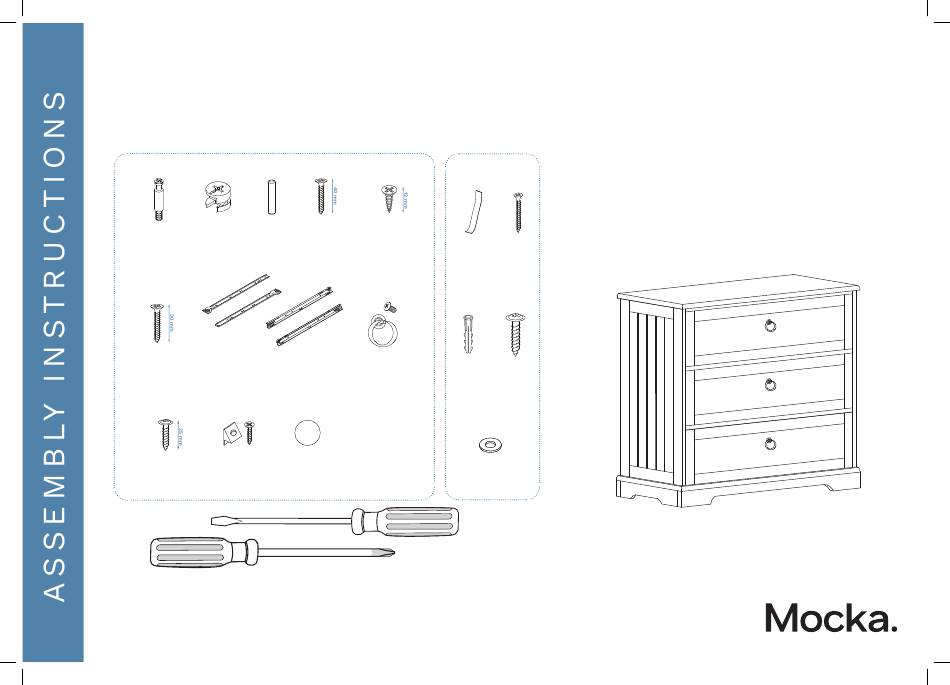

HARDWARE SUPPLIED
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz I mocka.com.au
D
E
W
4 x
24 x
long
small
1 x
screw
screw
safety
strap
I
X
DR
3 x
1 x
handle
wall
anchor
L
12 x
cover
washer
WARNING: Any furniture that is not anchored to a wall has the potential to
tip over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthpuake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with
all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those
supplied.
1 x
long
screw
Y
1 x
screw
Z
1 x
Advertisement
Related Manuals for Mocka Hamptons
Summary of Contents for Mocka Hamptons
- Page 1 Hamptons Three Drawer Thank you for your purchase. WARNING: Any furniture that is not anchored to a wall has the potential to Please follow the instructions below for correct assembly. tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthpuake.
- Page 2 Hamptons Three Drawer Insert 6 x bolts (A) into panel [1]. Attach panel [6] to panel [1] and secure Attach 3 x left slide rails (CL) to panel [3] and secure with 6 x small screws (E). with 3 x screws (J). Tighten with a screwdriver.
- Page 3 Hamptons Three Drawer Insert 4 x dowels (C) into panels [5]. Attach panels [5] to panels [3] and [4] and Attach 3 x right slide rails (CR) to panel [4] and secure with 6 x small screws (E). secure with 4 x locking nuts (B). Tighten with a screwdriver.
- Page 4 Hamptons Three Drawer Attach 16 x bolts (A) into panels [2] and 16]. Attach 4 x dowels (C) to panels [15] Insert 4 x dowels (C) to panels [3] and [4]. Attach panels [3], [4] and [7] to panel and [16]. Insert 4 x locking nuts (B) into panels [15]. Tighten with a screwdriver.
- Page 5 Hamptons Three Drawer Insert 6 x dowels (C) into panels [15] and [16]. Attach panels [2], [15] and [16] Slide panels [13] between the grooves on panels [3], [4] and [7] to form the and secure with 10 x locking nuts (B). Tighten with a screwdriver.
- Page 6 Hamptons Three Drawer Drawers x 3 Insert 4 x dowels (C) into panels [3] and [4]. Attach panel [1] to panels [3], Attach panels [10], [11] and [14] to panels [12], secure with 15 x medium screws (F). [4] and [7] and secure with 6 x locking nuts (B). Tighten with a screwdriver.
- Page 7 Hamptons Three Drawer Drawers x 3 Drawers x 3 Slide panels [9] between the grooves on panels [10], [11] and [12] to form the Attach 15 x bolts (A) into panels [8]. Tighten with a screwdriver. base of the drawer as shown.
- Page 8 Hamptons Three Drawer Drawers x 3 Drawers x 3 x 12 Attach 6 x slide rails (DL) and (DR) to panels [10] and [11], secure with 12 x small Attach panels [8] to panels [10], [11] and [14], secure with 15 x locking nuts screws (E).
- Page 9 Hamptons Three Drawer Strap Washer Wall anchor Wall screw Wall screw Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety stap (W). Fasten to wall using Attach 12 x wedges (K) to panels [13].
