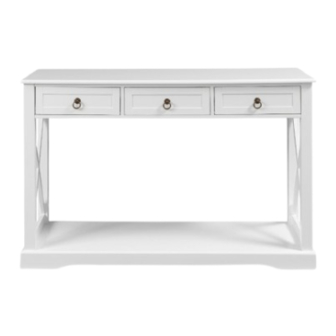

Console table
Hide thumbs Also See for Hamptons:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Hamptons
Console Table
Thank you for your purchase.
Please follow the instructions below for correct assembly
A
C
B
bolt
locking
dowel
x45
nut x 45
x 22
G
H
L + R
L + R
slide rail
slide rail
x6
x6

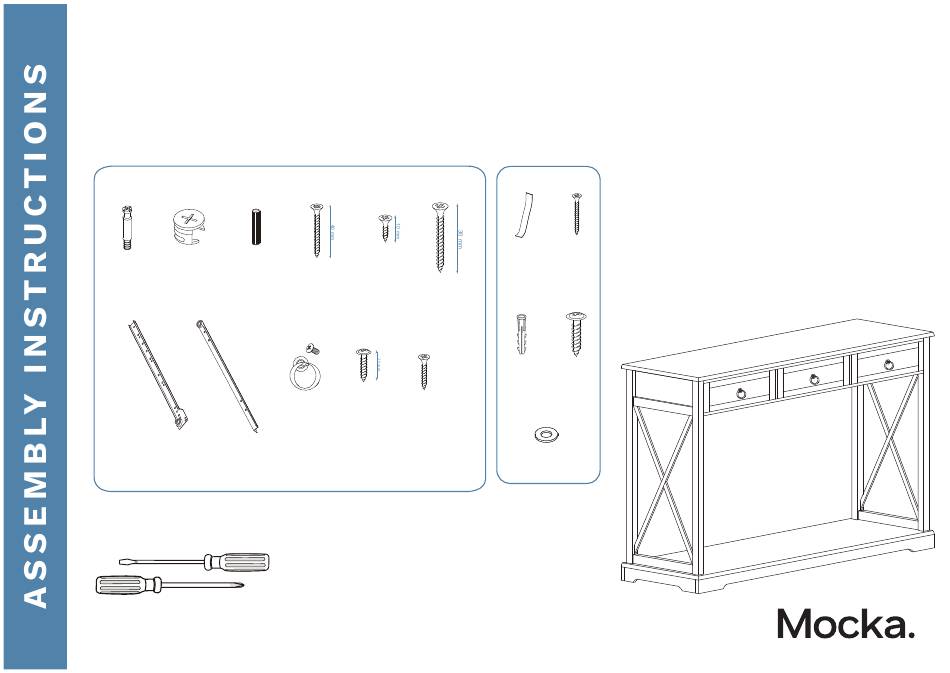

Hardware Supplied
.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
F
E
D
small
long
long
screw x24
screw x 8
screw x 12
I
J
K
long
handle
small
screw x4
screw x4
x 3
Phillips & Flathead screwdrivers and hammer required.
*We recommend using a Flathead screwdriver to tighten
all locking nuts 100% before first use.
WARNING: Any furniture that is not anchored to a wall has the
W
potential to tip over in certain circumstances, i.e. if a child
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most
safety
long
wall types, but please note that different wall materials may
strap
screw
require different fixing devices from those supplied.
x1
x1
X
Y
wall
screw
anchor
x1
x1
Z
washer
x1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hamptons and is the answer not in the manual?

Questions and answers

Related Manuals for Mocka Hamptons

Summary of Contents for Mocka Hamptons

  • Page 1 Hardware Supplied Phillips & Flathead screwdrivers and hammer required. *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 2 Attach 4 x screws (K) into panels [7] and [1]. Tighten with a screwdriver. Attach 2 x right slide rails (G) to panels [5] and secure with 4 x small screws (E). mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 3 Attach 1 x right slide rail (G) to panel [4] and secure with 2 x small screws (E). Insert 6 x bolts (A) into panels [3] and [4]. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 4 Insert 6 x dowels (C) into panels [1] and [5]. Attach panels [3], [4], to panel [9] using 1x screw (Y). [8] and [9] to panels [1] and [5] and secure with 7 x locking nuts (B). mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 5 Insert 12 x bolts (A) into panel [2]. Tighten with a screwdriver. [3] and [4], secure with 4 x long screws (D). Attach panels [5] and [9] and secure with 2 x lon g screws (D). mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 6 Insert 6 x dowels (C) into panels [2]. Attach panels [15] and [16] to panel and [16]. Insert 4 x locking nuts (B) into panels [15]. Tighten with a screwdriver. [2] and secure with 12 x locking nuts (B). mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 7 Attach panels [13] to panels [11] [10] secure with 12 x locking nuts (B). and [12], secure with 12 x medium screws (F). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 8 (W). Fasten to wall using wall anchor (X), washer (Z) and screw. Ensure the unit is balaced and steady before use. You’re done, enjoy! mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
