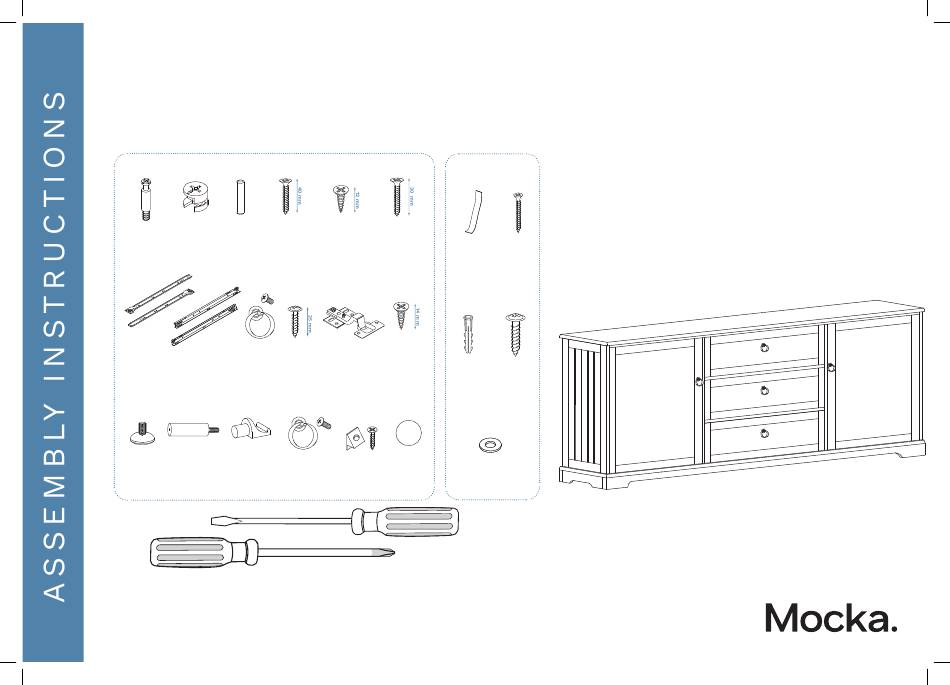

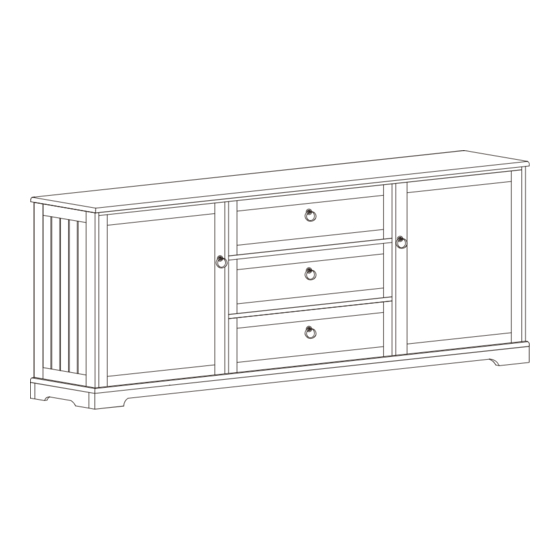

Hamptons Buffet
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
D
43 x
43 x
30 x
8 x
bolt
locking
dowel
long
nut
screw
I
J
CL
DL
CR
DR
5 x
6 x
6 x
L+R
L+R
small
3 x
slide rail
slide rail
handle
screw
M
N
O
2 x
8 x
2 x
shelf
shelf
long
plug
plug
handle
screw
HARDWARE SUPPLIED
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz I mocka.com.au
F
E
W
24 x
15 x
small
medium
1 x
screw
screw
safety
L
K
strap
X
24 x
4 x
small
1 x
hinge
screw
wall
anchor
P
Q
R
18 x
2 x
12 x
wedge
cover
washer
WARNING: Any furniture that is not anchored to a wall has the potential to
tip over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthpuake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with
all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those
supplied.
1 x
long
screw
Y
1 x
screw
Z
1 x
