Mocka Hamptons Dining Chair Assembly Instructions

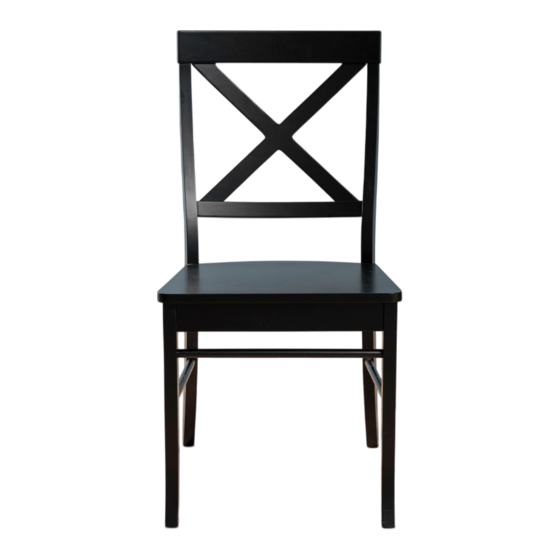

Hamptons Dining Chair

Thank you for your purchase.

Please follow the instructions below for correct assembly.

90mm screw

80mm screw

flat washer

32mm screw

x10

x11

Hardware Supplied

Phillips & Flathead screwdrivers required.

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

mocka.co.nz | mocka.com.au |

35mm screw

spring

washer

x10

allen key

Read the instructions carefully. Refer to the hardware and furniture parts list for

guidance. Be sure all of the pans are complete before assembling. Place all of the

wooden furniture parts on a clean and ﬂat soft surface to prevent scratches.

Refer to the steps provided as an assembling guide.

CAUTION :

1. Do not tighten the nuts or nut bolts completely until they are all in place.

2. To avoid thread damage, avoid overtightening nuts or nut bolts.

3. Hardware is to be kept out of reach of children.

Table of Contents

Do you have a question about the Hamptons Dining Chair and is the answer not in the manual?

Page 1 Hamptons Dining Chair Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. 90mm screw 80mm screw 35mm screw spring washer flat washer 32mm screw allen key Hardware Supplied Read the instructions carefully. Refer to the hardware and furniture parts list for guidance.
Page 2 Hamptons Dining Chair Assembly Instructions Attach 2 x front legs (2) and 1 x front stretcher (4) together and secure Attach assembled frame and 2 x side stretchers (3) to 1 x box frame (5) with 2 x 32mm screws (F) Tighten with a screwdriver.
Page 3 Hamptons Dining Chair Assembly Instructions Attach 1 x chair back (1) to assembled frame and secure frame Secure with 4 x 90mm screws (A), 4 x spring washers (D) and 4 x flat together with 2 x 35mm screws (C), 2 x spring washers (D), 2 x flat washers (E).
Page 4 Hamptons Dining Chair Assembly Instructions Attach 1 x chair seat (6) to assembled frame and secure with 5 x 32mm Once assembled lift furniture into place, do not drag. Ensure unit screws (F). Tighten with a screwdriver. is balanced and steady before use. You’re done, enjoy!
