Hamptons Change Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
C
B
bolt
locking
dowel
x48
nut x 48
x40
F
G
H
L + R
L + R
long
slide rail
slide rail
screw x 18
x8
x8

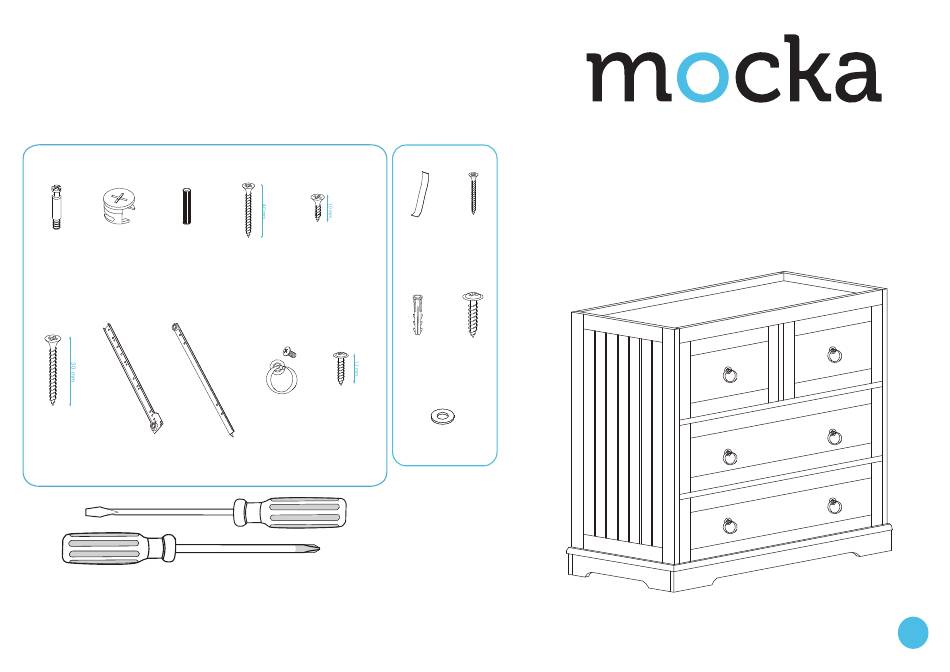

Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz | mocka.com.au
E
D
small
long
screw x32
screw x 6
I
J
anchor
small
handle
screw x20
x 6
WARNING: Any furniture that is not anchored to a wall has the potential
W
to tip over in certain circumstances, i.e. if a child attempts to climb up on
the furniture or in the event of an earthquake. Accordingly, we
recommend that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we recommend these are
used to prevent your product tipping. The fixing device provided should
fit most wall types, but please note that different wall materials
safety
long
may require different fixing devices from those supplied.
strap
screw
WARNING: Never leave a child unattended on the change table.
x1
x1
X
Y
wall
screw
x1
x1
Z
washer
x1
1
Advertisement
Related Manuals for Mocka Hamptons Change Table
Summary of Contents for Mocka Hamptons Change Table
- Page 1 Hamptons Change Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Hamptons Change Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach 2 x bolts (A) to panel [1]. Insert 4 x locking nuts (B) into panel [1] . Insert 4 x dowels (C) into panel [2] and [3] to panel [1]. Tighten with a screwdriver.
- Page 3 Hamptons Change Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach 3 x left slide rails (G) to panel [5] and secure with 6 x small screws (E). Insert 2 x locking nuts (B) into panel [4] . Attach 2 x dowels (C) to panels [1] and Attach 3 x right slide rails (G) to panel [6] and secure with 6 x small screws (E).
- Page 4 Hamptons Change Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach 1 x left slide rail (G) to panel [4] and secure with 2 x small screws (E). Insert 9 x dowels (C) into panel [1], [7] and [8] . Attach panel [1] to panels [7] Attach 1 x right slide rail (G) to panel [4] and secure with 2 x small screws (E).
- Page 5 Hamptons Change Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 9 x dowels(C) into panels [1], [7] and [8]. Attach panel [1] to panels [7] Attach 14 x bolts (A) into panels [9] and [21]. Attach 4 x dowels (C) to panels [21] and [8] and secure with 5 x locking nuts (B).
- Page 6 Hamptons Change Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 6 x dowels (C) into panels [21], [22] and [9]. Attach panels [21], [22] Attach panels [5] and [6] to panel [9] and secure with 4 x long screws (D).
- Page 7 Hamptons Change Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Drawers (x2) Drawers (x2) Insert 2 x bolts (A) into panels [11] . Slide panels [14] and [16] between the grooves on panels [12] and [13] to form thebase of the drawer as shown.
- Page 8 Hamptons Change Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Drawers (x2) Drawers (x2) Attach 8 x slide rails (H) to panels [12] and [13] and secure with 16 x small Attach panels [17] and [18] to panels [12] and [13], secure with 18 x screws (E).
- Page 9 Hamptons Change Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Strap Washer wall anchor wall screw wall screw On the back side of the set, fit boards [10] and [11] into the grooves. Use Once assembled lift furniture into place, do not drag.
