Hamptons
Bedside Table
Thank you for your purchase.
Please follow the instructions below for correct assembly
A
B
C
bolt
locking
dowel
x48
nut x 48
x40
F
G
H
L + R
L + R
long
slide rail
slide rail
screw x 18
x8
x8

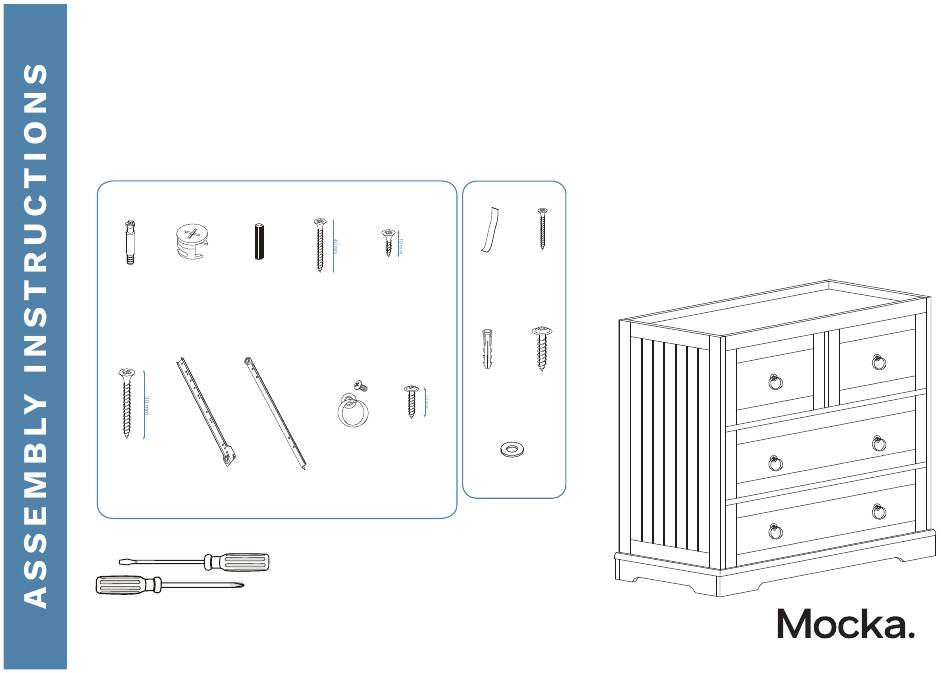

Hardware Supplied
.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
E
D
small
long
screw x 6
screw x32
I
J
handle
small
screw x20
x6
Phillips & Flathead screwdrivers and hammer required.
*We recommend using a Flathead screwdriver to tighten
all locking nuts 100% before first use.
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, i.e. if a child
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
W
your product tipping. The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
WARNING: Never leave a child unattended on the change table.
safety
long
strap
screw
x1
x1
X
Y
wall
screw
anchor
x1
x1
Z
washer
x1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hamptons and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mocka Hamptons

Summary of Contents for Mocka Hamptons

  • Page 1 18 washer Hardware Supplied Phillips & Flathead screwdrivers and hammer required. *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 2 Insert 4 x dowels (C) into panels [2] and [3] to panel [1]. Making sure panel [2] is being attached close to the arrow or on the arrows side. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 3 Attach 3 x right slide rails (G) to panel [6] and secure with 6 x small screws (E). (making sure arrow are pointing the same way). Insert 10 x bolts (A) into panels [5] and [6]. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 4 [8] to panel [6] and secure with 5 x locking nuts (B). Insert 2 x dowels (C) into panels [4] and [7] and secure with 2 x long screws(D). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 5 [21] and attach panels [22]. Insert 4 x locking nuts (B) into and [8] to panel [5] and secure with 5 x locking nuts (B). panels [22]. Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 6 Insert 6 x dowles (C) into panel [9]. Attach panels [21] and [22] to panel [9] and [6], securing with 4 x long screws (D). and secure with 10 locking nutes (B). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 7 Insert 8 x bolts (A) into panels [10]. Attach panels [12] and [13] to panel [10], the base of the drawer as shown. secure with 8 x locking nuts (B). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 8 8 x locking nuts (B). Tighten with a screwdriver. the base of the drawer as shown. Attach panels [15] to panels [11] and secure with 2 x locking nut (B). mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 9 Attach 8 x slide rails (H) to panels [12] and [13] and secure with 16 x small screws (F).Tighten with a screwdriver. screws (E).Attach 6 x Handles and screws (I) into panels [10] and [11]. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 10 (X), washer (Z) and screw. Ensure the unit is balaced and the back side of the unit using screw (Y). Tighten wih a screwdriver. steady before use. You’re done, enjoy! mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
