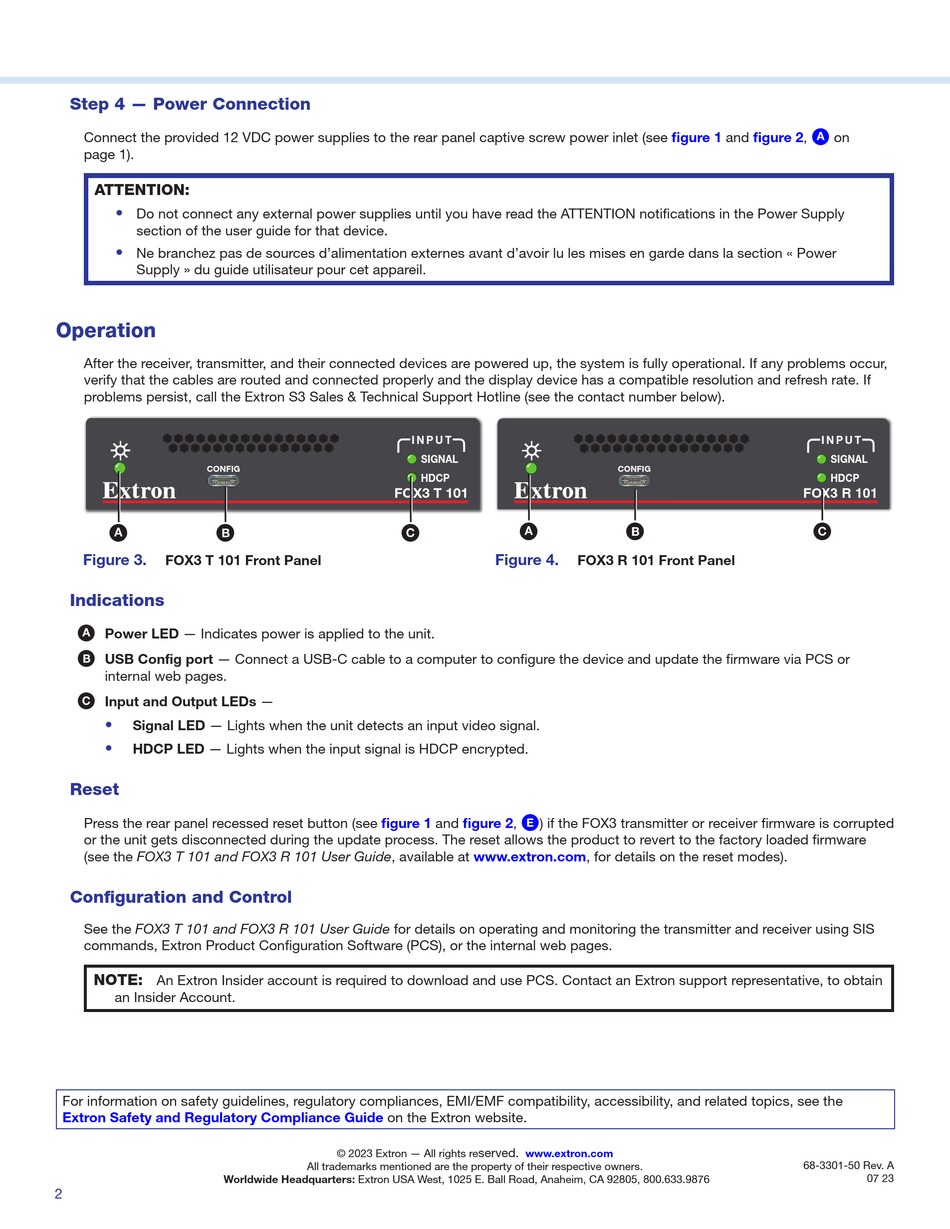

Step 4 — Power Connection
Connect the provided 12 VDC power supplies to the rear panel captive screw power inlet (see
page 1).
ATTENTION:
•
Do not connect any external power supplies until you have read the ATTENTION notifications in the Power Supply
section of the user guide for that device.
•
Ne branchez pas de sources d'alimentation externes avant d'avoir lu les mises en garde dans la section « Power
Supply » du guide utilisateur pour cet appareil.
Operation
After the receiver, transmitter, and their connected devices are powered up, the system is fully operational. If any problems occur,
verify that the cables are routed and connected properly and the display device has a compatible resolution and refresh rate. If
problems persist, call the Extron S3 Sales & Technical Support Hotline (see the contact number below).
CONFIG
e
A
A
A
B
B
B
Figure 3.
FOX3 T 101 Front Panel
Indications
A
Power LED — Indicates power is applied to the unit.
B
USB Config port — Connect a USB-C cable to a computer to configure the device and update the firmware via PCS or
internal web pages.
C
Input and Output LEDs —
•
Signal LED — Lights when the unit detects an input video signal.
•
HDCP LED — Lights when the input signal is HDCP encrypted.
Reset
Press the rear panel recessed reset button (see
or the unit gets disconnected during the update process. The reset allows the product to revert to the factory loaded firmware
(see the FOX3 T 101 and FOX3 R 101 User Guide, available at www.extron.com, for details on the reset modes).
Configuration and Control
See the FOX3 T 101 and FOX3 R 101 User Guide for details on operating and monitoring the transmitter and receiver using SIS
commands, Extron Product Configuration Software (PCS), or the internal web pages.
NOTE:
An Extron Insider account is required to download and use PCS. Contact an Extron support representative, to obtain
an Insider Account.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
2
I N P U T
SIGNAL
HDCP
FOX3 T 101
C
C
C
figure 1
and figure 2,
on the Extron website.
served.
© 2023 Extron — All rights re
All trademarks mentioned are the property of their respective owners.
figure 1
CONFIG
e
A
A
A
B
B
B
Figure 4.
FOX3 R 101 Front Panel
E
) if the FOX3 transmitter or receiver firmware is corrupted
www.extron.com
and figure 2,
A
on
I N P U T
SIGNAL
HDCP
FOX3 R 101
C
C
C
68-3301-50 Rev. A
07 23
