Summary of Contents for CareCo Pano 2.0

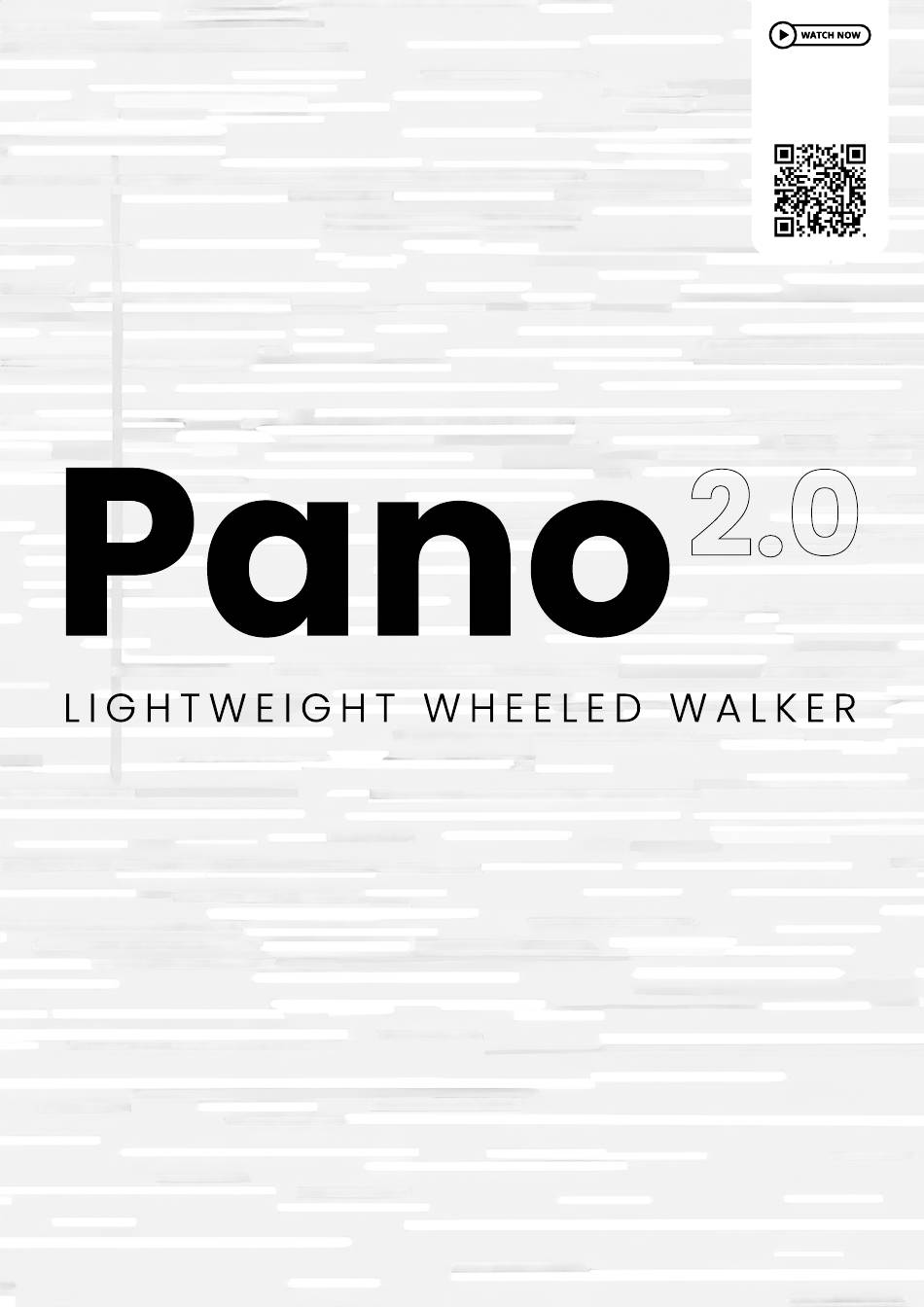

- Page 1 Scan me on your phone camera to watch our assembly video. USER MANUAL WA02010037 PRODUCT CODE:...

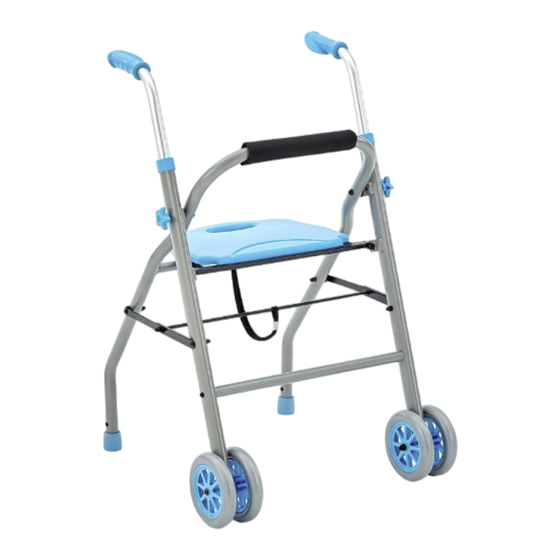

- Page 2 URL: www.careco.co.uk INTRODUCING YOUR NEW PANO 2.0 The Pano 2.0 is the ideal walking aid for users looking to stay active. Its clever zimmer frame and rollator combination design makes this walker the go-to reliable aid for users looking to gain independence in their life.
- Page 3 We recommend that you keep this user manual in a safe place for future reference. If you have any questions about use, maintenance, or safety, please contact CareCo. KEY DEFINITIONS This user manual contains warnings and suggestions marked with the following symbols: WARNING! Highlights a potentially hazardous condition/situation for the user and/or product.
-
Page 4: Table Of Contents
WA02010037 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR PANO 2.0 HOW TO USE YOUR PANO 2.0 USER INSTRUCTIONS FOLDING & UNFOLDING BACKREST COMFORT ADJUSTMENTS HANDLE HEIGHT ADJUSTMENT SEAT HEIGHT ADJUSTMENT TRANSPORTATION AND STORAGE TRANSPORTATION STORAGE LOOKING AFTER YOUR PANO 2.0... -
Page 5: Getting Started
Front Wheel Assembly Rear Leg Handle Assembly LHS Handle Assembly RHS Contact CareCo immediately if any of the listed contents are missing. We strongly recommend that you keep the box and internal packaging for the duration of your warranty period. -
Page 6: Product Components
3. Base Frame 4. Seat 5. Handle 6. Rear Leg 7. Front Wheel SETTING UP YOUR PANO 2.0 1. Remove all outer packaging before placing 2. Insert the Front Wheels into the front components on a level surface. frame base. - Page 7 An audible “click” will confirm secure. 5. Insert the backrest into the frame bracket. 6. Your new Pano 2.0 is ready to use An audible “click” will confirm secure. SUGGESTION If for any reason the walker needs to be disassembled, use the set-up...
-
Page 8: How To Use Your Pano 2.0
WA02010037 PRODUCT CODE HOW TO USE YOUR PANO 2.0 USER INSTRUCTIONS WALKING POSITION Walk with the walker close to your body, face forwards and ensure your back is straight. USER CONTROL Hold the handles with a comfortable grip and allow your arms to sit naturally by your side. -
Page 9: Folding & Unfolding
FOLDING & UNFOLDING FOLDING Pull the seat handle upwards to close the walker. UNFOLDING Push the seat handle downwards to open the walker. WARNING! Keep hands and body away from cross frame pivot to avoid possible pinch points. BACKREST FOLDING Lift the backrest upwards to fold the backrest. -
Page 10: Comfort Adjustments
WA02010037 PRODUCT CODE COMFORT ADJUSTMENTS HANDLE HEIGHT ADJUSTMENT To set the correct handle height, stand upright behind the walker with arms by side. Adjust the height of the hand grips so they are level with the users’ wrists. 1. Loosen the star knob by turning it anticlockwise, then remove it from the handle bracket. -
Page 11: Transportation And Storage
Store the product in a cool and dry environment. Do not store in extreme temperatures. WARNING! Storing the product in extreme temperatures can cause premature rusting & damage. LOOKING AFTER YOUR PANO 2.0 CLEANING To keep the walker in optimal condition, it should be cleaned regularly with a damp cloth and/or mild soap. -
Page 12: Maintenance Schedule
REPAIRS Certain walker components can be repaired by the user with guidance provided by CareCo. Other components can only be repaired/replaced by a service technician. If for any reason the walker requires repair due to a defect, contact CareCo immediately. -
Page 13: Warnings & Technical Information
WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS OVERALL LENGTH 550MM OVERALL WIDTH 610MM MAXIMUM/MINIMUM HANDLE HEIGHT 790-950MM FOLDED LENGTH 585MM FOLDED WIDTH 160MM FOLDED HEIGHT 880MM FRONT WHEEL DIAMETER 6” PRODUCT WEIGHT 4.7KGS WEIGHT CAPACITY 125KGS SEAT DEPTH 240MM SEAT WIDTH 365MM SEAT HEIGHT 17.5MM... -
Page 14: Product Reissuing
RECYCLING & DISPOSAL Disposal or recycling of the product should be completed through an approved distributor or disposal facility. (Local disposal & recycling regulations may apply) Contact CareCo if further advice is needed regarding recycling & disposal. MATERIAL Upholstery: Foam... -
Page 15: Intended Use
INTENDED USE This product is intended for users who experience difficulty in walking and/or have reduced mobility. INTENDED USER To aid a user with mobility limitations to move around safely. INTENDED ENVIRONMENT This product is designed to be used both indoors and outdoors on firm, level ground. Take care when using the product in inclement weather conditions. -
Page 16: General Warnings
WA02010037 PRODUCT CODE GENERAL WARNINGS Read the following carefully to avoid damage and/or injury caused by improper operation. • Only use the walker for its intended use, incorrect use can lead to hazardous situations. • Only use the walker on even and solid surfaces •... -
Page 17: Expected Lifetime
The expected lifetime for the Pano 2.0 is 5 years providing the instructions and information within this user manual are followed. Regular cleaning, lubrication of moving parts, and tightening of loose fixings will prevent premature wear and damage and extend the product’s lifetime. -
Page 18: Warranty
Parts that have been purchased by the end user after the original warranty period has expired have a warranty period of 12 months. CareCo is not responsible if the walker requires repair or replacement as a direct result of: •... -
Page 19: Notes
NOTES... - Page 20 CareCo (UK) Limited, 1 Turing Court, Great Notley, Braintree, CM77 7AT, England Obelis, General Wahis 53-1030, Obelis UK Ltd, Sandford Gate, East ROLLATOR Brussels, Begium Point Business Park, Oxford, OX4 6LB...
