Summary of Contents for CareCo ProLite Carbon X-TRAIL

  • Page 1 USER MANUAL WA02010033 PRODUCT CODE...
  • Page 2: Read Before Use

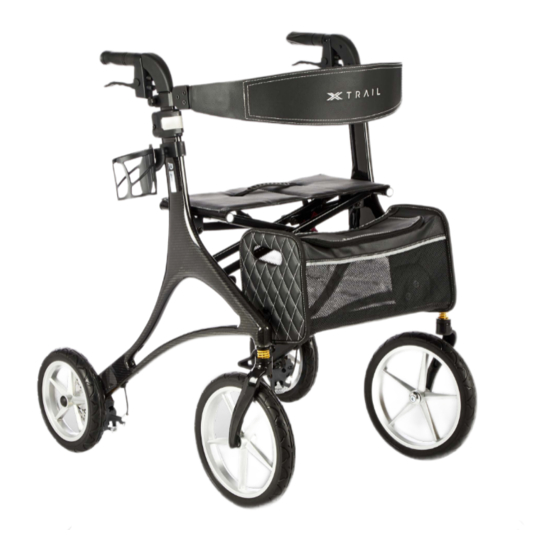

    PRODUCT CODE INTRODUCTION The proLite Carbon X-TRAIL is an ultra-lightweight carbon frame rollator expertly built to last. Added suspension, disc brakes and increased castor size make this rollator the ideal companion for both indoor and outdoor use, reducing frame vibrations and increasing user independence.
  • Page 3: Expected Lifetime

    USAGE This rollator is intended for users who experience difficulty in walking and/or have reduced mobility. Unauthorized modifications and/or installation of unapproved 3rd party components and accessories are not permitted. This rollator is suitable for indoor and outdoor use. EXPECTED LIFETIME The expected lifetime of this product is 5 years, provided the product is used for its intended purpose and all maintenance and care instructions are followed.
  • Page 4: Parts Description

    WA02010033 PRODUCT CODE PARTS DESCRIPTION 1. Hand grip 2. Height Adjustable Armrest 3. Cup Holder 4. Cane/Walking Stick Holder 5. Hand Grip Reflector 6. Brake Lever 7. Height Adjustment Button 8. Back Rest 9. Seat 10. Bag 11. Coil Spring 12.
  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS • Only use the rollator for its intended use, incorrect use can lead to hazardous situations. • Only use the rollator on even and solid surfaces • Do not overfill the product bag –Maximum load 5KG • Prolonged exposure to hot or cold temperatures can cause parts of the rollator to become hot or cold.
  • Page 6: Folding And Unfolding

    WA02010033 PRODUCT CODE FOLDING & UNFOLDING UNFOLDING FOLDING Position the rollator upright on its wheels. Position the rollator upright on its wheels. Unfold the rollator by pressing down on the Fold the rollator by pulling upwards on seat tubes (A) handle (B) An audible “click”...
  • Page 7: Handle Height Adjustment

    HANDLE HEIGHT ADJUSTMENT To adjust the handle height, open the handle bracket clasp (A). Press and hold button (B) whilst pulling upwards simultaneously. When the handle is at the desired height, release button (B). The handle will locate to the nearest height setting and an audible “click”...
  • Page 8 WA02010033 PRODUCT CODE BACKREST The backrest can be adjusted to the desired height using the left and right thumbscrews on the backrest fixture. Tighten the screw by turning it clockwise Loosen the screw by turning it anticlockwise Ensure the backrest is level and secure before using the rollator as a seat.
  • Page 9 ATTACHING REMOVING Attach the bag to the rollator by Remove the bag from the rollator by inserting the bag clips into the bag lifting the bag carry handles away from mounts on the frame. the frame. WALKING STICK/CANE & CUP HOLDER Attaching Attach the holder retaining clip to the rollator frame.
  • Page 10: Brake Cable Adjustment

    WA02010033 PRODUCT CODE ADJUSTMENTS BRAKE CABLE ADJUSTMENT Difficulty Level Moderate High The user can adjust the tension of the brake cable by rotating the thumbscrew located by the rear wheel. SUSPENSION ADJUSTMENT Difficulty Level Moderate High Tools Required 17mm Spanner x1 19mm Spanner x1 The user can adjust the stiffness of the front suspension using simple household tools.
  • Page 11: Maintenance

    MAINTENANCE By performing simple maintenance, the user can extend the life expectancy of the rollator. • Check fasteners regularly and • Check brake functionality tighten if necessary • Check wheels move freely • Check tyre condition regularly • Check upholstery for wear SPECIFICATIONS Overall height (mm) Overall length (mm)
  • Page 12: Warranty

    WARRANTY If a component requires repair or replacement due to a specific manufacturing or material defect within its warranty period, it will be repaired or replaced free of charge by CareCo. • FRAME: 5-YEAR LIMITED WARRANTY • DURABLE PARTS: 1-YEAR LIMITED WARRANTY Consumables are not covered under normal warranty circumstances unless they have clearly suffered excessive wear or damage as a direct result of a manufacturing defect.
  • Page 13: Recycling And Disposal

    RECYCLING & DISPOSAL Disposal or recycling of the rollator should be completed through an approved distributor or disposal facility. (Local disposal & recycling regulations may apply) Alternatively, contact CareCo for advice on disposal. Materials: PART MATERIAL Frame Carbon fiber Backrest...
  • Page 14 CareCo (UK) Limited, 1 Turing Court, ROLLATOR Great Notley, Braintree, CM77 7AT, England...
