- Page 1 USER MANUAL WA01081 PRODUCT CODE...
-
Page 2: Parts Description

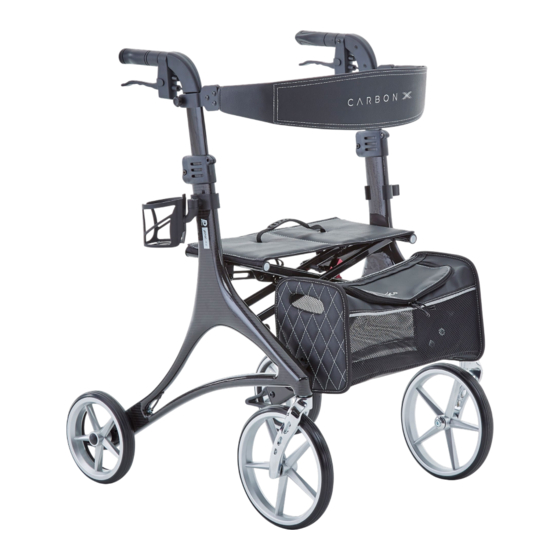

WA01081 PRODUCT CODE INTRODUCTION The Carbon X is a technical rollator to aid a user with limited mobility. It is ideal for indoor and outdoor use, helping the user to walk and prevent falls. PARTS DESCRIPTION Hand grip Height adjustable tubing Rear reflector on hand grip... -
Page 3: Safety Instructions
WA01081 PRODUCT CODE SAFETY INSTRUCTIONS • Only use the rollator for it’s intended use. • Only use the rollator on even and solid surfaces. • Make sure to regularly check fittings and fasteners and re tighten if necessary. • Do not over fill the bag. Maximum load: 5kg •... -
Page 4: Folding And Unfolding
WA01081 PRODUCT CODE FOLDING & UNFOLDING IMAGE 1 IMAGE 2 Position the rollator upright on its wheels. Open the rollator by pressing down on the tubes as shown (A) until they lock into position. Once in the unfolded position, attach the backrest in place. To fold the rollator, pull up on the seat handle (B) and push the 2 sides of the frame together. -
Page 5: Height Adjustment
WA01081 PRODUCT CODE HEIGHT ADJUSTMENT To change the height of the handles, press and hold the interlock buttons (A) on both sides and move to the hand grips up or down to achieve the correct height. When the desired height is achieved, release the interlock buttons and the hand grips will lock into a height position. -
Page 6: Adjustment Of Brakes
WA01081 PRODUCT CODE ADJUSTMENT OF BRAKES To tighten the brake cable, unscrew screw A to apply tension the brake cable. Ensure that screw B remains tight to the frame. Always test that the brakes are working before each use. IMAGE 7 SITTING Make sure the rollator has the brakes in the Do not move the... -
Page 7: Warranty
PRODUCT CODE WARRANTY The frame of your ProLite Carbon X rollator is warranted to be free of defects in material and workmanship for 5 years. For all other parts of the rollator there is a 1 year warranty. This does not extend to non-durable components, such as grips, tyres, and rubber accessories. - Page 8 CareCo UK Limited, Hubert Road, Brentwood, Essex, CM14 4JE...
