Summary of Contents for CareCo SAMBA DUO

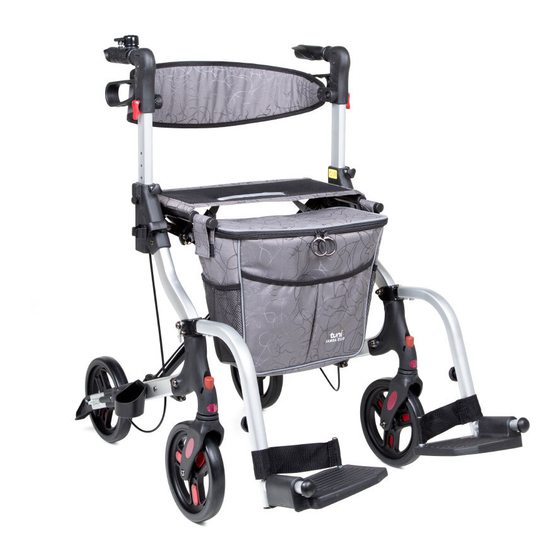

- Page 1 User Manual lightweight rollator Product Code: WA01068 CareCo, Hubert Road, Brentwood, Essex, CM14 4JE...
- Page 2 6. Warranty 1. INTRODUCTION Thank you for purchasing the Tuni Samba Duo rollator. This product is intended for use by people who need assistance with mobility with outdoor activities; and also can be used as a transport chair for a caregiver to use for people who need transportation from one place to the other in short term.
-
Page 3: Parts List
2. PRODUCT FEATURES This rollator is equipped with removable footrests which could change the rollator into a transport chair. And it has the following features: Handle height is adjustable The backrest is reversible. The footrest height is adjustable. The Rollator is foldable inwards. The front wheels roll freely and it can be quick released. - Page 4 Before Assembling the product, ensure all parts below are included. If any are missing please contact your Tuni dealer before attempting to assemble the product. Description Quantity Handgrip Handle tubing Backrest Seat Shopping bag Cane holder Footrest tubing Footrest pad Front wheel Fork for front wheel Housing for front wheel...
-
Page 5: Labelling
4. LABELLING Read carefully the instructions before use Max capacity label: 136KG Warning label for seat Capacity for shopping bag... -
Page 6: Warnings
5. GENERAL WARNINGS DO NOT install or use this equipment without first reading and understanding this instruc- tion manual. If you are unable to understand the Warnings, Cautions or Instructions, contact a healthcare professional, dealer or technical personnel before attempting to install this equip- ment - otherwise, injury or damage may occur. -
Page 7: Warnings
Warning for the knob at handle height adjustment 1. The handle height adjustment knob should be locked at all times whether being used as a rollator or a transport chair to avoid injury. 2. Before tightening the knob, always make sure the hole of the handle bar matches with the hole on the frame. -
Page 8: Frame Tubing
4. Position the handle bar into the frame tubing, and make it to the desired height, then lock with knob as shown in picture below. (Figure 4) 5. The following picture shows the rollator is opened. Note: before use, apply some load on the rolaltor handle bar to see if there is any play or movement. - Page 9 fold inward (Figure 6) Installation / Adjustment of the handle Note: when the product is exchanged from rollator to a transport chair, the handle bar needs to be pulled out of the frame, then turned by 180 degrees, then inserted into the frame again. Handle this process with care in order to protect the brake system.
- Page 10 Lock of the brake Push DOWN on the bottom portion of the brake handle as shown until an audible “click” » is heard as shown in Figure B. Figure A (To be adjusted) Figure B (Locking position) Activate the brake 1.
- Page 11 Instruction of using footrest Place the U-shapped part to the Upper bolt in the front wheel part as shown in Figure 7. The footrest pad could be adjusted in height in order to fit with a comfortable position for the end user.
-
Page 12: Warranty
Quality / Warranty Declaration Products are to be fit for purpose and of excellent quality and performance. For valid warranty claims CareCo (UK) Ltd will, at their discretion, replace / repair / refund items mutually agreed to be defective. The scooter’s warranty is as follows:- Frame: Two year limited warranty »...
