- Page 1 USER MANUAL WA02022 PRODUCT CODE...
-
Page 2: Parts Description

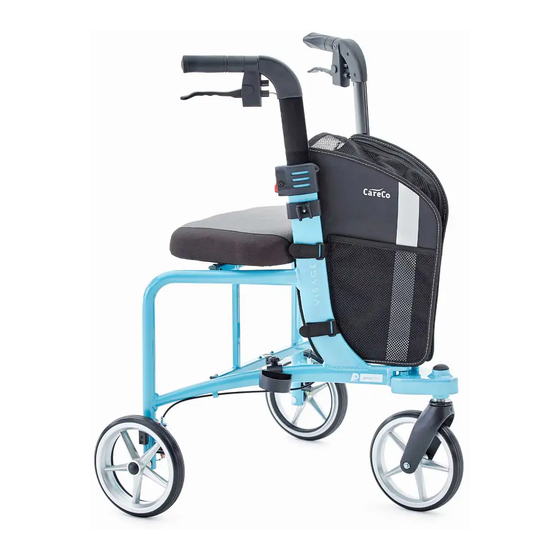

WA02022 PRODUCT CODE INTRODUCTION The Visage is a tri-walker to aid a user with limited mobility. It is ideal for in- door and outdoor use, helping the user to walk and prevent falls. PARTS DESCRIPTION Hand grip Height adjustable tubing Rear reflector on hand grip Brake lever... -
Page 3: Safety Instructions
WA02022 PRODUCT CODE SAFETY INSTRUCTIONS • Only use the tri-walker for it’s intended use. • Only use the tri-walker on even and solid surfaces. • Make sure to regularly check fittings and fasteners and re tighten if necessary. • Do not over fill the bag. Maximum load: 5kg •... - Page 4 WA02022 PRODUCT CODE ASSEMBLING THE TRI-WALKER 1 - Stand the tri-walker 2 - Take the seat, and slot 3 - Fasten the seat in place upright. the seat groves (A) into the using the screw provided (B). tri-walker frame. UNFOLDING THE TRI-WALKER Stand the tri-walker upright and push the 2 rear wheels apart (IMG 1), make the sure folding bar below the seat is flat and that the locking clip (C) has attached securely to the...
-
Page 5: Height Adjustment
WA02022 PRODUCT CODE HEIGHT ADJUSTMENT To change the height of the handles, press and hold the interlock buttons (D) on both sides and move to the hand grips up or down to achieve the correct height. When the desired height is achieved, release the interlock buttons and the hand grips will lock into a height position. -
Page 6: Adjustment Of Brakes
WA02022 PRODUCT CODE ADJUSTMENT OF BRAKES IMAGE 6 To tighten the brake, unscrew the brake cable adjuster (E) to add tension to the cable. Ensure that the stopper bolt (F) is tight to the frame. Always test that the brakes are working before each use. -
Page 7: Warranty
WA02022 PRODUCT CODE WARRANTY The frame of your proLite Visage tri-walker is warranted to be free of defects in material and workmanship for 10 years. For all other parts of the tri-walker there is a 1 year warranty. This does not extend to non-durable components, such as grips, tyres, and rubber accessories. - Page 8 CareCo UK Limited, Hubert Road, Brentwood, Essex, CM14 4JE...
