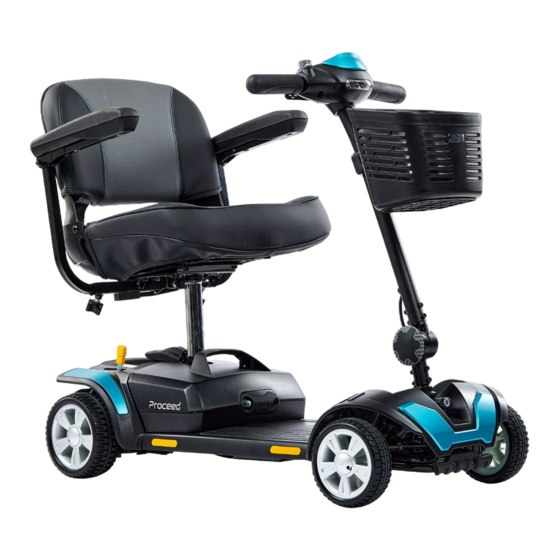

CareCo X-GO Proceed MS01010034 User Manual

Mobility scooter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

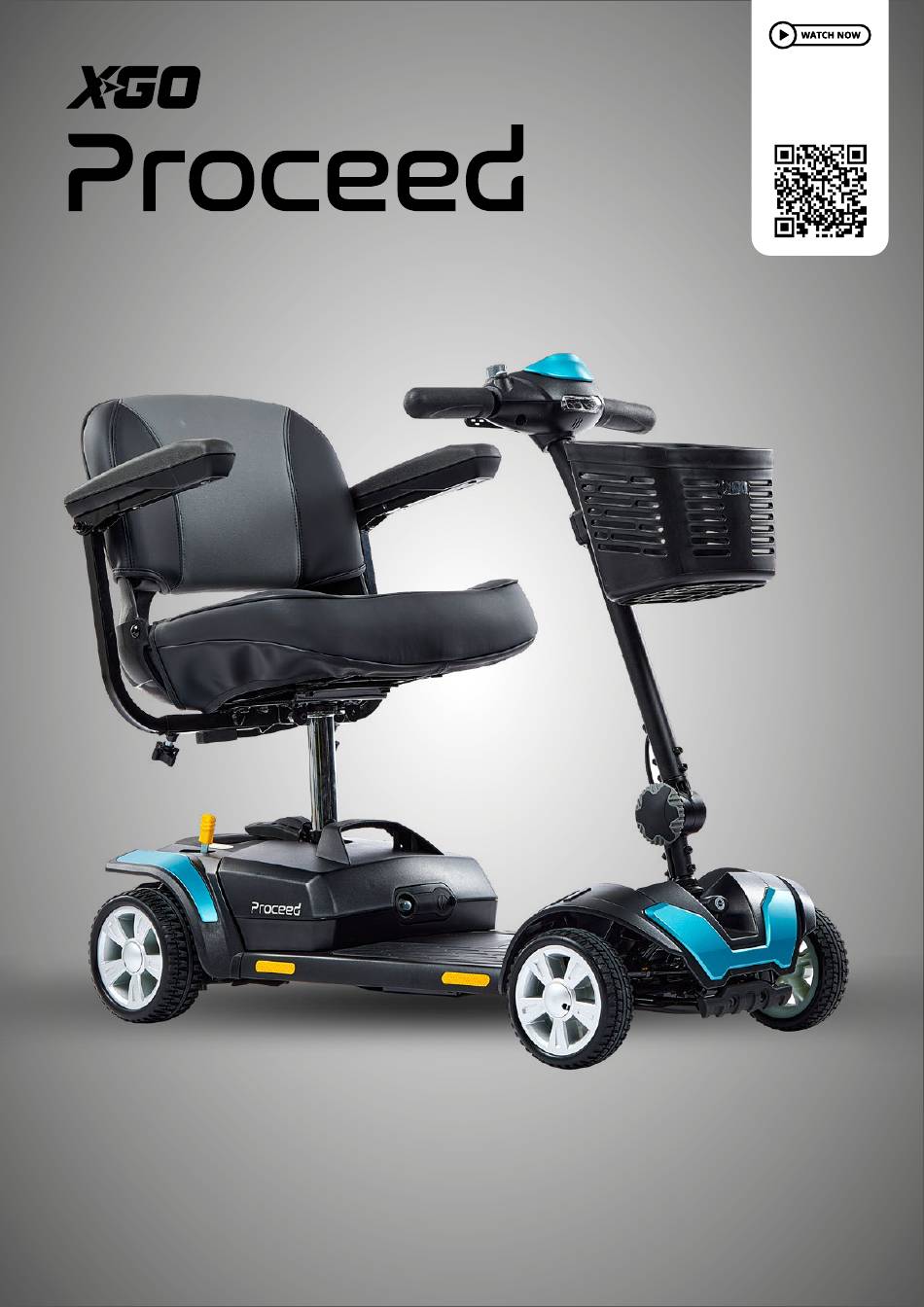

Scan me on your
phone camera
to watch our
assembly video.
USER MANUAL
PRODUCT CODE: MS01010034

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-GO Proceed MS01010034 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CareCo X-GO Proceed MS01010034

Summary of Contents for CareCo X-GO Proceed MS01010034

  • Page 1 Scan me on your phone camera to watch our assembly video. USER MANUAL PRODUCT CODE: MS01010034...
  • Page 2 The X-GO Proceed has been designed to provide a comfortable and safe solution for individuals that experience difficulty in walking. Due to CareCo’s commitment to continuous product improvement, product information and designs are subject to change without notice. No claims can be made based on the data and illustrations in this user manual.
  • Page 3 Operate the scooter at a lower speed before gradually increasing to a higher speed. If any additional assembly, disassembly and/or operation assistance is required, please contact CareCo. Keep this user manual is in a safe place for future reference. KEY DEFINITIONS...

  • Page 4: Table Of Contents

    MS01010034 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR X-GO PROCEED MOBILITY SCOOTER HOW TO USE YOUR MOBILITY SCOOTER USER INSTRUCTIONS BRAKING TYPES DISCONNECTING & CONNECTING THE FRONT AND REAR SECTIONS TILLER CONTROLS CIRCUIT BREAKER TILLER LOCKING MECHANISM SEAT BASKET MOBILITY SCOOTER MODES...
  • Page 5 COMFORT ADJUSTMENTS SEAT HEIGHT ADJUSTMENT TILLER ANGLE ADJUSTMENT ARMREST WIDTH ADJUSTMENT LOOKING AFTER YOUR MOBILITY SCOOTER PRELIMINARY CHECKS CLEANING MAINTENANCE MAINTENANCE SCHEDULE REPAIRS TROUBLESHOOTING WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS ELECTROMAGNETIC INTERFERENCE (EMI) PROGRAMMING PRODUCT RE-ISSUING RECYCLING & DISPOSAL INTENDED USE INTENDED USER INTENDED ENVIRONMENT PRODUCT IDENTIFICATION...

  • Page 6: Getting Started

    MS01010034 PRODUCT CODE GETTING STARTED CARTON CONTENTS ITEM NUMBER DESCRIPTION QUANTITY Contact CareCo immediately if X-GO Proceed Mobility Scooter any of the listed contents are Battery Pack missing. Charger We strongly recommend that Seat you keep the box and internal...

  • Page 7: Setting Up Your X-Go Proceed Mobility Scooter

    SETTING UP YOUR X-GO PROCEED MOBILITY SCOOTER 1. Remove all scooter components from the 2. Loosen the tiller knob, then lift the tiller to outer packaging and place them onto a a suitable angle. level surface. Tighten the tiller knob to secure the position.
  • Page 8 MS01010034 PRODUCT CODE 5. Lift and hold the seat lever, then place the 6. Insert the armrest(s) into the lower seat seat onto the seat post. bracket(s) and secure using the armrest bolt(s). 7. Mount the basket onto the basket bracket. 8. Push the tiller locking mechanism inwards, then twist anticlockwise to unlock the tiller.
  • Page 9 9. Charge the scooter for 8-12 hours before first use.

  • Page 10: How To Use Your Mobility Scooter

    MS01010034 PRODUCT CODE HOW TO USE YOUR MOBILITY SCOOTER USER INSTRUCTIONS TRANSFERRING TO & FROM There are two methods for users to get on or off of the mobility scooter safely. Always ensure the scooter is switched [OFF] and in [DRIVE] mode before getting on/off the scooter.
  • Page 11 METHOD 2 TRANSFERRING TO Lift the scooter armrest(s) upwards Support your body by placing one foot on the scooter footplate before lowering into the seat. Lower the armrest into its resting position. TRANSFERRING FROM Lift the scooter armrest(s) upwards Support your body by placing one foot on the ground before pushing upwards to lift out of the seat.
  • Page 12 MS01010034 PRODUCT CODE THRESHOLDS & FIXED OBSTACLES Approach thresholds vertically to avoid scooter misbalance. Incorrect Approach Correct Approach STAIRS, ESCALATORS AND LIFTS The mobility scooter is not designed to travel up/down stairs and escalators. Use a lift whenever possible. DOORS & GATES Determine whether the door/gate opens towards or away from the user.

  • Page 13: Braking Types

    BRAKING TYPES REGENERATIVE BRAKING • Slows the scooter when the throttle returns to the centre position. • Slows the scooter when the speed limiter is exceeded. PARKING BRAKE • Activates after the scooter has come to a stop. • Activates when the scooter is in [DRIVE] mode and is switched [OFF] BRAKING DISTANCE On flat surfaces, braking distance is approximately equal to the length of the scooter.

  • Page 14: Disconnecting & Connecting The Front And Rear Sections

    MS01010034 PRODUCT CODE DISCONNECTING & CONNECTING THE FRONT AND REAR SECTIONS Your X-GO Proceed front and rear sections arrive attached in the box but can be disconnected and connected to assist when transporting and storing the scooter. DISCONNECTING 1. Lift and hold the seat lever, then lift the 2.
  • Page 15 CONNECTING 1. Place the front section adjacent to the 2. Tilt the rear section and lift the front rear section. section lever. 3. Locate the front section hooks onto the rear section bar. Ensure the sections are secure before using the scooter.

  • Page 16: Tiller Controls

    MS01010034 PRODUCT CODE TILLER CONTROLS KEY SWITCH SPEED DIAL THROTTLE LEVER Insert/extract the key to Turn clockwise to increase Using your right hand, press activate or deactivate the the scooter’s speed setting. the throttle lever to move the scooter. (Towards the hare icon). scooter forwards.

  • Page 17: Circuit Breaker

    CIRCUIT BREAKER The battery pack is equipped with a circuit breaker to protect the motor and other components in case of a power overload. If the scooter overloads, the power will turn off. To reactivate the scooter: 1. Switch [OFF] the scooter. 2.

  • Page 18: Seat

    MS01010034 PRODUCT CODE SEAT ATTACHING REMOVING 1. Lift and hold the seat lever, then place the 1. Lift and hold the seat lever, then lift the seat seat onto the seat post. upwards to remove it from the scooter. 2. Release the seat lever to secure the position.

  • Page 19: Mobility Scooter Modes

    MOBILITY SCOOTER MODES DRIVE MODE FREEWHEEL MODE (ELECTRONIC ASSISTED BRAKING) Push the lever forwards to engage Freewheel Mode. Pull the lever backwards to engage Drive Mode. (The scooter will be able to be pushed manually by the user). (The scooter will not be able to be pushed manually by the user).

  • Page 20: Your Mobility Scooter Battery

    MS01010034 PRODUCT CODE YOUR MOBILITY SCOOTER BATTERY BATTERY INSTALLATION & REMOVAL INSTALLING REMOVING Lower the battery pack into the scooter’s Lift the battery pack upwards to remove it battery tray. from the scooter’s battery tray. BATTERY SPECIFICATION BATTERY TYPE LEAD-ACID SPILLABLE/NON-SPILLABLE NON-SPILLABLE VOLTAGE...

  • Page 21: Charging Your Mobility Scooter

    CHARGING YOUR MOBILITY SCOOTER Your X-GO Proceed battery pack can be charged on, or away from the scooter. To charge away from the scooter, remove the battery pack from the scooter by following the battery removal instructions before continuing with the charging instructions below. 1.

  • Page 22: Charger Information

    MS01010034 PRODUCT CODE CHARGER INFORMATION The battery charger is fitted with a smart LED indicator that indicates when the battery is charging and when charging is complete. Charging Status LED Indicator GREEN Charged Charging WARNING! Do not use the supplied charger with any other electrical device Only charge the scooter with the supplied charger or an official replacement.

  • Page 23: Disassembling Your Scooter, Transportation & Storage

    DISASSEMBLING YOUR SCOOTER, TRANSPORTATION AND STORAGE DISASSEMBLY INSTRUCTIONS Your X-GO Proceed can be disassembled to make transportation and storage easier. WARNING! Ensure the scooter is switched [OFF] and in [DRIVE] Mode before disassembling. 1. Push the tiller locking mechanism inwards, 2.
  • Page 24 MS01010034 PRODUCT CODE 4. Lift the battery pack upwards to remove it 5. Loosen the tiller knob then lower the tiller. from the battery tray. Tighten the tiller knob to secure the position. 6. Hold the rear section handle, then lift the front section lever upwards to separate the front and rear sections.

  • Page 25: Transportation

    TRANSPORTATION LAND TRANSPORT Securely stow the folded/disassembled components in the boot of a vehicle. Ensure any adjustable parts are properly secured before transport to avoid transit damage. WARNING! This product cannot be used as a seat in a motor vehicle. AIR TRANSPORT This scooter is suitable for air transport.
  • Page 26 MS01010034 PRODUCT CODE COMFORT ADJUSTMENTS SEAT HEIGHT ADJUSTMENT 1. Remove the seat from the scooter following the instructions found within this user manual. 2. Remove the seat post bolt using the provided hardware kit. 3. Raise or lower the seat post to the desired height.
  • Page 27 ARMREST WIDTH ADJUSTMENT 1. Loosen the armrest knob by rotating it anticlockwise 2. Move the armrest outwards or inwards until it is in a comfortable position. 3. Tighten the armrest knob by rotating it clockwise. 4. Repeat on the opposite side. Ensure the armrests are an equal distance apart and are secure before using the scooter.
  • Page 28 MS01010034 PRODUCT CODE LOOKING AFTER YOUR MOBILITY SCOOTER PRELIMINARY CHECKS • Ensure the scooter is switched [OFF] before getting off or on. • Ensure the scooter is in [DRIVE] mode before setting off. • Check tyres for wear. • Check all fixings are secure. CLEANING Regular use of the scooter will accumulate dirt and debris over time.
  • Page 29 REPAIRS Certain scooter components can be repaired by the user with guidance provided by CareCo. Other components can only be repaired/replaced by a service technician. If for any reason the scooter requires repair due to a defect, contact CareCo immediately.
  • Page 30 2. Place the scooter in [DRIVE] mode. mode. 3. Switch [ON] the scooter. 5 FLASH / BEEP The brake and/or its Contact CareCo. associated wiring has a fault. The charger is connected to Disconnect the charger, then switch the 6 FLASH / BEEP the scooter.
  • Page 31 WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS OVERALL LENGTH (MM) 1030 OVERALL WIDTH (MM) OVERALL HEIGHT (MM) FOLDED LENGTH (MM) 1070 FOLDED WIDTH (MM) FOLDED HEIGHT (MM) FRONT WHEEL DIAMETER (IN) REAR WHEEL DIAMETER (IN) TOTAL WEIGHT INCLUDING BATTERIES (KG) WEIGHT OF HEAVIEST COMPONENT (KG) 15.5 MAXIMUM SPEED (MPH) MAXIMUM REVERSE SPEED (MPH)
  • Page 32 MS01010034 PRODUCT CODE ELECTROMAGNETIC INTERFERENCE (EMI) Powerchairs and mobility scooters may be susceptible to electromagnetic interference (EMI). Electromagnetic energy (EM) is emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. The interference (from radio wave sources) can cause the powerchair/mobility scooter to release its brakes, move by itself, or move in unintended directions.
  • Page 33 Electronic Equipment policies (W.E.E.E). For battery disposal, users should follow local disposal/recycling regulations. Contact CareCo if further advice is needed regarding recycling & disposal. INTENDED USE This product is intended for users who experience difficulty in walking and/or have reduced mobility.
  • Page 34 MS01010034 PRODUCT CODE PRODUCT IDENTIFICATION The product identification label is located on the cross-frame underneath the seat. DEFINITIONS Model number Refer to instruction manual Batch code Caution Date of manufacturer Indicates electrical / electronic equipment must be disposed of in accordance with the WEEE regulation.
  • Page 35 GENERAL WARNINGS • Mobility Scooter users should take appropriate safety measures and obey local pedestrian traffic rules. CareCo are not responsible for personal injury and/or product damage caused by improper use. • Use safety equipment such as reflectors, reflective clothing, and lighting when in low lit areas.
  • Page 36 MS01010034 PRODUCT CODE EXPECTED LIFETIME The Expected Lifetime is the estimated period of time for which the scooter is expected to function according to its intended use. Various items such as weight capacity, user behaviour, external conditions and intensity of use can affect the expected lifetime.
  • Page 37 Parts that have been purchased by the end user after the original warranty period has expired have a warranty period of 12 months. CareCo is not responsible if the scooter requires repair or replacement as a direct result of: •...
  • Page 38 MS01010034 PRODUCT CODE NOTES...
  • Page 39 NOTES...
  • Page 40 056059 114323 ROLLATOR...
