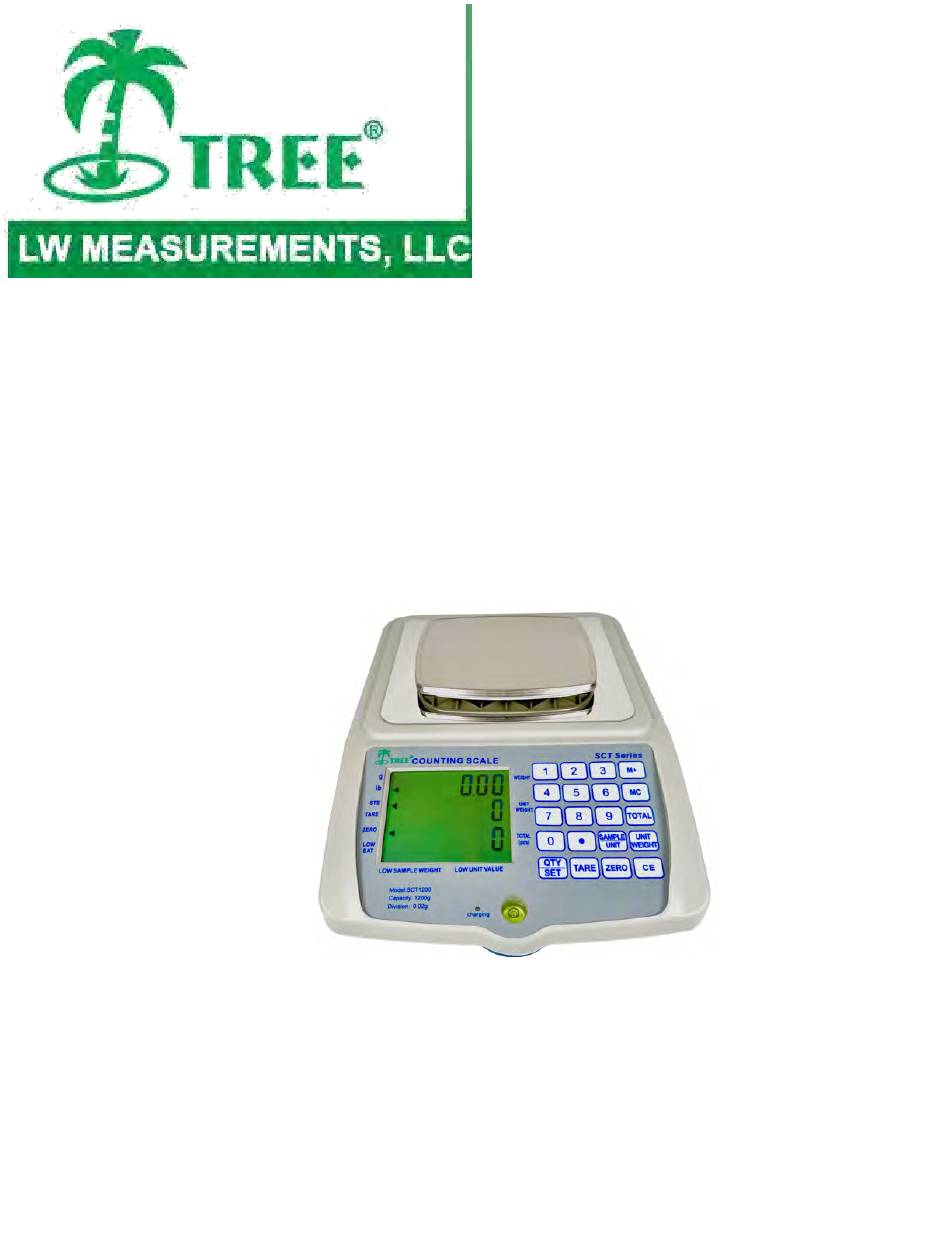

- Page 1 Professional Weighing Equipment SCT SERIES Small Counting Scales SMALL COUNTING SCALE WITH CHECK-WEIGHING FUNCTION Operation Manual SCT 600g SCT 1200g...
-
Page 2: Table Of Contents
Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety Weight Scale Functions Features Application & Conformity Getting Started Delivery Assembly & Installation 11-12 Application Menu 12-13 Operation Calibration Maintenance & Service Transportation & Storage Warranty Rev.3 02.07.2023... -
Page 3: Declaration Of
Electronic scale: SCT Small Counting Scales Available Models SCT 600g SCT 1200g Mark applied EU Directive Standards 2004/108/EC EN 61326-1: 2006 Signature: Boon Lim, R & D Manager Date: 14. 11. 2012 LW Measurements LLC, 620 Carlson Court, Rohnert Park, CA 94928 Rev.3 02.07.2023... -
Page 4: Customer Service
Customer Service LW Measurements LLC, 620 Carlson Court Rohnert Park, CA 94928 Tel: (707) 542-2185 FAX: (707) 542-3285 http://lwmeasurements.com Introduction What you should know about this Operation Manual: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential of the weighing scale in your daily work activities. -
Page 5: Safety
Safety Representations & Symbols Note: Important instructions, which involve safety, are highlighted with the appropriate mark Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage. -
Page 6: Weight Scale
Weight Scale Construction & Functions The weighing scale consists of the following parts; The Scale body (1) The Scale pan (1) The Adapter (2) Operation manual Rev.3 02.07.2023... -
Page 7: Functions
Functions The LCT Series are high-quality electronic precision weight scales designed to function as counting scales and check-weights with the following specifications. Turn off the weighing machine using the hard switch located on the bottom of the weighing machine. ... -
Page 8: Features
Features Auto zero tracking Low battery indication Large LCD Stability indication Auto calibration Auto back light Unit switching g or lb Variable g or lb reference weight calibration software Pieces counting ... -
Page 9: Getting Started
Getting Started The scale is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. We suggest that you keep the original packaging in order to avoid damage if you are shipping or transporting the scale to a different location. It is also the best way to keep it in the best conditions if it will not be used for an extended period of time. -
Page 10: Assembly & Installation
Assembly & Installation The weighing scale is delivered in a partly dismantled condition. Assemble the individual components in the following sequence: Place your machine on a level, clean, and dry surface to obtain accurate readings. Place the plastic platter on top of the scale, flat side facing up so the platter sits firmly on the machine with the four “legs”... -
Page 11: Application Menu
The balance is fitted with one bubble level, and adjustable feet for level-control that allow for small height differences or any unevenness in the surface on which the balance is placed. The screw feet must be adjusted so that the air bubble is precisely in the center of the sight glass of the bubble level (see Fig. -
Page 12: Operation
Low unit value indicator turns on when the sample unit is not heavy enough for accurate counting. Operator may still use the weighing machine if this indicator is on, but counting error might occur Key functions Numeric (0-9) key is used for setting numeric data for sample number, sample weight or to limit the HI/LO settings. - Page 13 Sample setting methods Number setting: (when counting any unknown weight) Place the pre-counted “X” number of samples on the platter. The total weight will be displayed. Set the “X” number of samples by using the numeric keys and then press the SAMPLE/UNIT key.
-
Page 14: Calibration
Calibration Using an External Calibration Weight: Note: Calibration may be required when the weighing machine is initially installed or if it has been moved a substantial distance. The weighing machine should be allowed to warm up for 10 minutes before calibration. Single segment calibration (recommended) ... -
Page 15: Maintenance & Service
Maintenance & Service For maintenance-work, the balance must be disconnected from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be connected to the power supply during the work by a third party. Make sure that no liquid spills into the scale while performing maintenance work. If liquid is spilled on the scale, it must be inspected by a service technician. -
Page 16: Warranty
(2) years from the date of shipment for Customers in the continental United States. LW Measurements will pay for freight both ways within the first 30 days of purchase if technical support is required. (Determined by our certified Technical Support Team) In the event technical support is needed the customer is responsible for shipping the product back to us after the 30 day period has expired.
