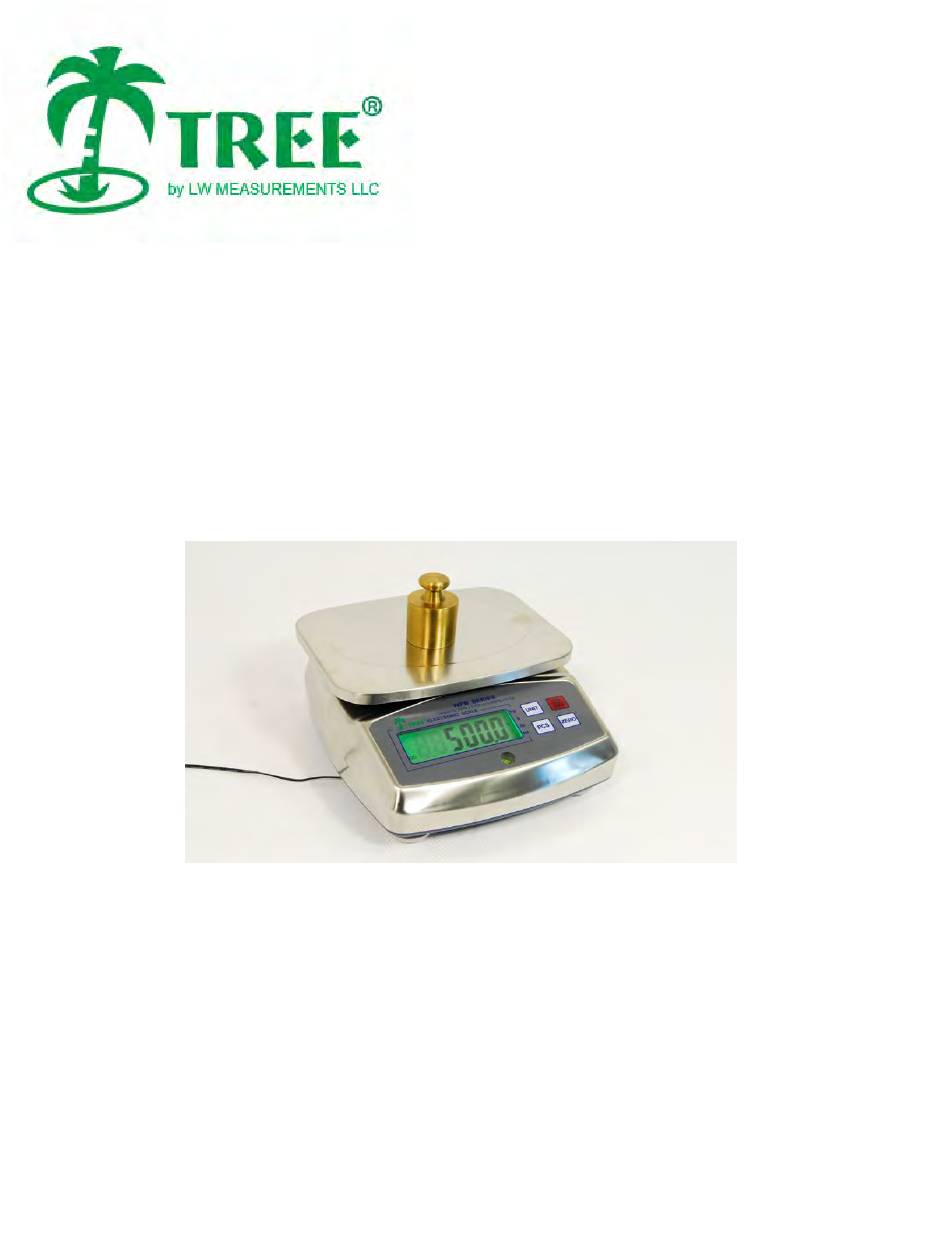

- Page 1 Professional Weighing Equipment WPB Series intelligent weighing scale HIGH RESOLUTION BALANCE WITH COUNTING FUNCTION WPB Series Operation Manual...
-
Page 2: Table Of Contents
Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety Weight Scale Functions Features Application & Conformity Getting Started Delivery Assembly & Installation Display Weighing Calibration Function Setting Maintenance & Service Transportation & Storage Warranty Rev.4 02.07.2023... -
Page 3: Declaration Of
Electronic scale: WPB - High Resolution Balances USA model WPB-13 lb WPB-33 lb Mark applied EU Directive Standards 2004/108/EC EN 61326-1: 2006 Signature: Boon Lim, R & D Manager Date: 14. 06. 2012 LW Measurements LLC, 620 Carlson Court, Rohnert Park, CA 94928 Rev.4 02.07.2023... -
Page 4: Conformity Customer
Customer Service LW Measurements LLC 620 Carlson Court Rohnert Park, CA 94928 Tel: (707) 542-2185 FAX: (707) 542-3285 http://lwmeasurements.com Rev.4 02.07.2023... -
Page 5: Service Introduction
Introduction What you should know about these Operating Instructions: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential and the diverse possibilities of the weighing scale in your daily work. -
Page 6: Safety
Safety Representations and symbols Important instructions, which involve safety, are highlighted with the appropriate mark: Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage. -
Page 7: Weight Scale

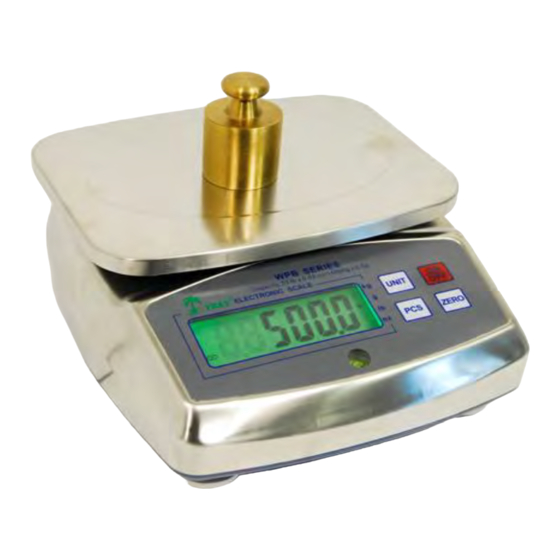

Weight Scale Construction & Functions The weighing scale consists of the following parts; Weight scale body (1) The scale-pan (2) The adapters (3) Operating manual Your weighing scale Rev.4 02.07.2023... -
Page 8: Functions
Functions The HRB Series are high-quality electronic precision weighing scales with counting function and the following specifications Model number Capacity Graduation Weighing pan Size WPB 13lb 6000g 0.2g 210mm x 160mm 13 lb. 0.01 oz. 8.3 in x 6.3in WPB 33lb 15000g 0.5g 210mm x 160mm... -
Page 9: Features
Features Auto shut off (selectable) Auto zero tracking Low battery indication Stainless steel casing and platter Large square weighing pan Net weight/stability indication 1/30000 division available Auto calibration (AnyCal Software) Auto backlight (selectable) ... -
Page 10: Application & Conformity
Application & Conformity The Following are instructions of how to correctly use the weight scale: The weighing scale may only be used for the weighing of solid-materials and of liquids filled into secure containers. The maximum capacity load of the weighing scale must never be exceeded, otherwise the weighing scale may be damaged. -
Page 11: Getting Started
GETTING STARTED The scale is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. We suggest that you keep the original packaging in order to avoid damage if you are shipping or transporting the scale to a different location. It is also the best way to keep it in the best conditions if it will not be used for an extended period of time. -
Page 12: Assembly & Installation
Assembly & Installation The weighing scale is delivered in a partly dismantled condition. Assemble the individual components in the following sequence: Place your machine on a level, clean, and dry surface to obtain accurate readings. Place the stainless steel platter on top of the plastic platter with the flat side facing up. -
Page 13: Display
Display messages: Low Battery Tare Zero Function Key Functions: The On/Off key is to turn the Balance On or Off (Note: it has an On/Off hard switch at the bottom). The Zero key allows the user to subtract the container value multiple times within the capacity weight, and is used to set or re-adjust the weighing scale in correct zero position. -
Page 14: Calibration
Pieces counting Press the “On/Off” to turn on the Balance, wait for “0” to appear on the display, If necessary, press [ZERO] key to set the display to “0”. Press “PCS” key to enter “PCS” mode, display will show P = XX ... -
Page 15: Function Setting
If calibration is repeatedly incorrect then: 1) Replace the batteries, 2) Try a more stable surface and interference free location. Function Settings Enter function setting menu. Press (ON/OFF) to turn the power off. Press and hold (PCS), then press (ON/OFF) to turn on the scale, the display will show A_ON or A_OFF, it enters the function setting menu now. -
Page 16: Maintenance & Service
Maintenance & Service The weighing scale is a precision instrument, it must be treated carefully and cleaned regularly For maintenance-work, the balance must be disconnected from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be connected to the power supply during the work by a third party. -
Page 17: Warranty
Our warranty does not cover misuse or neglect including but not limited to battery or water damage, overloading, and chewed or cut wires. If the product is found to have been misused or damaged by the customer, LW measurements is not responsible for the cost of return.
