PIZA+ Bluetooth SCALE
INSTRUCTION MANUAL
PIZA+ 12 PIZA+ 25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TREE PIZA+ 12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LW MEASUREMENTS TREE PIZA+ 12

Summary of Contents for LW MEASUREMENTS TREE PIZA+ 12

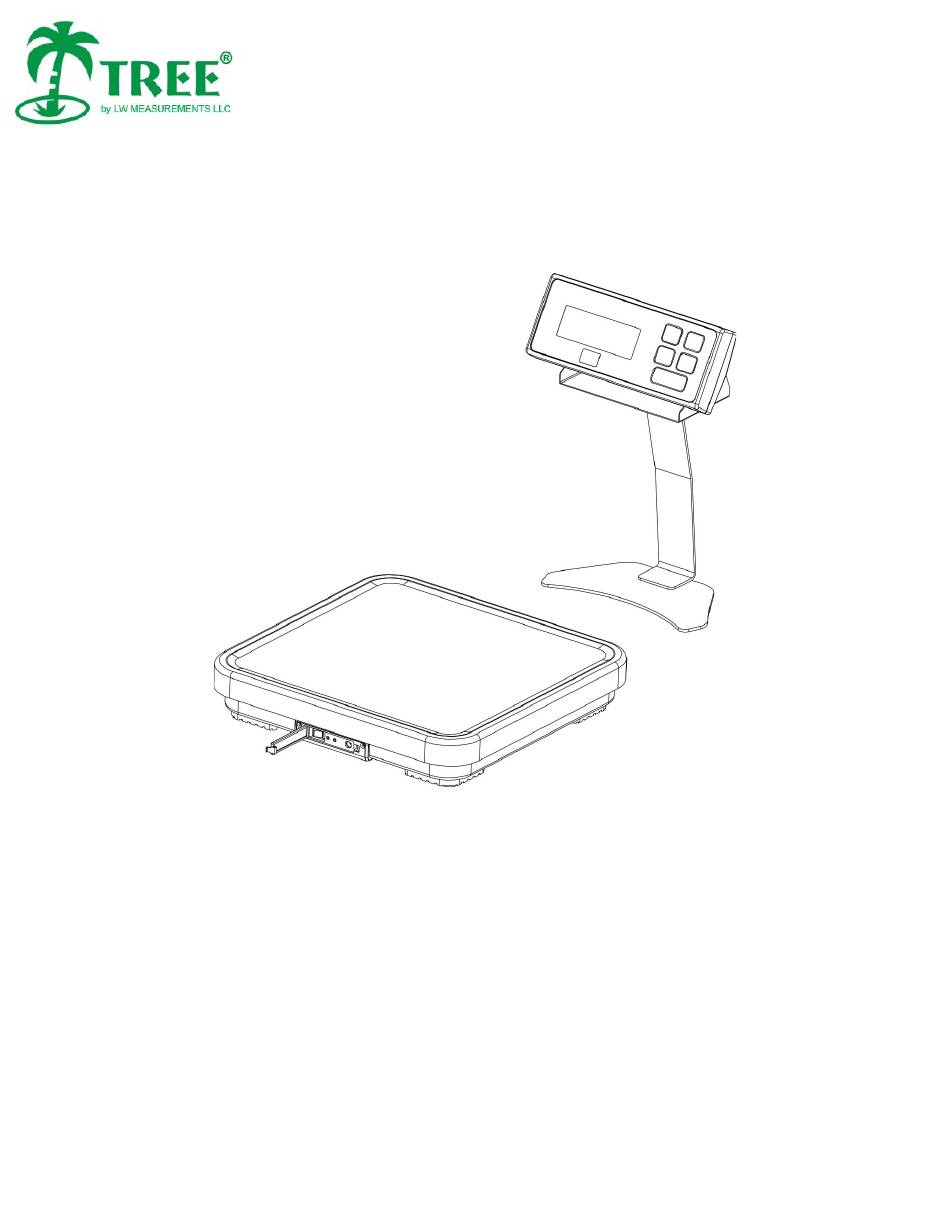

  • Page 1 PIZA+ Bluetooth SCALE INSTRUCTION MANUAL PIZA+ 12 PIZA+ 25...
  • Page 2 SAFETY PRECAUTIONS All safety messages are identified by the following the words "WARNING" and "CAUTION". These words mean the following: △WARNING Important information to alert you to a situation that might cause serious injury and damage to your balance if instructions are not followed.
  • Page 3 ·Display 1. ON/OFF: Turn the scale power on/off. 2. HOLD: Press this key to store weight value. 3. UNIT：Select weighing units: kg/lb/oz/lb:oz. 4. ZERO：(for TARE) This key is “Zero” feature if load is below 10% of full capacity or a negative value, and is tare function between 10% to full capacity.
  • Page 4 Features ： ½ 1. Display options：5 digital LCD 2. Power：AC adapter 12V 1A 3. Auto back light (selectable) 4. Auto off (selectable) 5. Operating Temperature：0-40℃(32-104℉) 6. Operating Humidity：25％～95％RH 7. 5 Keys：ON/OFF, ZERO, UNIT, HOLD, PRINT, and IR switch for TARE function 8.
  • Page 5 HOLD FUNCTION 1) Place the item on the Scale platform. 2) Wait for the stable weight to be displayed. 3) Press the HOLD key. The " . " hold indicator will turn on. 4) Remove the item from the Scale platform, the item's weight reading will remain on the display. Now you can also select units by pressing [UNIT] key.
  • Page 6 When to calibrate Note: Calibration is done in factory. Don't re-calibrate the Scale, unless it is not accurate. Calibration: Turn on the power switch of the scale，Press and hold [ZERO] key then press [ON/OFF], the display will show “CAPU=”, press twice [HOLD] key, the display will show CALU=, press [UNIT] key to select calibration unit kg or lb, it will have a small triangle on the right to indicate kg or lb, press [HOLD] key to confirm the selection.
  • Page 7 RS232 TRANSMIT FUNCTION 1. RS232 interface：DB9 SCALE RXD 2 2 RXD TXD 3 3 TXD GND 5 5 GND 2. USB interface：USB-B RS232 /USB Transmission Agreement： Mode：Simplex Asynchronous Serial  Baud rate： 9600  Data Bit：8  Parity Bit：NONE  Stop Bit：1 ...

This manual is also suitable for:

Tree piza+ 25
