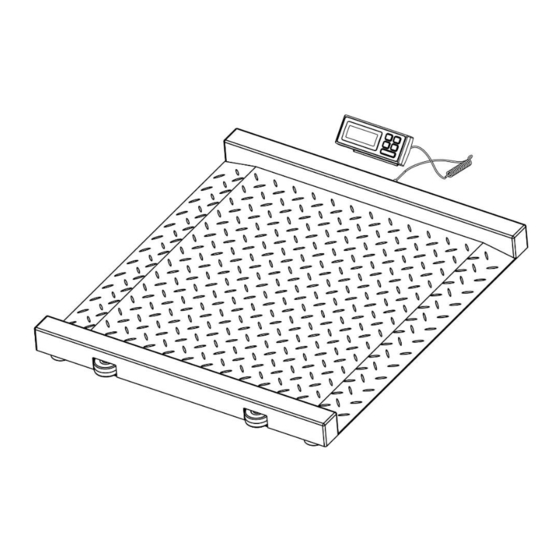

- Page 1 Professional Weighing Equipment LDS/SDS Series Weight Scale Large drum scale/small drum scale Operation Manual NOTE: THIS PRODUCT HAS BEEN CALIBRATED IN THE FACTORY. PLEASE REFER TO THE MANUAL BEFORE RE-CALIBRATING PRODUCT!
-
Page 2: Table Of Contents
Table of Contents Section Page Declaration of Conformity Customer Service Safety Specifications Parts Description Features Getting Started Delivery Program Options Function Settings Calibration Interface Hold Function Maintenance & Service Transportation & Storage Warranty Rev.2 01.30.2023... -
Page 3: Declaration Of Conformity
We hereby declare that the product to which this declaration refers conforms to the following standards. Electronic Scale: LDS Series / SDS Series Mark applied EU Directive Standards 2004/108/EC EN 61326-1: 2006 Signature: Boon Lim, R & D Manager Date: 1.21.2016 LW Measurements LLC, 620 Carlson Court, Rohnert Park, CA 94928 Rev.2 01.30.2023... -
Page 4: Customer Service
Customer Service LW Measurements LLC, 620 Carlson Court Rohnert Park, CA 94928 Tel: (707) 542-2185 Fax: (707) 542-3285 http://lwmeasurements.com Introduction What you should know about this Operation Manual: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential of the weighing scale in your daily work activities. -
Page 5: Safety
Safety Representations & Symbols Note: Important instructions, which involve safety, are highlighted with the appropriate mark Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage. -
Page 6: Specifications
Specifications LDS specifications: Model Capacity Division 0.5 lb 2000 lbs. Platter 39.4 x 37 inches Net/gross weight 121 lb./143 lb. Package Standard Capacity: 45 x 39 x 5.1 inches Operating temperature 0-40°C (32-104°F) Power Source 6xx AA battery or AC/DC Adapter 9V/400mA SDS specifications: Model... -
Page 7: Features
Features Display options：5 digital LCD Power：AC adapter 9V/400mA Auto back light (optional) Auto shut off (optional) Operating Temperature：5～35℃ Operating Humidity：25％～95％RH Zero Range (0 to 4% of full capacity) Tare Range (4% to full capacity) ... -
Page 8: Getting Started
Getting Started The scale is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. We suggest that you keep the original packaging in order to avoid damage if you are shipping or transporting the scale to a different location. It is also the best way to keep it in the best conditions if it will not be used for an extended period of time. -
Page 9: Program Options
Program Options Work mode setting of the indicator: Press and hold [UNIT] key and [HOLD] key, then press [ON/OFF] key to turn on the scale, the display will show Ani.Sw, press [UNIT] key to enter function setting menu press [ZERO] key to select ON or OFF ( ON means animal mode, OFF means normal weighing mode),press [HOLD] key to confirm the selection. -
Page 10: Calibration
Calibration Calibration has been done in factory already. Do not recalibrate it unless it is extremely inaccurate. If you have any problems about calibration, please contact with the dealer who will provide you professional guidance. Press and hold [ZERO] key then press [ON/OFF] key, the display will show CAPU=, press [UNIT] key to select full capacity unit kg or lb. -
Page 11: Interface
Interface ：battery socket： AC/DC 9V―――――― external positive, inner negative 2：RS232 interface：DB9 RS232 TRANSMIT FUNCTION 1. RS232 interface：DB9 SCALE TXD 3 2 RXD GND 5 5 GND RS232 Transmission Agreement Mode Simplex Asynchronous Serial Baud rate： 9600 Data Bit：8 ... -
Page 12: Maintenance & Service
Maintenance & Service For maintenance-work, the balance must be disconnected from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be connected to the power supply during the work by a third party. Make sure that no liquid spills into the scale while performing maintenance work. If liquid is spilled on the scale, it must be inspected by a service technician. -
Page 13: Warranty
(2) years from the date of shipment for Customers in the continental United States. LW Measurements will pay for freight both ways within the first 30 days of purchase if technical support is required. (Determined by our certified Technical Support Team) In the event technical support is needed the customer is responsible for shipping the product back to us after the 30 day period has expired.
