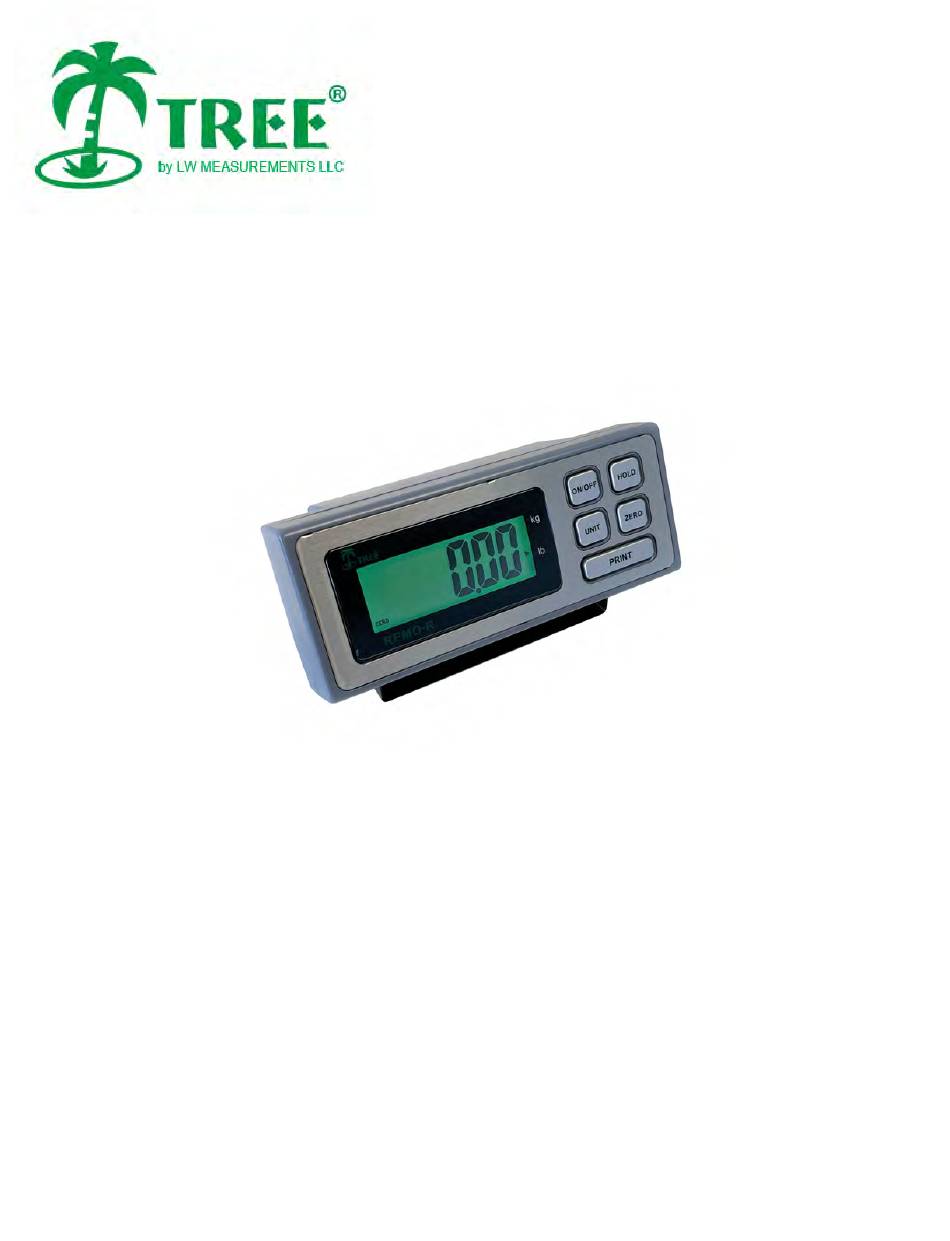

  • Page 1 Professional Weighing Equipment REMO/REMO-R Operation Manual...

  • Page 2: Table Of Contents

    Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety Weight Scale Features Interface Data Getting Started Remo Indicator Mounting Drawing Assembly & Installation Functions 12-13 Calibration 13-14 Maintenance & Service Transportation & Storage Warranty Rev.5 02.07.2023...

  • Page 3: Declaration Of Conformity

    We hereby declare that the product to which this declaration refers conforms to the following standards. Electronic scale: Remo-R Remo Mark applied EU Directive Standards 2004/108/EC EN 61326-1: 2006 Signature: Boon Lim, R & D Manager Date: 03.07.16 LW Measurements LLC, 620 Carlson Court, Rohnert Park, CA 94928 Rev.5 02.07.2023...

  • Page 4: Customer Service

    Customer Service LW Measurements LLC, Carlson Court, Rohnert Park, CA 94928 Tel: (707) 542-2185 Fax: (707) 542-3285 http://lwmeasurements.com Introduction What you should know about this Operation Manual: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential of the weighing scale in your daily work activities.

  • Page 5: Safety

    Safety Representations & Symbols Note: Important instructions, which involve safety, are highlighted with the appropriate mark Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage.

  • Page 6: Weight Scale

    Weight Scale ： PARTS DESCRIPTIONS ON/OFF HOLD UNIT ZERO PRINT  ON/OFF: Turn the scale power on/off.  HOLD: Press this key to store weight value.  UNIT：Select weighing units：kg or lb.  ZERO： (for TARE) This key is “Zero” feature if load is below 10% of full capacity or a negative value.

  • Page 7: Features

    Features 1. Auto back light (selectable) 2. Auto off (selectable) 3. Hold function 4. Animal weighing 5. Peak hold function 6. Any Cal calibration software 7. RS232 function 8. To work either as an indicator, or a display 9. Three modes: Normal mode / Setting mode /Internal Auto Calibration mode 10.
  • Page 8 RS232 TRANSMIT FUNCTION 1. RS232 interface：DB9 SCALE RXD 2 2 RXD TXD 3 3 TXD GND 5 5 GND RS232 Transmission Agreement：  Mode: Simplex Asynchronous Serial  Baud rate： 9600  Data Bit：8  Parity Bit：NONE  Stop Bit：1 ...

  • Page 9: Getting Started

    Getting Started The scale is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. We suggest that you keep the original packaging in order to avoid damage if you are shipping or transporting the scale to a different location. It is also the best way to keep it in the best conditions if it will not be used for an extended period of time.

  • Page 10: Remo Indicator Mounting Drawing

    Remo Indicator Mounting Drawing Rev.5 02.07.2023...

  • Page 11: Assembly & Installation

    Assembly & Installation The weighing scale is delivered in a partly dismantled condition. Assemble the individual components in the following sequence:  Place your machine on a level, clean, and dry surface to obtain accurate readings. Connecting the AC Adapter The following Safety recommendations must be observed when connecting the balance: The Scale should only be connected to the mains voltage socket with the power adapter supplied.

  • Page 12: Functions

    FUNCTION SETTINGS  Press and hold [HOLD] key then press [ON/OFF] key to turn on the scale, the display will show A-ON or A-OFF, press [ZERO] key to select (ON means auto power off function activate, OFF means auto power off function inactivate). ...

  • Page 13: Calibration

    HOLD FUNCTION  Place the item on the Scale platform.  Wait for the stable weight to be displayed.  Press the HOLD key. The “. “Hold indicator will turn on.  Remove the item from the Scale platform. He item's weight reading will remain on the display.

  • Page 14: Maintenance & Service

    following steps:  Press [PRINT] key, the display will show CAL, then AD value, press [UNIT] key when the stable indicator lights, the display will show flash calibration weight, place the shown weight on the platform, press [UNIT] key when the stable indicator lights, the display will show -----, and AD value.

  • Page 15: Warranty

    (2) years from the date of shipment for Customers in the continental United States. LW Measurements will pay for freight both ways within the first 30 days of purchase if technical support is required. (Determined by our certified Technical Support Team) In the event technical support is needed the customer is responsible for shipping the product back to us after the 30 day period has expired.
