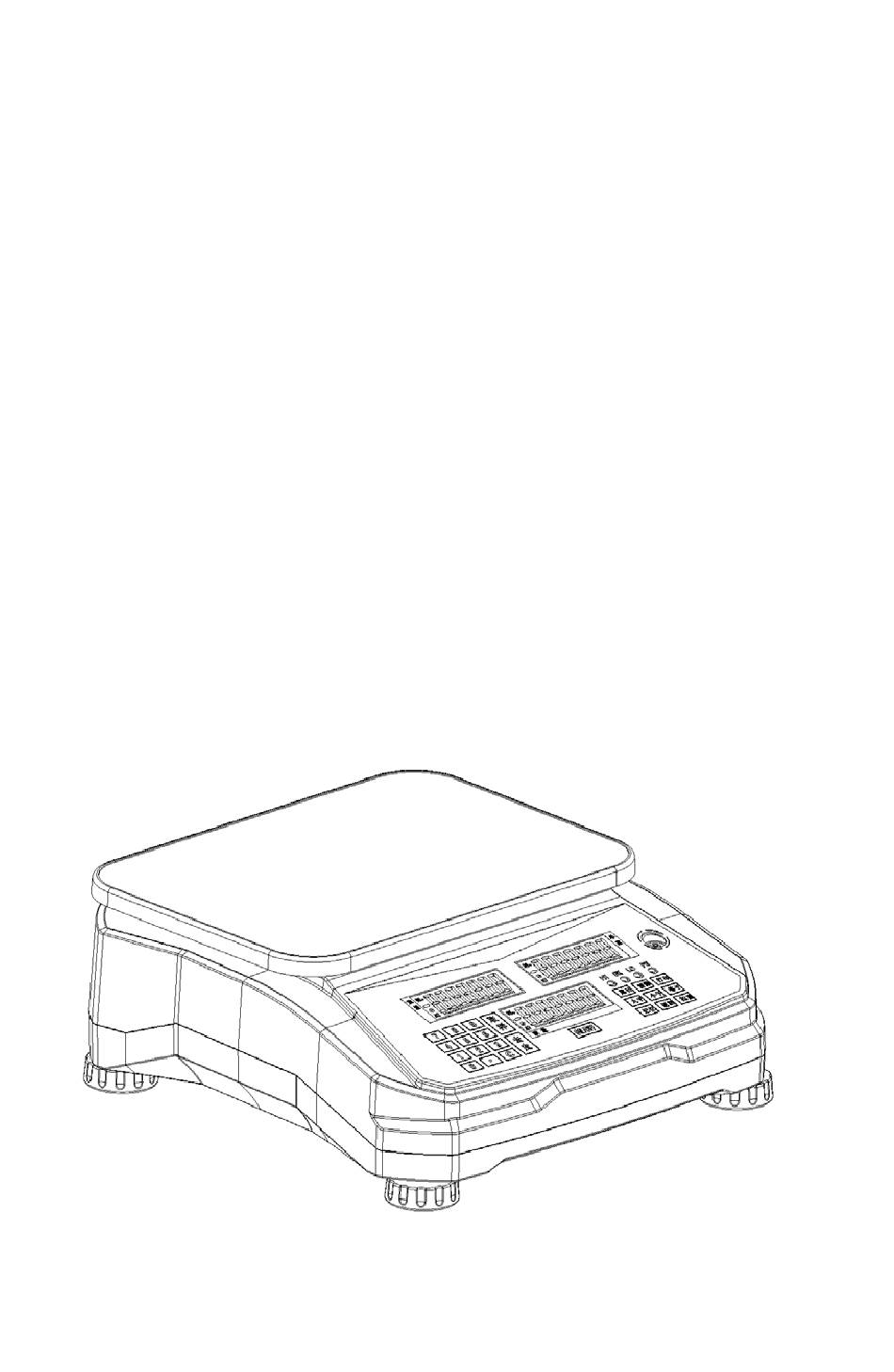

  • Page 1 Army Aviation SCT Series Electronic Counting Scale Manual  ...
  • Page 2: Table Of Contents

    Contents 【1】 ATTENTION............3 CONVENTIONAL ATTENTION ATTENTION BEFORE USING 【2】 INSTALLATION………………………………………4 BODY INSTALLATION BATTERY REPLACEMENT 【3】 INSTRUCTION………………………………………5 PARAMETERS POWER SUPPLY 【4】 DISPLAY…………………………………………….6 PANEL DESCRIPTION KEY DESCRIPTION DISPLAY DESCRIPTION 【5】 OPERATION……………………………………..…9 【6】 FUNCTION SETTING………………………………20 【7】 RS232 OUTPUT FORMAT……………………….25 【8】 ERROR MESSAGES ………………………..….27 【9】...
  • Page 3: 1】 Attention

    First of all, thank you for purchasing the Army Aviation SCT series electronic counting scale of our company. The high quality and reliability of the product will make you satisfied. By means of the product, you will be able to fully realize the high quality and reliability of our scale, and believe that our product can fully meet your requirements.
  • Page 4: Attention Before Using

    ATTENTION BEFORE USING 1. Locate the scale on a clean, firm working table with flat surface to keep away from vibration, heat sources, or rapidly changed temperature. Adjust the 4 leveling feet so that the bubble is centered in the circle and be sure the scale is level each time after its location is changed.
  • Page 5: Battery Replacement

    Inner Packing AC Adapter 2. Locate the scale’s body on a firm and horizontal working table with the flat surface , adjust the feet to keep the scale stable and level as when the bubble is centered in the circle. 3.
  • Page 6: Power Supply

    Precision:(3000-300000)d,(3000d,dual range)approved Working Voltage: 5V Sample Rate: 20 times/Sec. Resolution:1 million 3.2 POWER SUPPLY AC Adapter:Input 100V~240V,Output 12V/1A Battery Specification: 6V4AH 【4】DISPLAY 4.1 PANEL DESCRIPTION SCT Panel Description:HI (red light),OK (green light) and LO (yellow light) indicates when check weight function works.  ...
  • Page 7: Key Description

    4.2 KEY DESCRIPTION 【0~9】:The input digit displays on screen 【 . 】:Decimal Point 【 C 】:Clear the displayed digit on screen 【SMPL】:Calculate a new average unit weight 【R 】:Recalculate a new average unit weight SMPL 【ON/OFF】:Turn on when power off and turn off when power 【TARE】:Perform Tare Function 【ZERO】:Perform Zero Setting Function 【PRINT】:Perform Print Function...
  • Page 8: Display Description

    MC is bright. Notice::The interval time for pressing key is less than 1 second. 4.3 DISPLAY DESCRIPTION   Weight Unit Weight COUNT       Description Description Stable Symbol MR Symbol Zero Symbol MC Symbol - Symbol R1 cap. Symbol NET Symbol R2 cap.
  • Page 9: 5】Operation

    【5】OPERATION 5.1 TURN ON/OFF ON:Press 【ON/OFF】key to display the maximum capacity and software version number on screen, do self-inspection, then enter in weighing interface. OFF:Press【ON/OFF】key to turn off scale directly. 5.2 COUNTING MODE There are three display windows in SCT series scale, in which weight, unit weight and count are displayed respectively .
  • Page 10 4. The set average unit weight and number are displayed on the screens. Sampling After Tare: 1. Put a container on the pan 2. Press【TARE】key to display “0” on weight screen. and symbol NET is displayed. 3. Put samples inside the container 4.
  • Page 11 5.4 ACCUMULATED MODE Perform accumulation function by pressing 【M+/HI】key, and accumulative operation can be performed at most 10 times as well as rechecking or print every time. Notice: The accumulative operation can only be performed when the stable symbol appears, then M+ symbol will be displayed after performing accumulative operation.
  • Page 12 2. Press 【 MR/LO 】 key to display “weighing value of accumulative total” on the weight screen, “MR-ALL (times of accumulative total)” on the unit weight screen, “the number of accumulative total” on count screen. Press the print key to print the number of accumulative total. 3.
  • Page 13 again to clear all the accumulated messages and cancel accumulation operation. 3. Press continuously 【ZERO】key to examine each message of 10 times accumulated results in descending order and press 【 MC 】 key to clear the current accumulated message. 4. Press continuously【TARE】key to examine each message of 10 times accumulated results in ascending order and press【MC】key to clear the current accumulated results.
  • Page 14 weight screen, “LO” on count screen. Change the lower limit weight by numeric keyboard, press 【SMPL】key to confirm the lower limit weight. 3. Press 【 M+/HI 】 key to display “check weight alarm range” on weight screen, “upper limit weight” on unit weight screen, “HI”...
  • Page 15 1. In counting interface, press【CK】key to display “check count alarm range” on weight screen, “ unit weight” on unit weight screen, “LIMIT” on count screen. 2. Press 【MR/LO】key to display “check count alarm range” on weight screen, “lower-limit count” on unit weight screen, “LO”...
  • Page 16 SINGLE POINT CALIBRATION (unapproved) Single Point Calibration can be used to calibrate the deviation of gravity when the scale is used at first or calibrate the scale when it is inaccuracy. Notice: please calibrate the scale in working condition. 1. In the condition of power off, hold on 【SMPL】key and press【ON/OFF】...
  • Page 17 6. Press 【 R 】 key to count backwards to return in ETURN weighing interface. 5.10 UNIT SETTING(unapproved) In general, the units need not reset because they were already set before delivery. If setting need, the steps are shown as the followings, units –g.kg,1b,oz Notice: The units kg and g are only allowed by rules to be legal measure unit.
  • Page 18 5.11 MINIMUM ZERO DISPALY SETTING Minimum Zero Display need not be reset in general and was set before delivery, if need, the steps are shown as the followings: Notice: Minimum Zero Display “0” is only allowed to be set on rules.
  • Page 19 each time. Therefore, the linear calibration done by user are not suggested. The linear calibration was done before delivery. Notice: please calibrate the scale in working condition. 1. In the condition of power off, hold on【TARE】key and press 【ON/OFF】key to enter in linear calibration interface, and display “CAL”...
  • Page 20: 6】Function Setting

    【6】FUNCTION SETTING In the condition of power off, hold on【ZERO】key and press 【 ON/OFF 】 key to enter in function setting interface and display “SCALE” on weight screen, “FunC” on unit weight screen, “SET” on count screen. ********************************************************** 6.0 BACKLIGHT SETTING Press【0】key to display “FunC0”...
  • Page 21 6.2 BAUD RATE SETTING Press 【2】 key to display “FunC2” on weight screen, “bAud” on unit weight screen, “baud rate value” on count screen. Press 【2】key to change the different baud rate(9600-19200-4800). 6.3 CHECK WEIGHT BUZZER SETTING Press 【3】key to display “FunC3” on weight screen, “CK-bz” on unit weight screen, “ON or OFF”...
  • Page 22 6.5 CHECK WEIGHT/COUNT SETTING Press【5】key to display “FunC5” on weight screen, “CK-S” on unit weight screen, “WEiGH/PCS” on count screen. Press【5】key to change them. “WEiGH”:check weight mode “PCS”:check count mode 6.6 PRINT SETTING Press【6】key to display “FunC6” on weight screen, “Prt” on unit weight screen, “Print Pattern”...
  • Page 23 “PC”:connect to computer “dot-MA”:connect to micro printer 6.8 AUTOMATIC TARE SETTING Press 【9】 key to display “FunC9” on weight screen, “AtarE” on unit weight screen, “YES (open) /no (close) ” on count screen. Press【9】key to change them. 6.9 COUNT ANALYSIS SETTING Press 【.】...
  • Page 24 the total accumulated message and press【PRINT】key to print and output the total accumulated message. “nP-ALL”: in counting interface, press 【M+/HI】 key not to print and output every accumulated value, but press 【 MR/LO】 key to display the accumulated total, then press 【PRINT】key to print and output the accumulated total.
  • Page 25: 7】Rs232 Output Format

    【7】RS232 OUTPUT FORMAT 7.1 RS232 CONNECTION DB9 joint is for the connection with other communication equipments Connect pins are assigned as the followings: PIN2=TXD,PIN3=RXD,PIN5=GND Setting Pattern: Data bits 8, without odd-even check, stop bit 1, baud rate is adjustable 7.2 RS232 FORMAT Three print formats-Continuous, pressing key and stable :...
  • Page 26: 8】Error Messages

    U/W: 0.92658 g QTY: 100 PCS No.02 The second accumulated total G/W: 92.7 g U/W: 0.92658 g QTY: 100 PCS No.03 The third accumulated total G/W: 92.7 g U/W: 0.92658 g QTY: 100 PCS TOTAL03 Times of accumulated total G/W: 278.1 g Weight of accumulated total U/W: 0.92658 g...
  • Page 27: 9】Specifications

    Battery Battery is low Charge battery symbol P2-Err Exceed 20% max. capacity Take down the load AC-Err The accumulated times exceed Clear the accumu- 10 . lated times Hostile working condition Working condition Zeroing Touch the pan Eliminate objects Load cell damaged or PCB Repair in factory problem System...
  • Page 28: 10】Warranty

    Division 0.01g 0.05g Capacity 15kg 30kg Division 0.1g 0.1g 【10】Warranty Thank you for using our products. We shall supply good service after sales and solve your problem in time in the future. During one year warranty period, repair or at it option, replace any component(s) that proves to be defective at no charge exclude the artificial damage, in the meantime you must show the invoice and valid warranty card of product to...
  • Page 29 Version:VER-1.0 Subject to change without prior notice  ...
