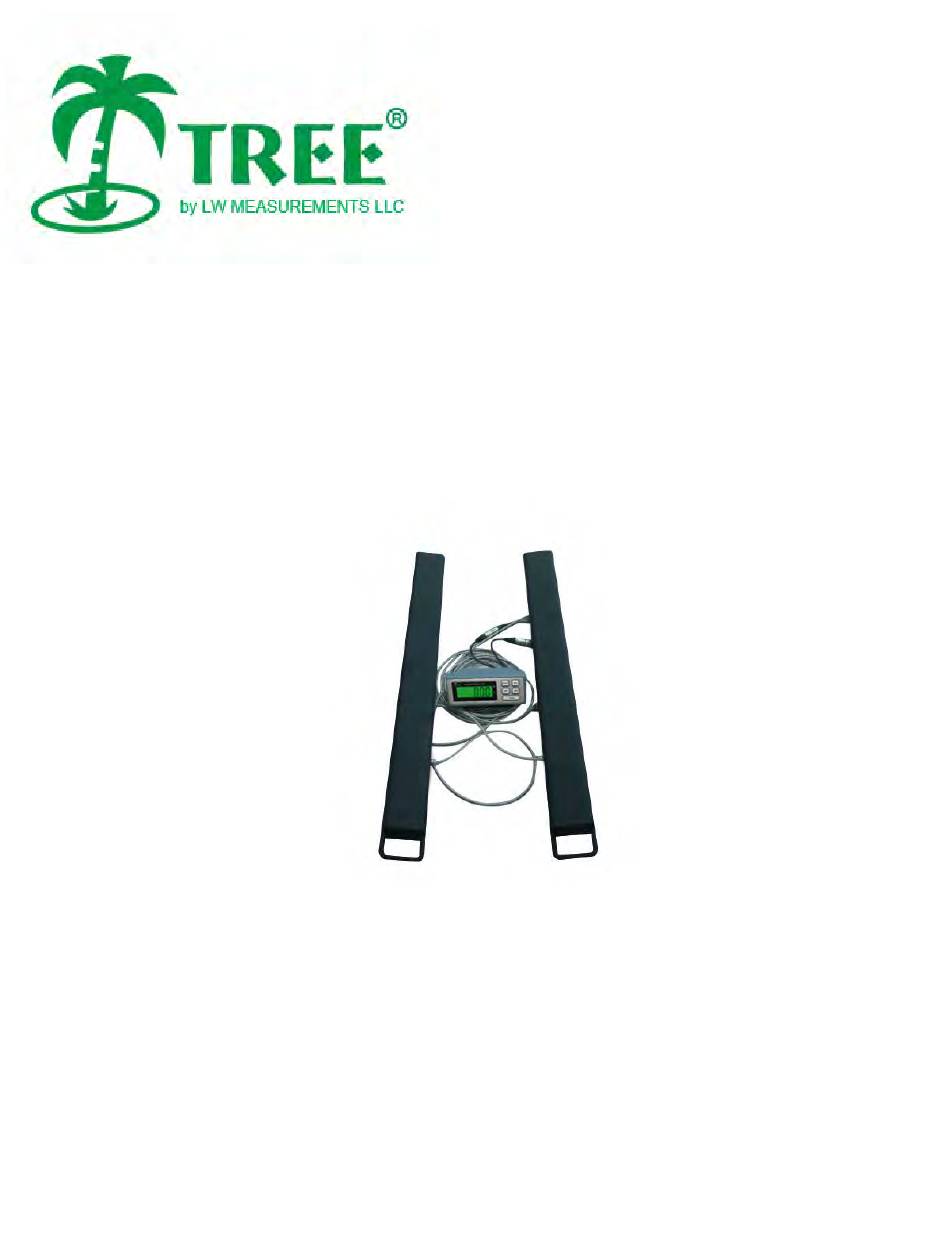

- Page 1 Professional Weighing Equipment Weigh Bars Dust and Waterproof Scale IP65 Operation Manual...
-
Page 2: Table Of Contents
Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety IP65 Protection Weight Scale Functions Features Application & Installation 9-10 Getting Started Delivery Assembly & Installation Application Menu Program Options 14-16 Calibration 16-17 Maintenance & Service Transportation & Storage Warranty... -
Page 3: Declaration Of Conformity
Imperial version WB 5000 WB 7500 WB 10000 Mark applied EU Directive Standards 2004/108/EC EN 61326-1: 2006 Signature: Boon Lim, R & D Manager Date: 14. 11. 2012 LW Measurements LLC, 620 Carlson Court, Rohnert Park CA, 94928 Rev.3 02.07.2023... -
Page 4: Customer Service
Customer Service LW Measurements LLC 620 Carlson Court Rohnert Park, CA 94928 Tel: (707) 542-2185 FAX: (707) 542-3285 http://lwmeasurements.com Introduction What you should know about these Operating Instructions: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential and the diverse possibilities of the weighing machine in your daily work. -
Page 5: Safety
Safety Representations & Symbols Important instructions, which involve safety, are highlighted with the appropriate mark: Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage. -
Page 6: Ip65 Protection
IP65 protection Your Weigh Bar weighing machine is rated to IP65. The IP rating system IP stands for Ingress Protection The rating’s first digit e.g. IP65 relates to the ingress protection against dust (6 means dust tight, see the table below) The second digit e.g. -
Page 7: Weight Scale
Weight Scale Construction & Functions The weighing scale consists of the following parts; The weighing bars (1) The indicator (2) The adapter (3) Operation manual Figure 2.1 Your weighing machine Rev.3 02.07.2023... -
Page 8: Functions
Functions The Weigh Bars are high-quality electronic precision weighing machines with the following specifications Imperial weight unit version Capacity Graduation Weighing Platform Size Model number WB 5000 5000 lb. 1 lb. 40 x 3.9 inches 1 lb. 40 x 3.9 inches WB 7500 7500 lb. -
Page 9: Features
FEATURES Selectable auto backlight Selectable auto shut-off Hold function ZERO range ( 0% - 4% of full capacity) TARE range ( 4% - 100% of full capacity) Animal weighing mode Any Cal calibration software ... - Page 10 RS232 Data interface 1. Connector: DB9 SCALE 2. Transmissions Settings Mode: Simplex Asynchronous Serial Baud Rate: 9600 Data Bit: 8 Parity Bit: None Stop Bit: 1 Data Format: ASCII 3. Transmission Information Format： 20 Byte ，blank=20H 4~13 14~18 ‘W: ’ DATA UNIT Start of Data Transmission=57H+3AH...
-
Page 11: Getting Started
Getting Started The scale is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. We suggest that you keep the original packaging in order to avoid damage if you are shipping or transporting the scale to a different location. It is also the best way to keep it in the best conditions if it will not be used for an extended period of time. -
Page 12: Assembly & Installation
Assembly & Installation The weighing machine is delivered in partly dismantled condition. Assemble the individual components in the following sequence: Place the unit holder in position. Insert the power adapter cable plug into the socket at the rear of the balance. Connecting the AC Adapter The following Safety recommendations must be observed when connecting the balance: Placement of Scale... -
Page 13: Application Menu
Step 2: Adjust the four scale feet horizontally. Application Menu Display messages: Low battery indicator Negative value indicator Zero indicator Rev.3 02.07.2023... -
Page 14: Program Options
Key Functions: The ON/OFF key is to turn the Scale On or Off The HOLD key is to store the weight value. The UNIT key is to toggle different weighing units. The ZERO key: Zero feature if load weight below 4% of full capacity; Tare feature if load weight between 4 to 100% capacity. - Page 15 Setting Backlight Press the “hold” key, then press the “On/Off” key to turn on the scale, display will show “A ON” or “A OFF”, Press the “Unit” key, display will show “L ON”, “L OFF” or “L AU”, press the “Zero” key to select back light On, Off or Au(auto). Setting power-on mode Press the “hold”...
-
Page 16: Calibration
Calibration Using an External Calibration Weight Calibration is generally required when the weighing machine is initially installed or if the weighing machine is moved to a substantial distance from the original location. 30 minutes of warming up of the scale is always needed before initial calibration. A reminder when operating our larger capacity scales: The scales of the WB series are calibrated at the factory. -
Page 17: Maintenance & Service
Maintenance & Service The weighing machine must be treated carefully and cleaned regularly. It is a precision instrument. For maintenance-work, the balance must be separated from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be reconnected to the power supply during the work by a third party. -
Page 18: Warranty
(2) years from the date of shipment for Customers in the continental United States. LW Measurements will pay for freight both ways within the first 30 days of purchase if technical support is required. (Determined by our certified Technical Support Team) In the event technical support is needed the customer is responsible for shipping the product back to us after the 30 day period has expired.
