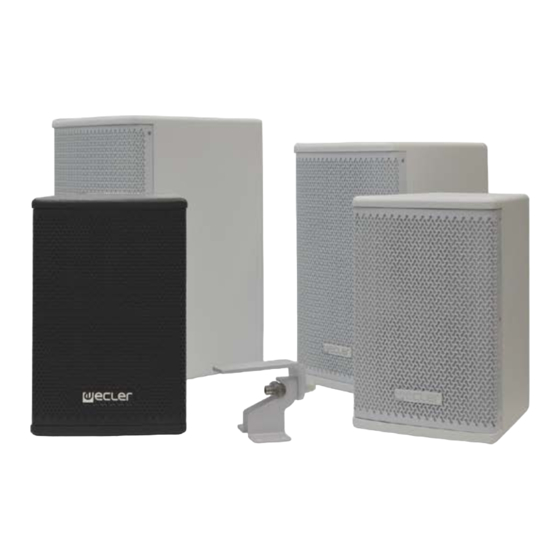

- Page 1 ARQIS Series CABINET LOUDSPEAKERS Architectural Loudspeaker Cabinets USER MANUAL...
-
Page 2: Table Of Contents
INDEX Important note Precautions Introduction Models Connections Recommended amplifier Positioning Installation Technical specifications Diagram... -
Page 3: Important Note
Congratulations! You are the owner of carefully designed and manufactured IM P O R T A NT N OT E equipment. We thank you for trusting in us and choosing our ARQIS Series loudspeaker cabinets. In order to get the optimum operation and efficiency from this unit, it is VERY IMPORTANT - before you plug anything - to read this manual very carefully and bear in mind all considerations specified within it. -
Page 4: Introduction
Based on studying installers and interior design and system integration professionals I N T R OD U C T I ON as well as on a permanent contact with them, the ARQIS line of speakers is designed for fixed installation, especially in environments in need of a compact speaker offering high output, easy installation, long-term reliability and excellent sound quality. - Page 5 • Full range, 2-way architectural loudspeaker ARQIS108 • 175 WRMS @ 8 Ω • 8" woofer • 1" compression driver (rotable) • Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection • Wall bracket included, allowing for pan & tilt adjustment, employing a single screw for fastening •...
- Page 6 • Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface • Available in black or white finish • Full range, 2-way architectural loudspeaker ARQIS110 • 220 WRMS @ 8 Ω • 10” woofer •...
-
Page 7: Connections
• 1-way surface-mount subwoofer ARQISSB10 • 150 WRMS @ 8 ohm • 10" woofer • Euroblock connector and spring loaded input terminals • LPF cut-off frequency selection: OFF/ 120Hz / 150Hz • Wall-mount hardware included • 12 x M8 cabinet flying points •... -
Page 8: Recommended Amplifier
Following table shows the output power of the amplifier adequate to each acoustic RE C O M M E N D E D A M P L I F I E R system: ARQIS 105: between 70 and 150W RMS ARQIS 106: between 120 and 250W RMS •... -
Page 9: Technical Specifications
TE C H N I C A L S P E C I F I C A TI O N S ARQIS105 ARQIS106 ARQIS108 Ways Impedance 8Ω 8Ω 8Ω RMS power 70 WRMS 120 WRMS 175 WRMS Program power 140 WRMS 240 WRMS 350 WRMS SPL 1W/1m... - Page 10 ARQIS110 ARQIS112 Ways Impedance 8Ω 8Ω RMS power 220 WRMS 340 WRMS Program power 440 WRMS 680 WRMS SPL 1W/1m 95dB 97dB Max SPL @ 1m 118dB 122dB Frequency response (±3dB) 60Hz÷18kHz 60Hz÷18kHz Cross-over frequency 3.5kHz 2.5kHz Dispersion (HxV) 90⁰x50⁰ 80⁰x40⁰...
-
Page 11: Diagram
D I A G RA M... - Page 12 All product characteristics are subject to variation due to production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166-168 08038 Barcelona - Spain - (+34) 932238403 information@ecler.es www.ecler.com...
