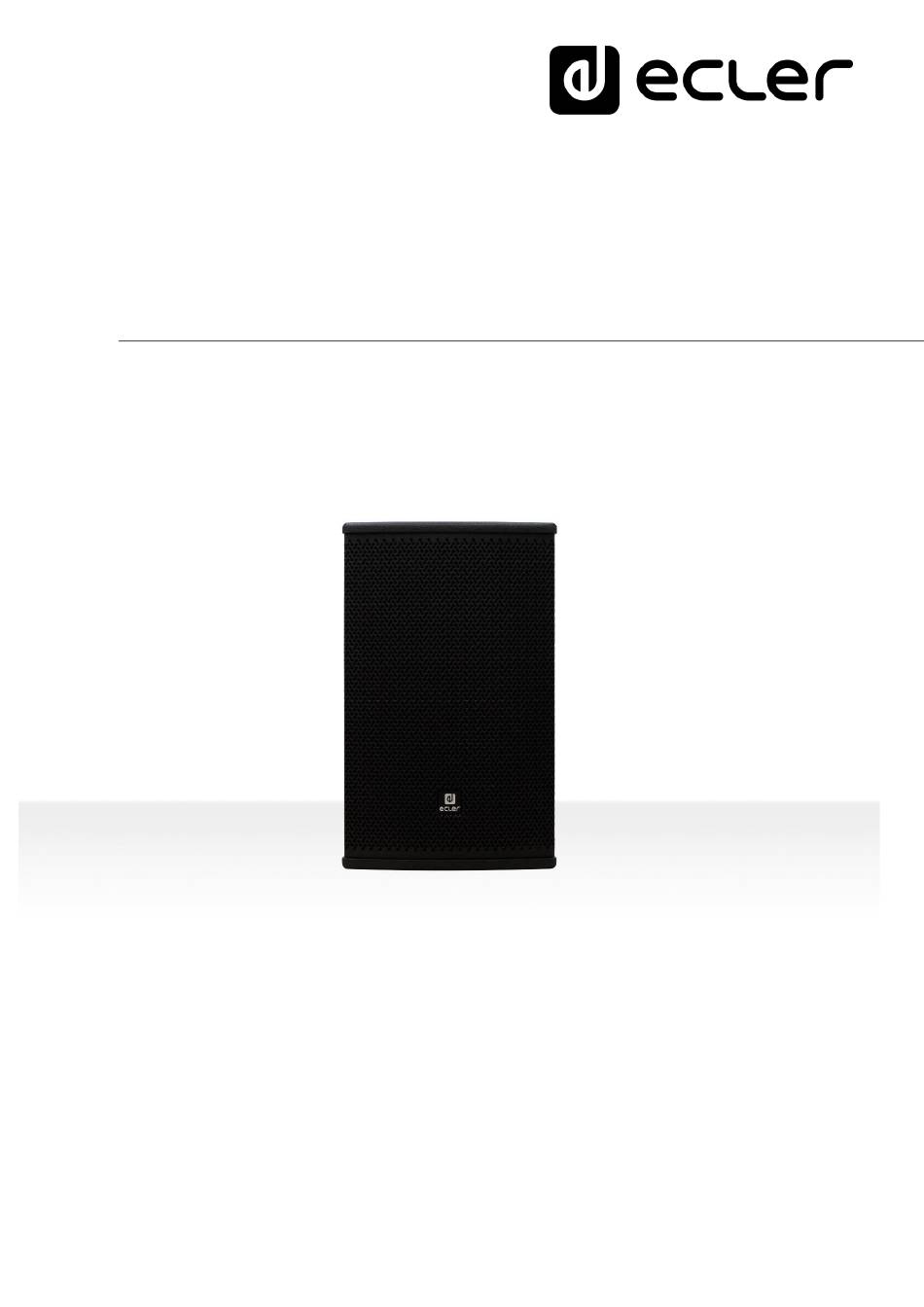

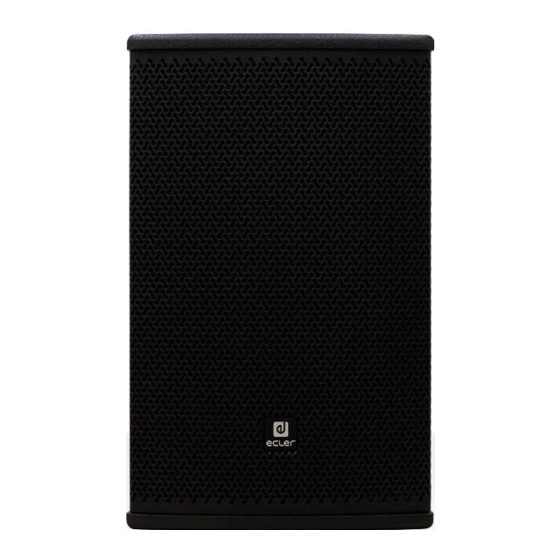

- Page 1 ARQISi Series CABINET LOUDSPEAKERS Architectural Loudspeaker Cabinets USER MANUAL 50-0410-0111 ARQISi SERIES...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................5 INTRODUCTION ........................5 MODELS ............................6 5.1. ARQIS105i ........................... 6 5.2. ARQIS106i ........................... 6 5.3. ARQIS108i ........................... 7 5.4. ARQIS205i ........................... 7 5.5. ARQIS208i ........................... 7 5.6. ARQIS110i ........................... 8 5.7. -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Important Note
To ensure optimal operation of this device, we strongly recommend that its maintenance be carried out by our authorised Technical Services. All ECLER products are covered by warranty, please refer to www.ecler.com or the warranty card included with this product for the period of validity and conditions. -
Page 6: Models
The ARQISi series is ideal for shopping centres, sports centres, theatres/auditoriums, conference rooms, audio-visual presentations, corporate rooms, perimeter reinforcement in clubs, cafés, restaurants and theme parks among other solutions. MODELS 5.1. ARQIS105i • Full range, 2-way architectural loudspeaker • 70 WRMS @ 8 Ω •... -
Page 7: Arqis108I
5.3. ARQIS108i • Full range, 2-way architectural loudspeaker • 150 WRMS @ 8 Ω • 8" woofer • 1" compression driver (rotable) • Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection • VEASY Wall bracket included, allowing for pan & tilt adjustment, employing a single screw for fastening. -
Page 8: Arqis110I
5.6. ARQIS110i • Full range, 2-way architectural loudspeaker • 300 WRMS @ 8 Ω • 10” woofer • 1.7" compression driver (rotable) • Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection • 35 mm mount socket, compatible with SR12 wall bracket (not included) & TRIPO1 floor stand (not included) •... -
Page 9: Arqissb10I
5.9. ARQISSB10i • 1-way surface-mount subwoofer • 150 WRMS @ 8 ohm • 10" woofer • Euroblock connector and spring loaded input terminals • LPF cut-off frequency selection: OFF/ 120Hz / 150Hz • Wall-mount hardware included • 12 x M8 cabinet flying points •... -
Page 10: Connections
CONNECTIONS The connection cables which connect the amplifiers output and the speaker should be of good quality, have sufficient conductor area and be as short as possible. The latter fact is especially important when the distance is long and the load impedance low (4-8 Ω). A cross-section of at least 2.5mm2 is recommended for distances up to 10m;... -
Page 11: Eq Settings
70 V/100 V network, in the 8 Ω position, it will be seriously damaged. EQ SETTINGS Download the Ecler Loudspeakers EQ Settings file for ARQIS105i, ARQIS106i, ARQIS108i, ARQIS110i, ARQIS112i, ARQIS205i and ARQIS208i, ready to import in EclerNet Manager software. -
Page 12: Positioning
POSITIONING Consider following general rules: Place the speakers on a solid and firm surface. Subwoofers placed directly and horizontally on the ground have a higher output than hanged or directly on the floor, but vertically. No obstacles should stand between the enclosures and the audience. The high frequencies are very directive compared to the low frequencies, so that any obstacle will impair their response. -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS ARQIS105i ARQIS106i ARQIS108i Effective Freq. Range 65 Hz - 20 kHz 80 Hz - 20 kHz 75 Hz - 20 kHz 130°x130° (HxV) Coverage angle 150°x130° (HxV) 140°x160° (HxV) 150W RMS / 600W Peak Power handling 70W RMS / 280W Peak 120W RMS / 480W Peak 90dB (1W/1m) Sensitivity... - Page 14 ARQIS205i ARQIS208i Effective Freq. Range 78Hz-20kHz 73Hz-20kHz Coverage angle 150° x 40° (HxV) 130° x 30° (HxV) Power handling 140W RMS / 560W peak 300W RMS / 1200W peak Sensitivity 90dB (1W/1m) 94dB (1W/1m) 111dB continuous / 117dB Maximum SPL 119dB RMS / 125dB peak peak Recommended amplifier...
- Page 15 ARQIS110i ARQIS112i Effective Freq. Range 70 Hz - 19 kHz (-10dB) 70 Hz - 19 kHz (-10dB) Coverage angle 110°x110° (HxV) 120°x110° (HxV) Power handling 300W RMS / 1200W Peak 500W RMS / 2000W Peak 94dB (1W/1m) 96dB (1W/1m) Sensitivity 119dB continuous / 125dB 123dB continuous / 129dB Maximum SPL...
- Page 16 ARQISSB6Ti ARQISSB10i Effective Freq. Range 50Hz-1,5kHz 54Hz-4kHz Power handling 120W RMS / 480W peak 150W RMS / 600W peak Sensitivity 86dB (1W/1m) 92dB (1W/1m) 107dB RMS / 113dB peak 114dB RMS / 120dB peak Maximum SPL 250W RMS 300W Recommended amplifier Subwoofer Subwoofer Ways...
- Page 17 ARQISSB12i ARQISSB15i Effective Freq. Range 44Hz-4kHz 31Hz-3kHz Power handling 300W RMS / 1200W peak 600W RMS / 2400W peak Sensitivity 95dB (1W/1m) 97dB (1W/1m) Maximum SPL 120dB RMS / 126dB peak 125dB RMS / 131dB peak Recommended amplifier 600W 1200W Ways 1 way 1 way...
-
Page 18: Installation Diagrams
INSTALLATION DIAGRAMS Mounting the VEASY wall bracket (ARQIS105i, ARQIS106I, ARQIS108i) - Page 20 Example of horizontal and vertical installation using the included flying points or the U-bracket (included in 205i, 208i and SB6Ti models, optional for 108i, 110i and 112i models),...
-
Page 21: Contents Of The Packaging
CONTENTS OF THE PACKAGING 13.1. ARQIS105i • 1 x ARQIS105i loudspeaker • 1 x VEASY wall bracket with vertical and horizontal adjustment (VESA compatible) • 1 x Allen key 3mm • 1 x Allen key 4mm • 1 x Allen key 6mm •... -
Page 22: Arqis205I
13.4. ARQIS205i • 1 x ARQIS205i loudspeaker • 1 x U-shaped wall/ceiling bracket • 1 x metal safety handle • 1 x Allen key 5mm • 1 x Allen key 6mm • 2 x screws • 2 x washers • 2 x rubber washers •... -
Page 23: Arqis110I
13.6. ARQIS110i • 1 x ARQIS110i loudspeaker • 4 x screws • 4 x rubber feet • 1 x Euroblock • Quick user guide • Warranty card 13.7. ARQIS112i • 1 x ARQIS112i loudspeaker • 4 x screws • 4 x rubber feet •... -
Page 24: Arqissb10I
13.9. ARQISSB10i • 1 x ARQISSB10i loudspeaker • 1 x wall mounting bracket • 4 x screws • 4 x rubber feet • 1 x Euroblock • Quick user guide • Warranty card 13.10. ARQISSB12i • 1 x ARQISSB12i loudspeaker •... - Page 25 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
