SC3000X Series Vision Sensor Quick Start Guide
Note
Refer to the device's datasheet for the dimension of the right angle rotation structure.
3. Use M3 screws to fix the installation bracket to the device, as shown below.
4. Install the device to the installation location via the bracket.
5.3 Wire Device
After installing the device, you should connect the device to a network cable for image
debugging and data communication, and connect the device to a power and I/O cable for
power supply.
Steps
1. Use the supplied M12 network cable to connect the device's network interface.
Note
The 8-pin M12 connector has screw thread, and it is recommended to tighten the connector
before using the device to reduce looseness due to the vibration on-site.
2. Insert the RJ45 port of the supplied M12 network cable to the PC.
3. Use the supplied power and I/O cable to connect the device's 12-pin connector.

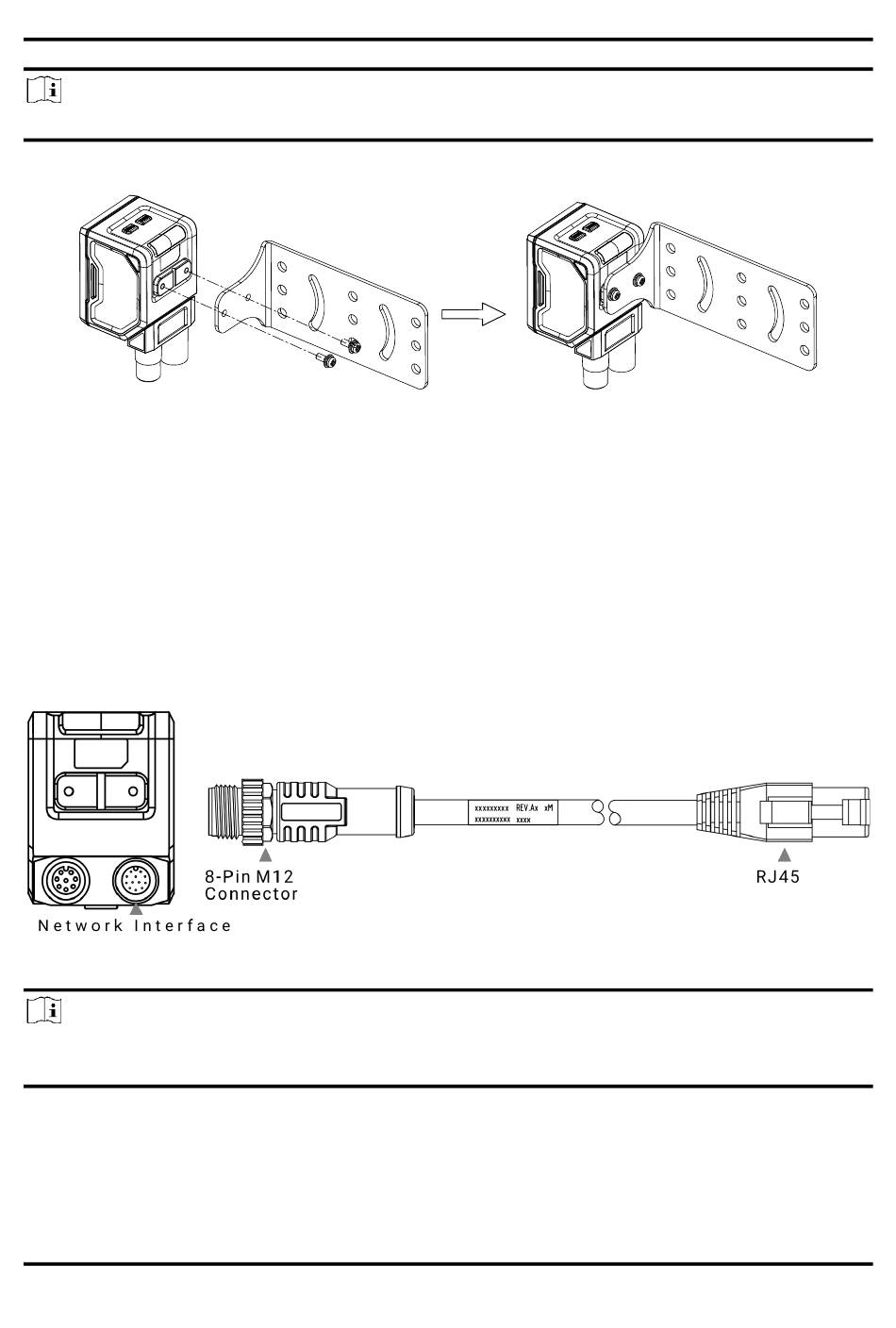

Figure 5-2 Fix Installation Bracket
Figure 5-3 Connect Device's Network Interface
12
