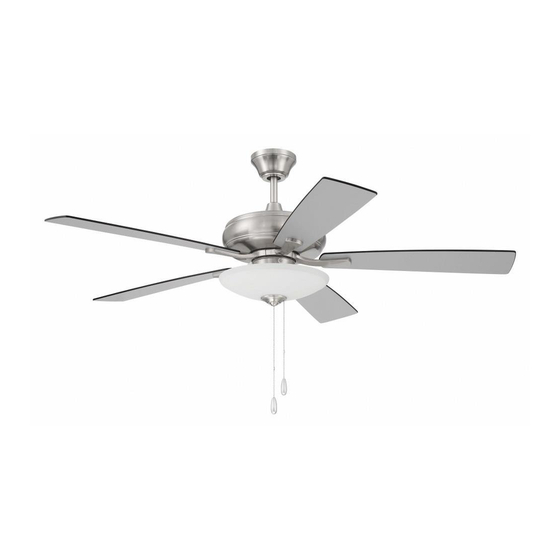

Craftmade Eos ECF111 Installation Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Eos

Installation Guide

For Model:

ECF111

4007498

net weight of fan: 15.12 lb (6.86 kg)

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the Eos ECF111 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Eos ECF111

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide Table of Contents: For Model: Safety Tips. pg. 2 ECF111 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly. pgs. 5 - 6 Wiring.
Page 2: Safety Tips
Do not use detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning. Distributed by: Craftmade, 3901 S. 20 Avenue, DFW Airport, TX, 75261; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.
Page 4: Installation Preparation
3. Installation Preparation. blade edge inches To prevent personal injury and damage, ensure 7 feet (76cm) that the hanging location allows the blades a (2.13m) clearance of 7 ft. (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. 12ft.
Page 5: Fan Assembly. Pgs
5. Fan Assembly. set screw Remove hanging ball from downrod provided stop pin by loosening set screw on hanging ball. Remove pin and clip. Lower hanging ball and remove stop pin. Then slide hanging ball off downrod. [Refer to diagram 1.] hanging ball Loosen yoke set screws and nut at top of motor clip...
Page 6: Wiring
5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.
Page 7: Canopy Assembly
7. Canopy Assembly. hanging Locate 2 screws on underside of hanging bracket bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded screw part of slotted hole in canopy over loosened screw in hanging bracket and push up.
Page 8: Light Kit Assembly (Optional). Pgs
fitter plate 9. Light Kit Assembly (Optional). diagram 1 Remove 3 screws from outer edge of fitter plate. Save motor screws for later use. [Refer to diagram 1.] housing Remove 1 screw from motor plate on underside of motor housing and partially loosen the other 2 screws.
Page 9: Testing Your Fan
9. Light Kit Assembly (Optional). (cont.) motor Install three 5 watt candelabra base LED bulbs housing (included). IMPORTANT: When replacing bulbs, please allow bulbs and shade to cool down before touching. reverse Remove finial, finial plate, hex nut, flat washer and light kit fitter switch both small and large rubber washers from threaded...
Page 10: Troubleshooting
WARNING: Failure to disconnect power supply CRAFTMADE LIMITED LIFETIME WARRANTY: prior to troubleshooting any wiring issues may CRAFTMADE warrants this fan for use as intended under the following provision: CRAFTMADE will result in serious injury. replace any fan which has faulty performance due to a defect in material or workmanship or fails to operate Problem: Fan fails to operate.
