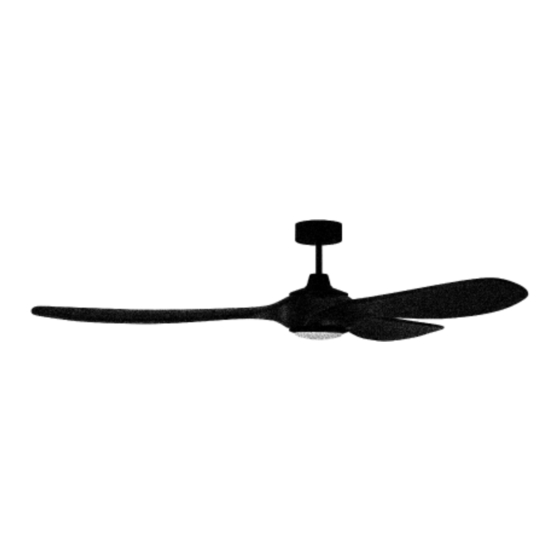

Envy
Installation Guide
For Model:
EVY72
WARNING:
DC Motor will not
operate until blades
are installed
3170356
APPROVED FOR USE
IN DAMP LOCATIONS
net weight of fan: 17.42 lb (7.9 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 7
Warranty. pg. 14
page 1
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Envy EVY72 and is the answer not in the manual?

Questions and answers

Related Manuals for Craftmade Envy EVY72

Summary of Contents for Craftmade Envy EVY72

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Envy Installation Guide For Model: EVY72 Table of Contents: Safety Tips. pg. 3 Unpacking Your Fan. pg. 4 Parts Inventory. pg. 4 Installation Preparation. pg. 5 WARNING: Hanging Bracket Installation. pg. 5 DC Motor will not Fan Assembly.
  • Page 2 Activating Your New Smart Fan; Downloading the Bond Home App • Using your smart device, navigate to the application store (Apple App store or Google Play), download the free Bond Home app and create account. • Ensure the fan and receiver are receiving power from the house supply using the remote control to turn the fan and light ON and OFF.

  • Page 3: Safety Tips

    (2) this LED light kit must accept any interference received, including interference that may cause undesired operation. Distributed by: Craftmade, 650 S. Royal Lane, Coppell, TX, 75019; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.

  • Page 4: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

  • Page 5: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches that the hanging location allows the blades a 7 feet (76cm) (2.13m) clearance of 7 feet (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 12ft - 20ft (3.66m - 6.1m)

  • Page 6: Fan Assembly. Pgs

    stop pin 5. Fan Assembly. Remove hanging ball from downrod provided by set screw loosening set screw on hanging ball. Lower hanging ball and remove stop pin and then slide hanging hanging ball ball off of the downrod. [Refer to diagram 1.] Loosen yoke set screws and nuts at top of motor diagram 1 housing.

  • Page 7: Wiring

    5. Fan Assembly. (cont.) wood ceiling joist With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your safety cable loop fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.

  • Page 8: Canopy Assembly

    7. Canopy Assembly. hanging Locate 2 screws on underside of hanging bracket bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging bracket and push up.

  • Page 9: Led Light Kit Assembly

    9. LED Light Kit Assembly. Remove 1 screw from motor plate on underside of motor housing motor housing and partially loosen the other 2 screws. Align slotted holes in fitter plate with loosened screws in motor plate, allowing molex connections from motor housing to come through holes in middle of fitter plate.

  • Page 10: Automated Learning Process./Activating Code

    10. Automated Learning Process./Activating Code. CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not REMOTE CONTROL desired, turn wall switch off to any other TRANSMITTER (back) programmable receiver or fan. Remove battery cover on back side of remote control transmitter.

  • Page 11: Remote Control Operation

    11. Remote Control Operation REMOTE CONTROL TRANSMITTER I I I Fan SPEED buttons--1: Use to control ceiling fan speeds 1-6 Fan OFF button--2: Use to turn the fan off REVERSE function button--3: Use to control direction of fan rotation LIGHTING button--4: Use to control light IMPORTANT : The Automated Learning Process takes approximately 5 minutes to complete.

  • Page 12: Smart Ceiling Fan Wi-Fi Control

    12. Smart Ceiling Fan Wi-Fi Control (Optional) Without Wi-Fi activation, you will not enjoy the expanded features and functionality of your ceiling fan: Breeze speed setting, Creating Schedules and Voice Activation. To enjoy all the potential of your new device, refer to the following steps to complete Smart setup.

  • Page 13: Testing Your Fan

    13. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and wall switch (if applicable). Test fan speeds with the different fan speed buttons (I - VI) on remote control transmitter. Test the light ON/OFF function by pressing the button.

  • Page 14: Troubleshooting

    Service at 1-800-486-4892 to arrange for return of fan. 2. Check to be sure fan is wired properly. Return fan, shipping prepaid, to Craftmade. We will repair 3. Learning process between fan and remote or ship you a replacement fan, and we will pay the return control transmitter may not have been successful shipping cost.
